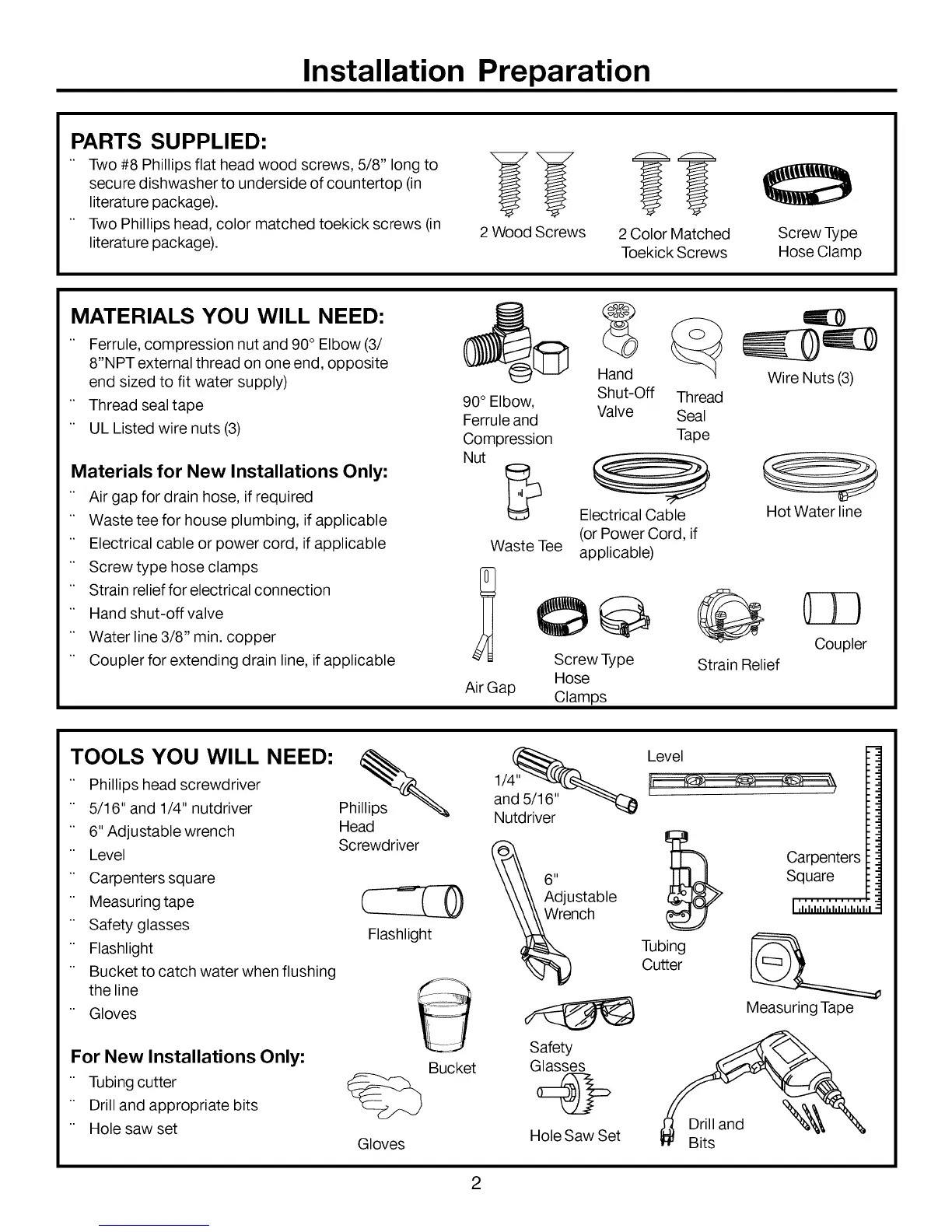

Installation Preparation
PARTS SUPPLIED:
Two #8 Phillips flat head wood screws, 5/8" long to
secure dishwasher to underside of countertop (in
literature package).
Two Phillips head, color matched toekick screws (in
literature package).
2 Wood Screws
?Y
2 Color Matched
Toekick Screws
Screw Type
Hose Clamp
MATERIALS YOU WILL NEED:
Ferrule, compression nut and 90° Elbow (3/
8"NPT external thread on one end, opposite
end sized to fit water supply)
Thread seal tape
UL Listed wire nuts (3)
Materials for New Installations Only:
Air gap for drain hose, if required
Waste tee for house plumbing, if applicable
Electrical cable or power cord, if applicable
Screw type hose clamps
Strain relief for electrical connection
Hand shut-off valve
Water line 3/8" min. copper
Coupler for extending drain line, if applicable
90° Elbow,
Ferrule and
Compression
Nut
Waste Tee
Air Gap
Hand
Shut-Off Thread
Valve Seal
Tape
Electrical Cable
(or Power Cord, if
applicable)
Screw Type
Hose
Clamps
Wire Nuts (3)
Hot Water line
CD
Coupler
Strain Relief
TOOLS YOU WILL NEED:
Phillips head screwdriver
5/16" and 1/4" nutdriver
6" Adjustable wrench
Level
Carpenters square
Measuring tape
Safety glasses
Flashlight
Bucket to catch water when flushing
the line
Gloves
For New Installations Only:
Tubing cutter
Drill and appropriate bits
Hole saw set
Phi
Head
Screwdriver
Flashlight
Bucket
Gloves
1/4"
and 5/16"
Nutdriver
6"diusta ,e
nch
Safety
Glasses
Hole Saw Set
Level
Carpenters
Square
I;,;,;,;,;,;,;,;,;,;,;,:,
Tubing
Cutter
Measuring Tape
