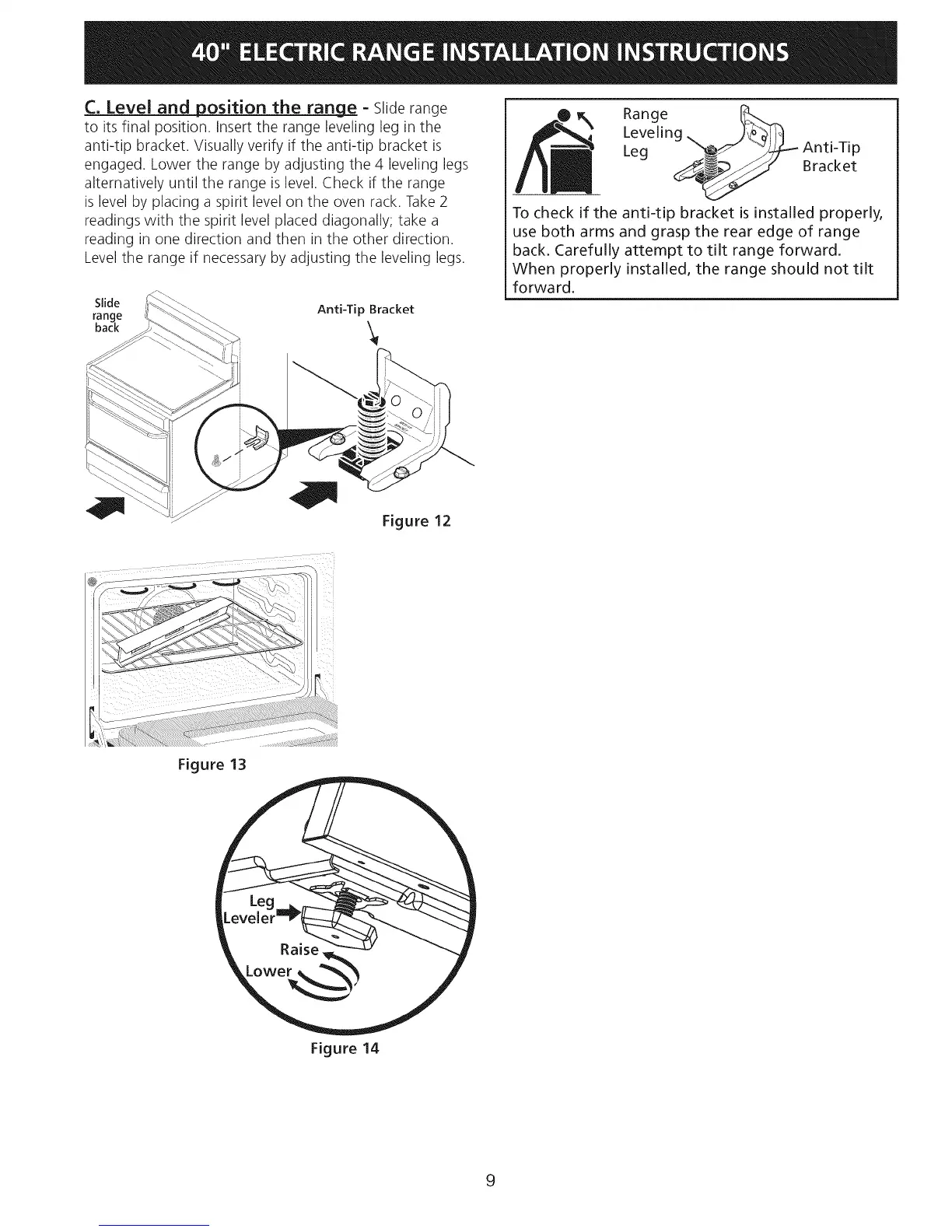

C. Level and position the rang_e_ - Slide range
to its final position. Insert the range leveling leg in the
anti-tip bracket. Visually verify if the anti-tip bracket is
engaged. Lower the range by adjusting the 4 leveling legs
alternatively until the range is level. Check if the range
is level by placing a spirit level on the oven rack. Take 2
readings with the spirit level placed diagonally; take a
reading in one direction and then in the other direction.
Level the range if necessary by adjusting the leveling legs.
Slide Anti-Tip Bracket
range
back
Range _.._
Leveling
Leg "_ Anti-Tip
__ Bracket
To check if the anti-tip bracket isinstalled properly,
use both arms and grasp the rear edge of range
back. Carefully attempt to tilt range forward.
When properly installed, the range should not tilt
forward.
Figure 12
Figure 13
Figure 14
9
