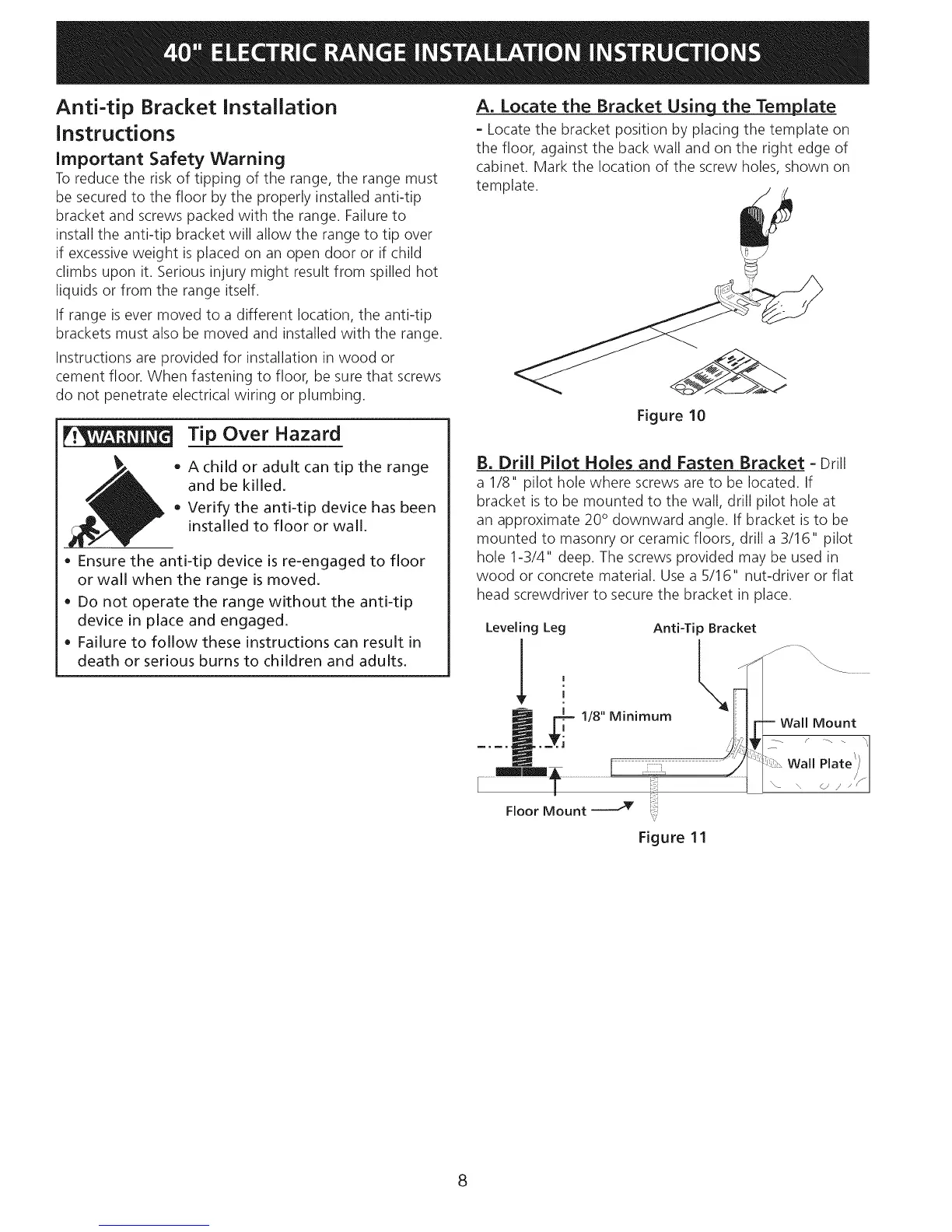

Anti-tip Bracket Installation
instructions
Important Safety Warning
To reduce the risk of tipping of the range, the range must
be secured to the floor by the properly installed anti-tip
bracket and screws packed with the range. Failure to
install the anti-tip bracket will allow the range to tip over
if excessiveweight is placed on an open door or if child
climbs upon it. Serious injury might result from spilled hot
liquids or from the range itself.
If range is ever moved to a different location, the anti-tip
brackets must also be moved and installed with the range.
Instructions are provided for installation in wood or
cement floor. When fastening to floor, be sure that screws
do not penetrate electrical wiring or plumbing.
Tip Over Hazard
• Achild or adult can tip the range
and be killed.
• Verify the anti-tip device has been
installed to floor or wall.
• Ensure the anti-tip device is re-engaged to floor
or wall when the range is moved.
Do not operate the range without the anti-tip
device in place and engaged.
Failure to follow these instructions can result in
death or serious burns to children and adults.
A. Locate the Bracket Using the Template
- Locate the bracket position by placing the template on
the floor, against the back wall and on the right edge of
cabinet. Mark the location of the screw holes, shown on
template.
Figure 10
B. Drill Pilot Holes and Fasten Bracket - Drill
a 1/8" pilot hole where screws are to be located. If
bracket isto be mounted to the wall, drill pilot hole at
an approximate 20° downward angle. If bracket is to be
mounted to masonry or ceramic floors, drill a 3/16" pilot
hole 1-3/4" deep. The screws provided may be used in
wood or concrete material. Use a 5/16" nut-driver or flat
head screwdriver to secure the bracket in place.
Leveling Leg Anti-Tip Bracket
........................................... Wall Plat:
Floor Mount _ ":_;
v
Figure 11
8
To Next Page
