B-1
Cycle Selection Options
LIGHT (UPPER)
NORMAL WASH
LIGHT (BOTH)
CYCLES
POTS & PANS
LIGHT (LOWER)
CHINA/CRYSTAL
RINSE HOLD
CLEAN
DRYING
RINSING
WASHING
SENSING
LED
Color Code
BK......................... Black
BK-W...........Black/White
BU............................Blue
PK............................Pink
R...............................Red
R-BK...............Red/Black
R-Y................Red/Yellow
VIO.........................Violet
W...........................White
W-BK...........White/Black
:LULQJ'LDJUDP
'LVSOD\&R GHV/('
No sensing for LIGHT WASH (UPPER RACK), LIGHT WASH (LOWER RACK) and CHINA/CRYSTAL.
----------------------Wash portion of cycle.
----------------------- Rinsing portion of cycle.
------------------------Drying portion of cycle.
-- HI-TEMP WASH and NO HEAT DRY/POWER DRY OFF LED's flashing indicates power failure has
occurred. Press START/CANCEL pad and reselect desired options and cycle.
-- The STATUS LED's that are lit when the door is opened will flash. Close door.
Operation
PUMP MOTOR
THE RMIS TOR
10000 OHMS
@ 25 C
DRAIN MOTOR
28 OHMS
VIO
120VAC
60HZ
MEMBRANE SWITCH
ELECTRONIC
CONTROL
BOARD
*SOME MODELS
P6
P9
*
BU
W
DISPENSER
1928 OHMS
R-YW
P3- 1
W
W
R-BK
*BLOWER
214 OHMS
W
P3- 2
VENT SYSTEM
1893 OHMS
HEATER
9.28 OHMS
W
HI-LIMIT
THERMOSTAT
*TURBIDITY
SENS OR
R
P5
WATER VALVE
699 OHMS
FLOAT
SWITCH
PK
P3- 3
W
Y
Y
P1- 4
P1- 3
*RINSE AID
LEVEL SENSE
BK
BK
P4- 2
P4- 1
P7
P10
P3-5
DOOR
SWITCH
W
NEUT W
L1 BK
BK
BK
P1-1
P8
R
P2-1
W
P2-2
BK
P2-3
W
OUTPUTS
TURBIDITY SENSE
DISPENSERS
HEATE R
DRAIN MOTOR
DRY SYSTEM
PUMP MOTOR
WATER VALVE

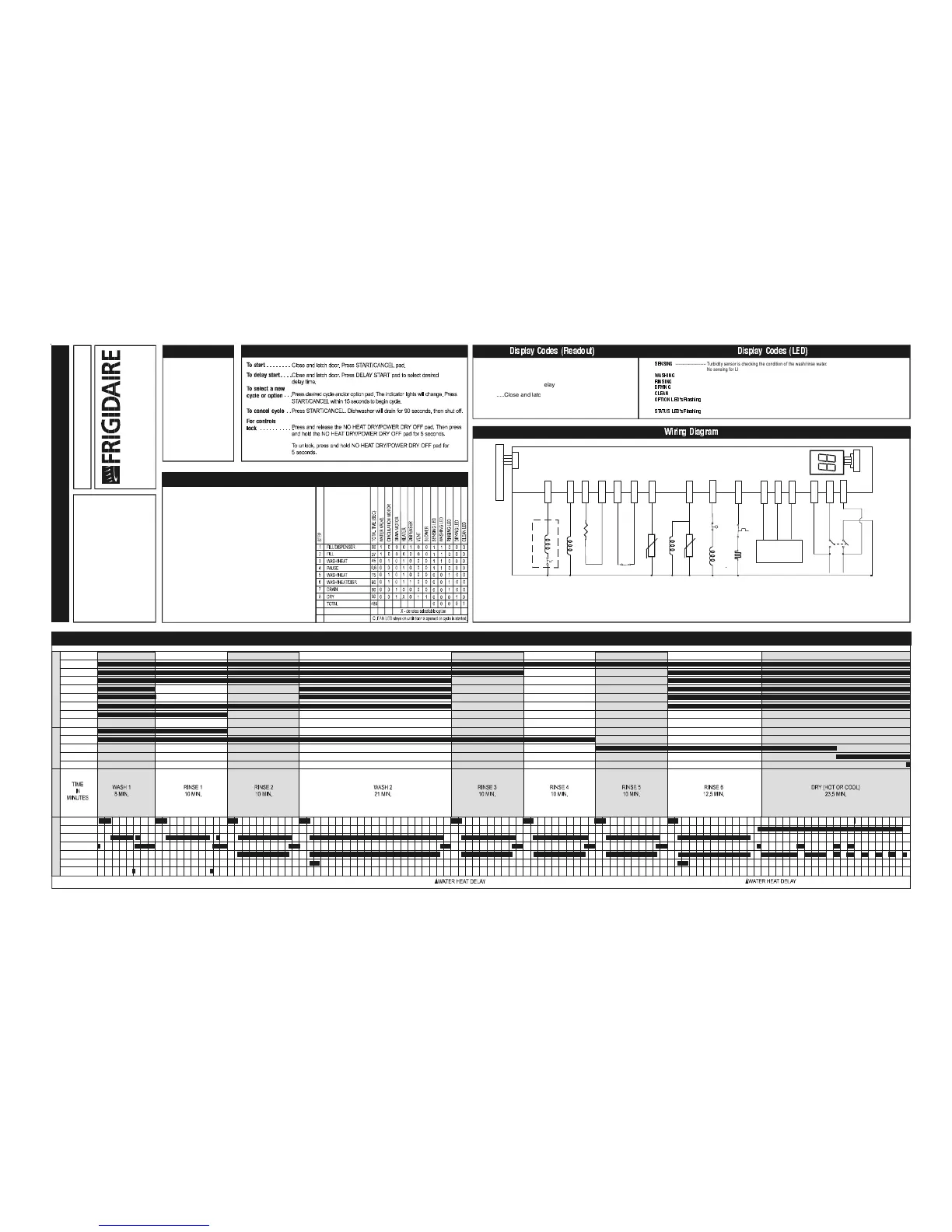

SERVICE DATA SHEET
P/N: 154371501
Electronic Series
'LVSOD \&RGHV5HDGRXW
LO
PF
HO
CL
'01-09'
....Low li
uid in the rinse aid dispenser
.....A power failure has occurred
....Water heating delay
.....Close and latch the door
....Hour(s) delay before start
This information is intended for use
by persons having electrical and
mechanical training and a level of
knowledge of these subjects
generally considered acceptable in
the appliance repair trade. Frigidaire
Company cannot be responsible, nor
assume any liability, for injury or
damage of any kind arising from the
use of this Service Data Sheet.
The water/service test is a special function
initiated from the power failure mode or idle
mode.
While in power failure mode
While in idle mode
- simul taneously
press the NO HEAT DRY/POWER DRY OFF and
START/CANCEL pads for 1 1/2 seconds.
The dishwasher will then step through the test
cycle per the chart. Pushing the START/CANCEL
pad will advance the dishwasher to the next step.
- simultaneously press
HI-TEMP WASH & START/CANCEL pads for
1 1/2 seconds.
Water/Service Test
