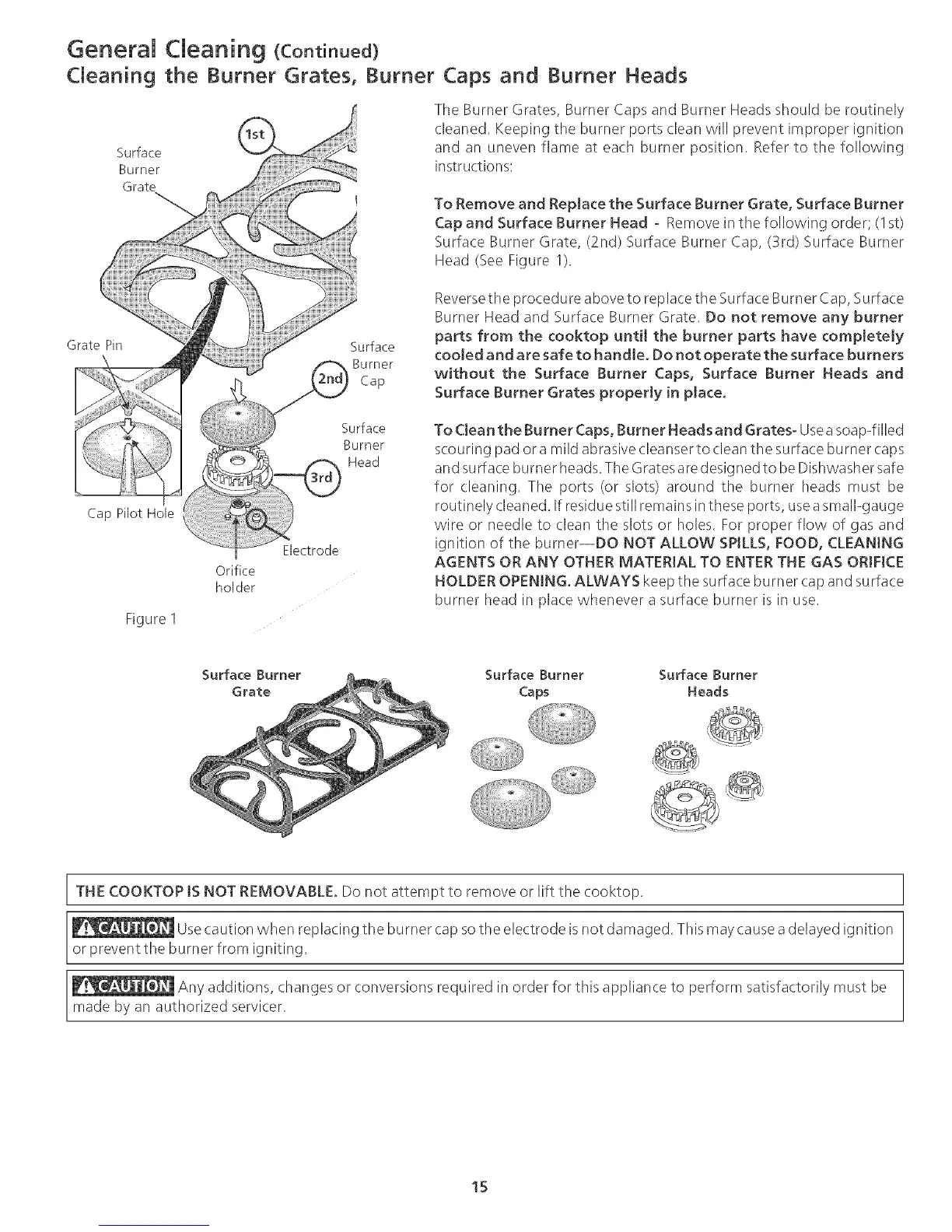

Cleaning the Burner Grates, Burner Caps and Burner Heads
Surface
Burner
Grate
The Burner Grates, Burner Caps and Burner Heads should be routinely
cleaned. Keeping the burner ports clean will prevent improper ignition
and an uneven flame at each burner position. Refer to the following
instructions:
To Remove and Replace the Surface Burner Grate, Surface Burner
Cap and Surface Burner Head - Remove in the following order; (1st)
Surface Burner Grate, (2nd) Surface Burner Cap, (3rd) Surface Burner
Head (See Figure 1).
Grate Pin
Surface
Burner
Cap
Reversethe procedu reabove to replace the Surface Burner Cap, Surface
Burner Head and Surface Burner Grate. Do not remove any burner
parts from the cooktop until the burner parts have completely
cooled and are safe to handle. Do not operate the surface burners
without the Surface Burner Caps, Surface Burner Heads and
Surface Burner Grates properly in place.
Cap Pilot Hole
Figure 1
Electrode
Orifice
holder
Surface
Burner
Head
To Clean the Burner Caps, Burner Heads and Grates- Usea soap-filled
scouring pad or a mild abrasive cleanser to clean the surface burner caps
and surface burner heads.The Grates aredesigned to be Dishwasher safe
for cleaning. Tile ports (or slots) around the burner heads must be
routinely cleaned. If residue still remains inthese ports, use asmall-gauge
wire or needle to clean the slots or holes. For proper flow of gas and
ignition of the burner--DO NOT ALLOW SPILLS, FOOD, CLEANING
AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE
HOLDER OPENING. ALWAYS keep the surface burner cap and surface
burner head in place whenever a surface burner is in tJse.
Surface Burner Surface Burner Surface Burner
Grate Caps Heads
THE COOKTOP tS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.
Usecaution when replacing the burner cap sothe electrode is not damaged. This may cause adelayed ignition
or prevent tile burner from igniting.
Any additions, changes or conversions required in order for this appliance to perform satisfactorily must be
made by an authorized servicer.
