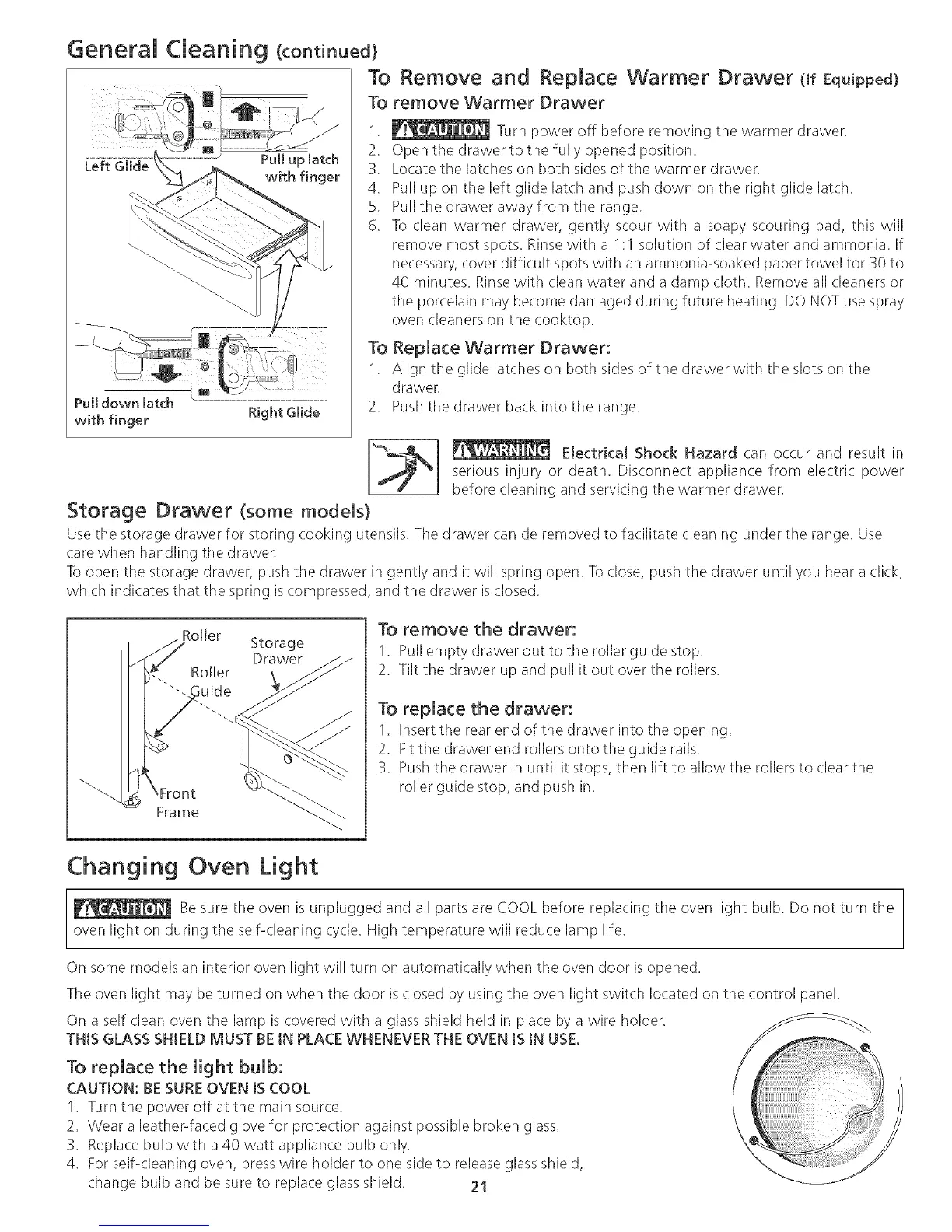

Genera[ Cleaning (continued)
Left Glide Pull up latch
with finger
To Remove and Replace Warmer Drawer (_fEquipped)
To remove Warmer Drawer
1. _ Turn power off before removing the warmer drawer.
2. Open the drawer to the fully opened position.
3. Locate the latches on both sides of the warmer drawer.
4. Pull up on the left glide latch and push down on tile right glide latch.
5. Pull the drawer away from the range.
6. To clean warmer drawer, gently scour with a soapy scouring pad, this will
remove most spots. Rinsewith a 1:1 solution of clear water and ammonia. If
necessary,cover difficult spots with an ammonia-soaked paper towel for 30 to
40 minutes. Rinsewith (:lean water and a damp cloth. Remove all cleaners or
the porcelain may become damaged during future heating. DQ NOT usespray
oven cleaners on the cooktop.
TO Replace Warmer Drawer:
1. Align the glide latches on both sides of tile drawer with the slots on the
drawer.
2. Pushthe drawer back into the range.
Pull down latch
with finger Right Glide
Storage Drawer (some models)
Electrical Shock Hazard (:an occur and result in
serious iniury or death. Disconnect appliance from electric power
before cleaning and servicing the warmer drawer.
Usethe storage drawer for storing cooking utensils. Tile drawer can de removed to facilitate cleaning under the range. Use
care when handling tile drawer.
Toopen the storage drawer, push the drawer in gently and it will spring open. To close, push the drawer until you hear a click,
which indicates that the spring is compressed, and the drawer isclosed.
i..._ RoJ[er
._ Roller
kFront
Frame
Storage
Drawer
To remove the drawer:
1. Pull empty drawer out to the roller guide stop.
2. Tilt the drawer up and pull it out over the rollers.
To replace the drawer:
1. Insert the rear end of tile drawer into the opening.
2. Fit the drawer end rollers onto the guide rails.
3. Push the drawer in until it stops, then lift to allow the rollers to clear the
roller guide stop, and push in.
Changing Oven Light
Be sure the oven is unplugged and all parts are COOL before replacing the oven light bulb. Do not turn the
oven light on during the self<leaning cycle. High temperature will reduce lamp life.
On some models an interior oven light will turn on automatically when the oven door is opened.
Tile oven light may be turned on when the door is closed by using the oven light switch located on the control panel.
On a self clean oven tile lamp is covered with a glass shield held in place by a wire holder.
THIS GLASS SHIELD MUST BE [N PLACE WHENEVER THE OVEN tS tN USE.
To replace the light bulb:
CAUTION: BE SUREOVEN IS COOL
1. Turn the power off at the main source.
2. Wear a leather-faced glove for protection against possible broken glass.
3. Replace bulb with a 40 watt appliance bulb only.
4. For self<leaning oven, presswire holder to one side to release glass shield,
change bulb and be sure to replace glass shield. 21
