FROG Leap Twin - Base Flex-Hose Installation

7
TOOLS NEEDED
Screwdriver
Pipe Wrench
MATERIALS NEEDED
Pipe Thread
Tape
or Sealant
Two hose adapters
1½” x 1½” x 1¼”
Two Sections of 1½” or
1¼” Flex Hose
Two
Hose
Clamps
RECOMMENDED
4-8 psi Back Pressure
To avoid over or under
chlorination, replace eyeball
ttings in the return jets to a
smaller or larger size to adjust
back pressure. For best results
use King Technology’s pressure
gauge, order part number
01-22-4000.
Base Flex-Hose Installation

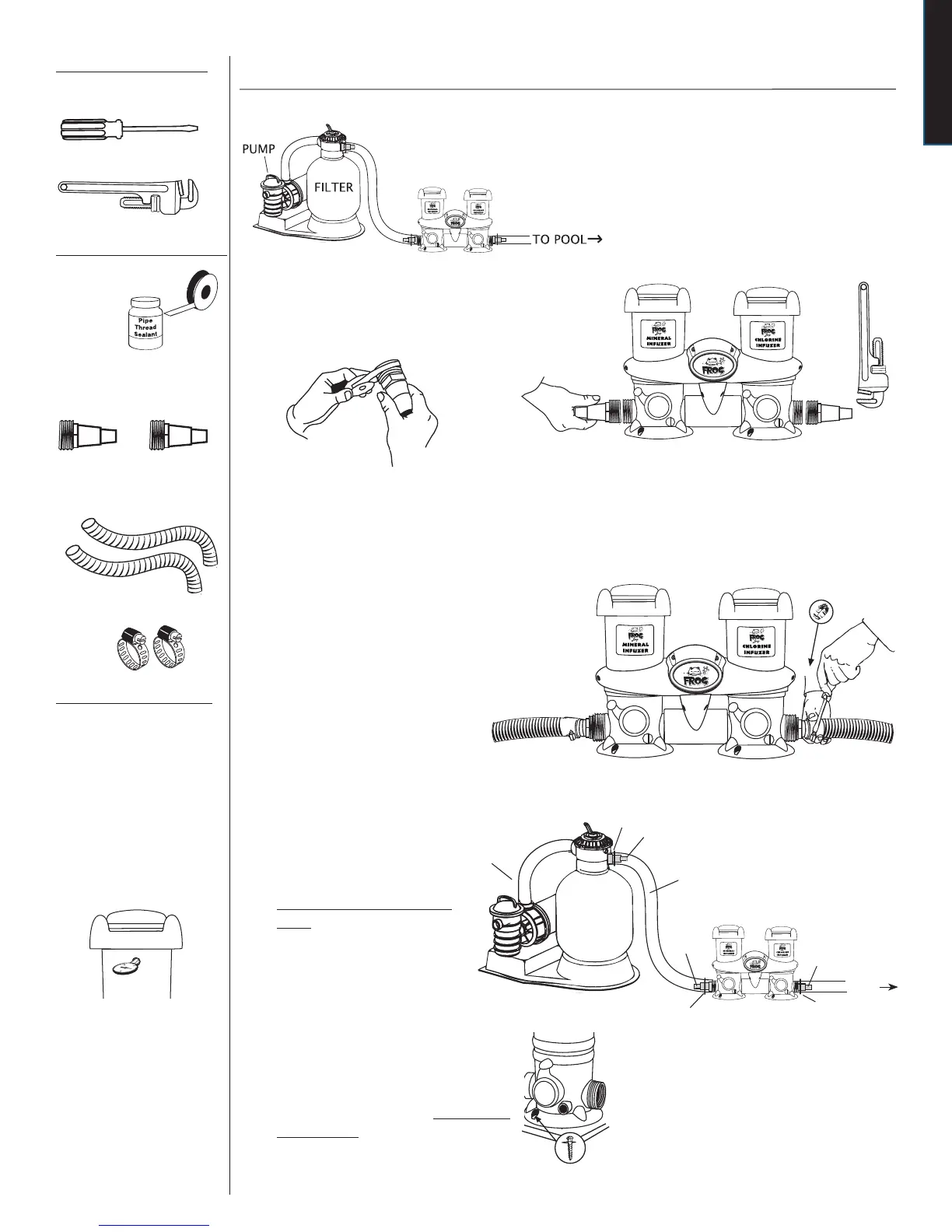

Apply pipe thread tape or
sealant to the threaded end
of both hose adapters.
Screw adapters into each end of the FROG Leap Twin
Infuzers. Hand tighten. Finish tightening by turning 1 to 2
revolutions with a pipe wrench. DO NOT OVER TIGHTEN.
Attach the lter section of ex hose to one
hose adapter and the return section of ex
hose to the other hose adapter with clamps
and tighten with screwdriver. Bi-ow valve
design allows water ow in either direction.
1. 2.
3.
4.
5.
For better stability, FROG Leap Twin
Infuzers may be mounted on a
treated wood base using Phillips pan
head screws, one in front and two
in back. If you have questions about
stability, please contact your dealer
or King Technology.
To prevent damage to
heaters or lters, see your
dealer about installing a
corrosion resistant check
valve which will reduce the
back ow of chlorine gas
when the FROG Leap Twin
Infuzers are turned off.
FILTER &
PUMP
HOSE
CLAMP
1 1/2” X 1 1/2” X 1 1/4”
HOSE ADAPTER
1 1/2” OR 1 1/4”
FLEX HOSE
HOSE
ADAPTER
HOSE
CLAMP
HOSE
ADAPTER
HOSE CLAMP
TO POOL
CHECK
VALVE
The FROG Leap Twin Infuzers should always
be installed between the lter and pool
(or between heater and pool if applicable).
Never install FROG Leap Twin Infuzers
before the heater or damage to the heater
could occur.
Install
