FROG Leap Twin - Hard-Plumbed Installation

8
1½” Male Adapter
(slip x MPT)
or
2” Female
Adapter
(slip x FPT)
Hard-Plumbed Installation
Do NOT install
FROG Leap Twin
Infuzers off-line.
Measure the distance
between outside
male adapters and
cut out a section of
pipe 3” less than that
dimension.
Allow a minimum of 12” above and on each side
of FROG Leap Twin Infuzers to ensure room for
easy replacement of FROG Leap Anti-Bac Mineral
Pac and FROG Leap Torpedo Pac.
TOOLS NEEDED
Hacksaw
MATERIALS NEEDED
Tape
Measure
SECURE INFUZER
2.
2.
Pipe Wrench
Install with water owing
through the minerals rst
and then the chlorine.
Minimum
12” above
opening
Minimum
12” above
opening
Minimum
12” to side
Minimum
12” to side
Pipe Thread Tape or
Sealant, Primer and
PVC Cement
Insert PVC pipe into adapters
with a twisting action. Hold in
place 5 to 10 seconds to bond.
Following Primer directions, brush Primer on
the inside of the adapters and to ends of pipe.
Repeat this process with PVC cement following
manufacturer’s directions on that product.
3. 4.
5.
For better stability,
FROG Leap Twin
Infuzers may be
mounted on a treated
wood base using
Phillips pan head
screws, one in front
and two in back. If
you have questions
about stability, please
contact your dealer or
King Technology.
Minerals Chlorine
P
r
i
m
e
r
P
r
i
m
e
r
P
V
C
C
e
m
e
n
t
P
V
C
C
e
m
e
n
t

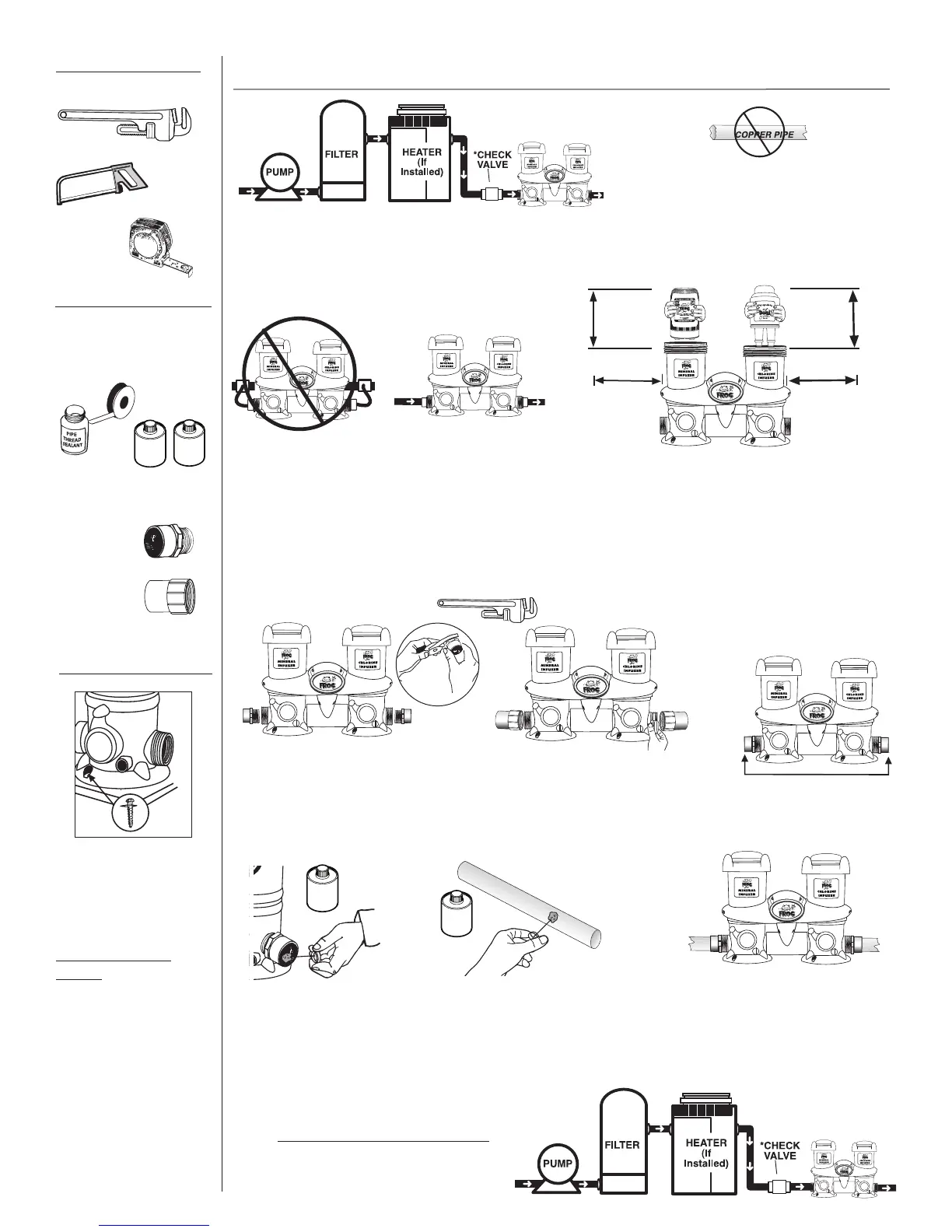

1.
Screw adapters into each end of FROG Leap Twin Infuzers following
directions for a male adapter or a female adapter. Hand tighten.
Finish tightening by turning 1 to 2 revolutions with a pipe wrench.
DO NOT OVER TIGHTEN.
1a. 1b.
If using Male adapters,
apply pipe thread tape or
sealant to the threaded
end of each.
If using Female adapters,
apply pipe thread tape or
sealant to the threaded
end of each.
Do NOT install in copper pipe if using
FROG Leap Torpedo Pac as chemical
corrosion may lead to pipe failure.
The FROG Leap Twin Infuzers should always be installed
between the lter and pool (or between heater and pool if
applicable). Never install FROG Leap Twin Infuzers before
the heater or damage to the heater could occur.
To prevent damage to heaters or
lters, see your dealer about installing
a corrosion resistant check valve
which will reduce the back ow of
chlorine gas when the FROG Leap
Twin Infuzers are turned off.
