Fronius IG 15 - AC Plug and Outdoors Connection; AC Plug Assembly; Outdoors Unit Mounting

50
Fixing the wall
mounting
frame for
FRONIUS IG
Outdoors
(continued)

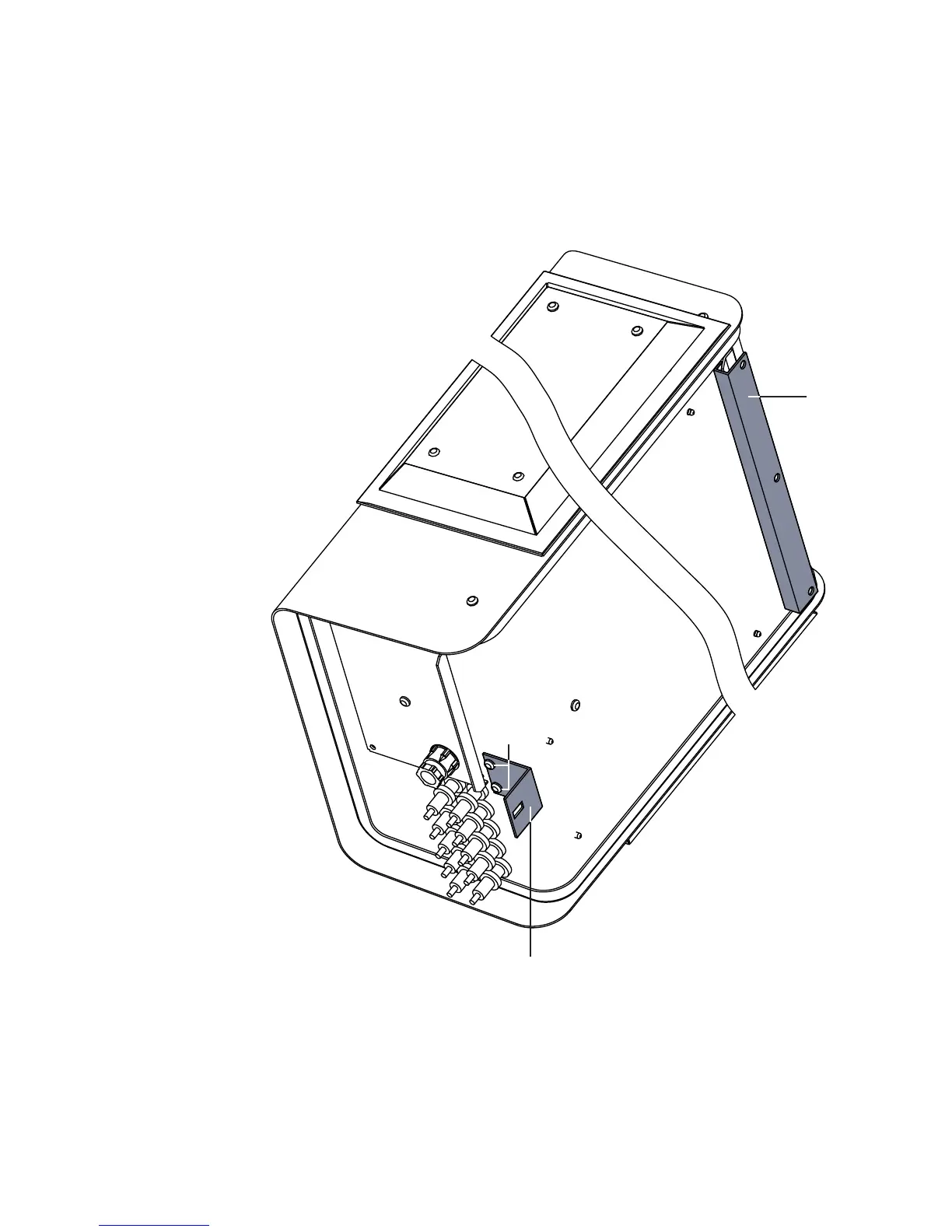

The following illustration shows both parts (1) and (2) of the wall bracket.
Both parts are included with the FRONIUS IG. The illustration shows how
the FRONIUS IG is hung in part (1).
Part (2) is fitted as follows:
- Slacken the screws (3) on the bottom of the FRONIUS IG
- Fit part (2) using the screws (3)
(2)
(1)
(3)
