Fronius Symo 5.0-3-M User Manual

30

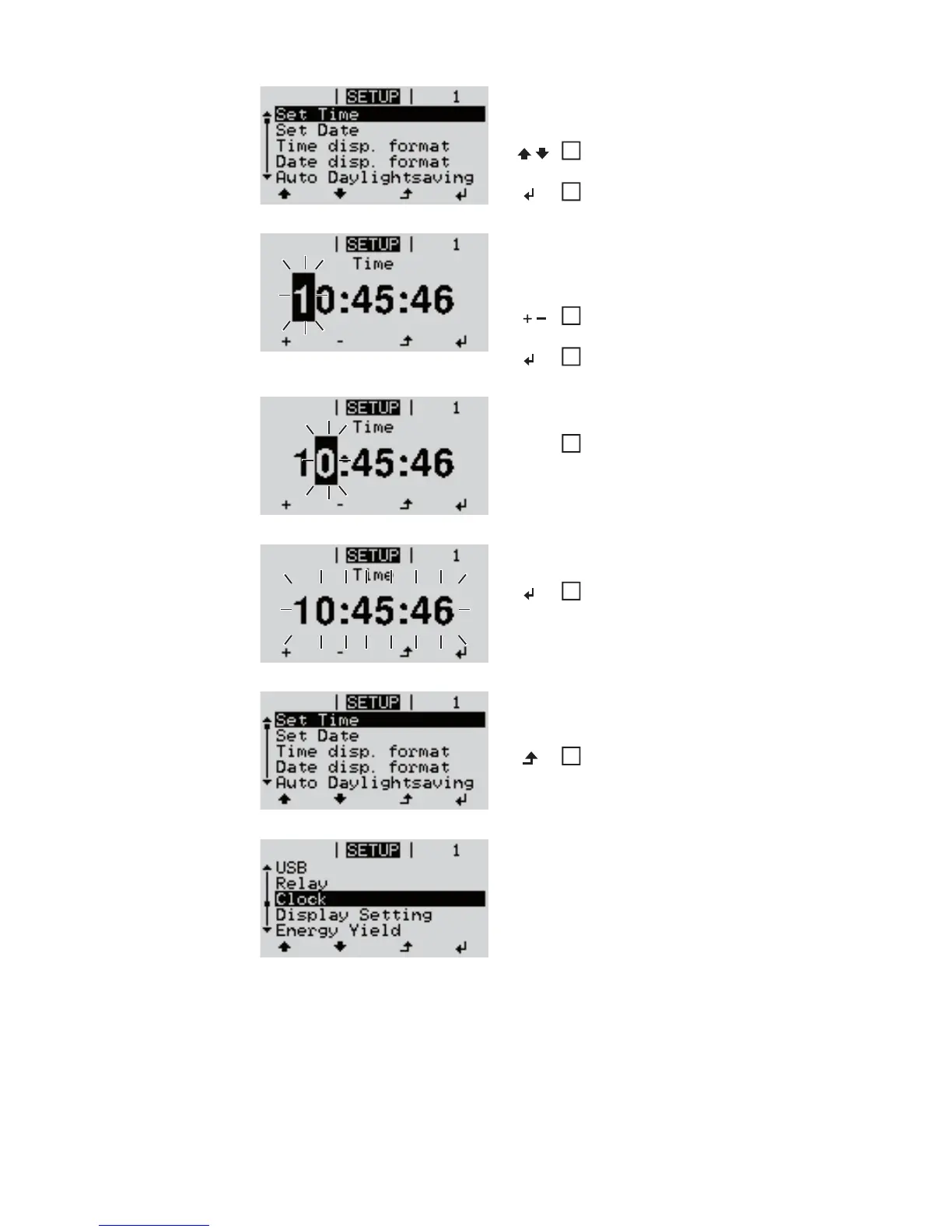

An overview of the values that can be
changed is displayed.
Use the 'Up' or 'Down' keys to select
'Set time'
Press the 'Enter' key
The current time appears.
(HH:MM:SS, 24-hour clock),
the 'tens' digit for the hour will flash.
Use the 'Up' and 'Down' keys to select
a value for the 'tens' digit for the hour
Press the 'Enter' key
The 'units' digit for the hour will flash.
Repeat steps 5 and 6 for the 'units'
digit for the hour, for the minutes and
seconds until...
the set time starts flashing.
Press the 'Enter' key
The time is applied and the overview of
values that can be changed is displayed.
Press the 'Esc' key
The 'Time / Date' item on the Setup menu
appears.
3
4
5
6
7
8
4

Fronius Symo 5.0-3-M Specifications

General

AC Nominal Output	5.0 kW
Max. Input Voltage	1000 V
MPPT Voltage Range	200 - 800 V
Number of MPP Trackers	2
Dimensions (H x W x D)	645 x 431 x 204 mm
Weight	19.9 kg
Protection Rating	IP 65
Operating Temperature Range	-25°C to +60°C
Max. Apparent AC Power	5.0 kVA
AC Nominal Voltage	3~ 230/400 V
AC Voltage Range	184 - 264.5 V
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
Maximum AC Power	5000 VA
AC Nominal Frequency	50/60 Hz
DC Input Voltage Range	200 - 1000 V
Number of DC Connections	2
Max. DC Short-circuit Current	18.0 A
Cooling	Active cooling
