Frontier DC1000 - Page 25

Parts 25
Item Number Qty.
Qty. Shipped
Part Number Description
1 2 1 5TIDC611102 Eccentric Locking Collar Bearings (hardware not included)
2 1 1 5TIDC611107 Jack
3 1 1 5TIDC611108 Cat #2 Top Link Pin w/ Lynch Pin
4 4 2 5TIDC611110 Hitch Tab Hardware
5 4 4 5TIDC611150 Bearing Hardware
6 4 2 5TIDC611113 Disc Caddy Hitch Adjustment Beam Hardware
7 8 4 5TIDC611115 PTO Shield Hardware
8 1 1 5TIDC611118 Hydraulic Cylinder Safety Stop w/ Clinch Pin
9 2 1 5TIDC611138 Disc Caddy Hydraulic Hose End Attachment
10 8 8 5TIDC611122 Frame Plate Hardware
11 1 1 5TIDC611147 Disc Caddy Frame
12 1 1 5TIDC611152 Front Bearing Mount Tower
13 1 1 5TIDC611153 Rear Bearing Mount Tower
14 1 1 5TIDC611132 Disc Caddy Hitch Clevis Tongue
15 2 1 5TIDC611134 Disc Caddy Hitch Tab
16 1 1 5TIDC611135 Rear Frame and Axle Attachment (Frame & Spindle Only)
17 3 1 TIFC711207 Red Reector Decal
18 2 1 5TIDC611119 Weight Retaining Bar w/ R-Pin
19 1 1 5TIDC611133 Disc Caddy Hitch Adjustment Beam
20 2 1 5TIDC611137 (Not Shown) Disc Caddy Hydraulic Extension Hose w/
Straight End
3
7
5
4
6
2
10
9
PARTS
8
11
12
15
16
17
1
19
1
14
18
13

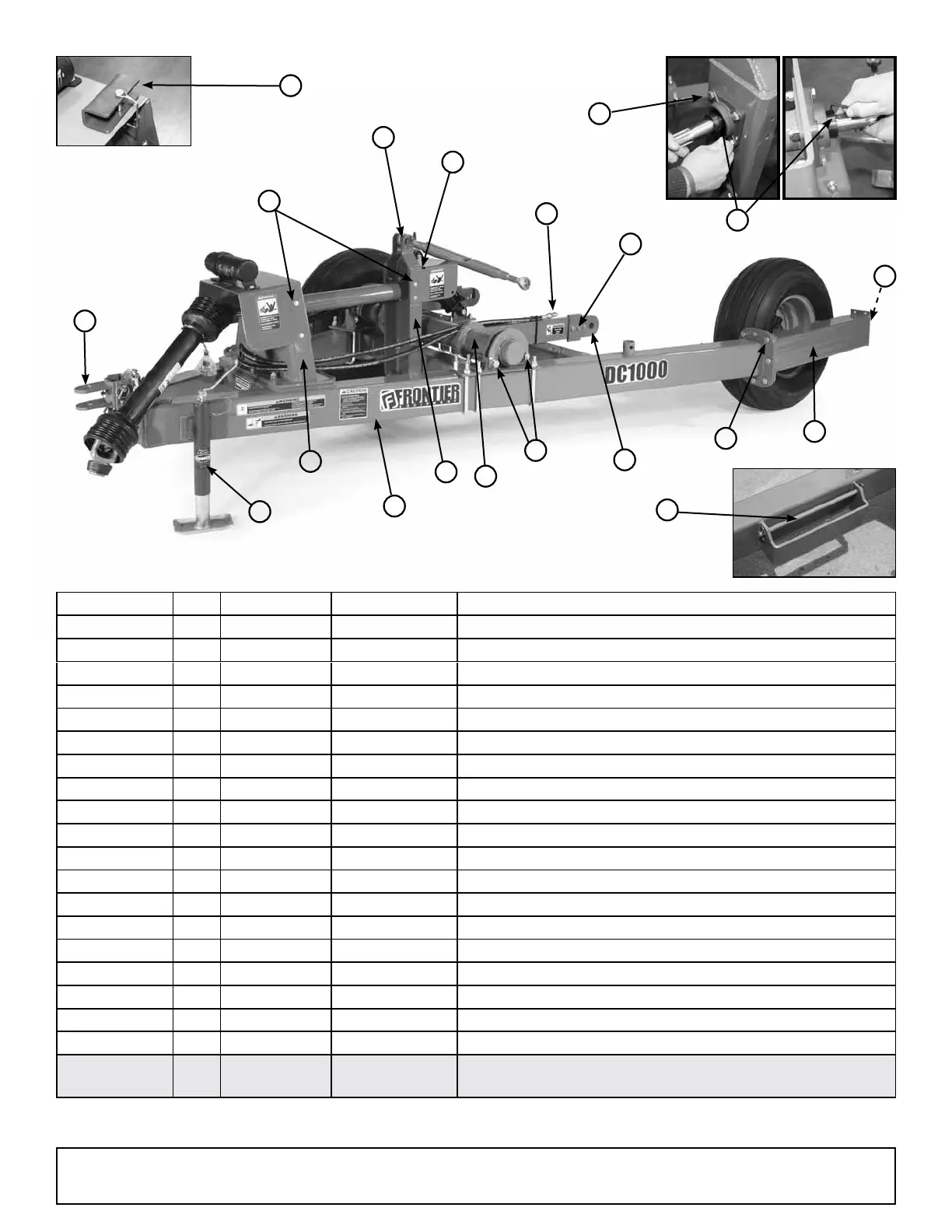

Parts Overall View
Double Tower Style
BackFront Front
Use this parts list if serial number is XFDC10X001400 or greater.
