26 Parts
Use this parts list if serial number is before XFDC10X001400.
PARTS
10
12
7
13
6
4
3
8
11*
2
1
5
14
15
15
16
9
Item Number Qty.
Qty. Shipped
Part Number Description
1 1 1 5TIDC611101 Black Manual Holder w/ Hardware
2 1 1 5TIDC611104 60” PTO Shaft
3 1 1 5TIDC611105 50” Top Link
4 2 1 5TIDC611106 Wheel & Tire Combo
5 2 1 5TIDC611109 Cat #1 Hitch Pin w/ Lynch Pin
6 6 6 5TIDC611112 PTO Housing Mount Assembly Hardware
7 7 1 5TIDC611116 5/8” U-Bolts w/ Nylon Lock Nuts
8 2 1 5TIDC611117 PTO Shield Plate (Rev A)
8 2 1 5TIDC611142 Single Tower PTO Shield Plate (Rev B) (For DC1000 with
serial number XFDC10X001234 or after)
9 1 1 5TIDC611121 15” Six-Spine PTO Adapter Shaft
10 2 1 5TIDC611123 Model Number Decal Label
11 1 1 5TIDC611124 Warning Decal Sheet (see pages 8 & 9)*
12 2 1 TIFC711172 Frontier Logo Decal
13 1 1 5TIDC611136 Disc Caddy Safety Chain w/ Hook & Latch
14 1 1 5TIDC611120 9’ Hydraulic Hoses w/ 90° Ends
15 2 1
5TIDC611139 Hub Kit (Hub, Lug Bolts, Dust Cap & Bearings)
16 1 1 5TIDC611114 Hydraulic Line Holder w/ Hardware Kit
17 2 1 5TIDC611137 (Not Shown) Disc Caddy Hydraulic Extension Hose w/
Straight End
* For complete Safety Decals listing and
locations refer to pages 8 and 9.

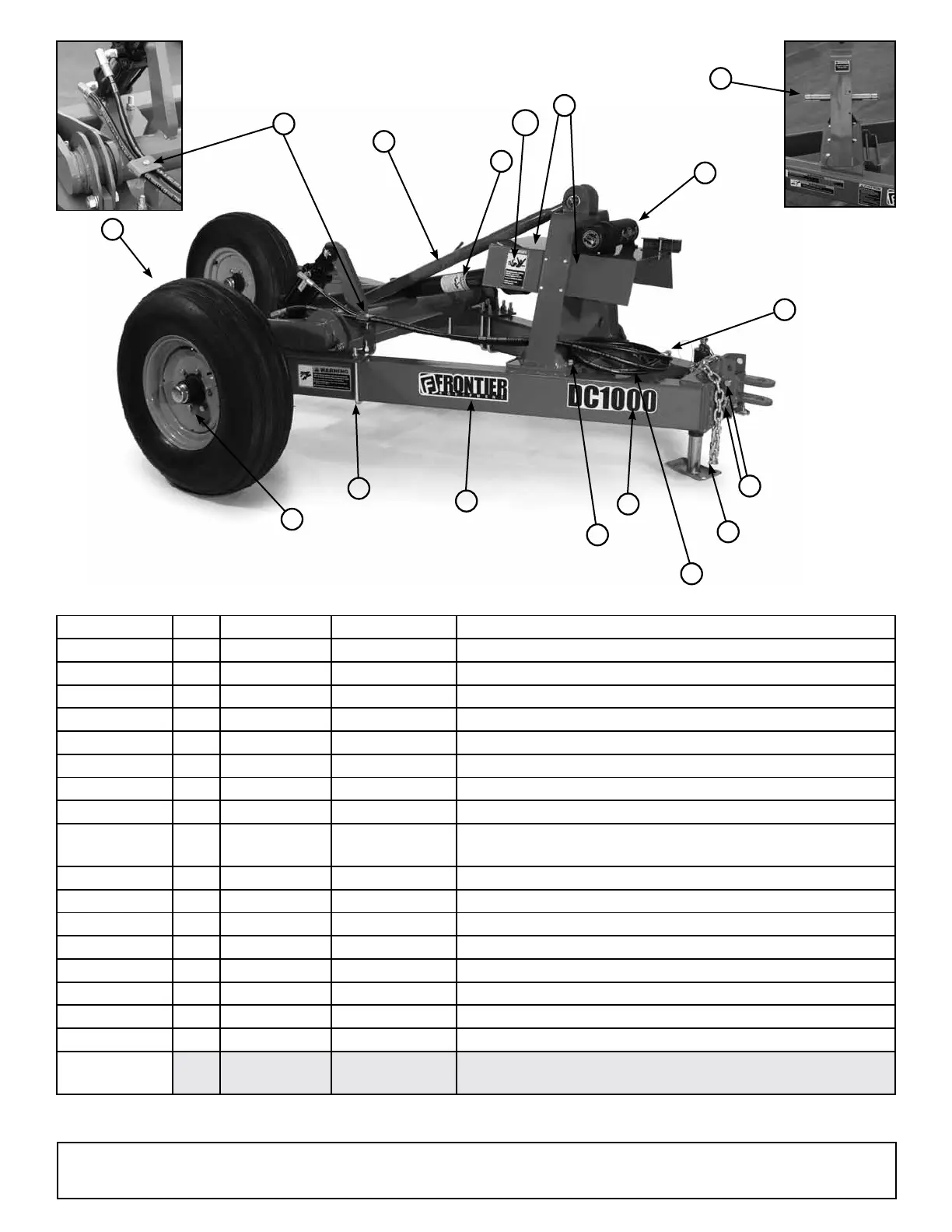

Parts Overall View
