Parts 27
Use this parts list if serial number is before XFDC10X001400.
Item Number Qty.
Qty. Shipped
Part Number Description
1 2 1 5TIDC611102 Eccentric Locking Collar Bearings (hardware not included)
2 1 1 5TIDC611103 Hydraulic Cylinder
3 1 1 5TIDC611107 Jack
4 1 1 5TIDC611108 Cat #2 Top Link Pin w/ Lynch Pin
5 4 2 5TIDC611110 Hitch Tab Hardware
6 4 4 5TIDC611111 Bearing Hardware
7 4 2 5TIDC611113 Disc Caddy Hitch Adjustment Beam Hardware
8 8 4 5TIDC611115 PTO Shield Hardware
9 1 1 5TIDC611118 Hydraulic Cylinder Safety Stop w/ Clinch Pin
10 2 1 5TIDC611138 Disc Caddy Hydraulic Hose End Attachment
11 8 8 5TIDC611122 Frame Plate Hardware
12 1 1 5TIDC611130 Disc Caddy Frame
13 1 1 5TIDC611141 Single Tower Disc Caddy Mount Assy w/PTO Shield
Plates (Rev B)
14 1 1 5TIDC611132 Disc Caddy Hitch Clevis Tongue
15 2 1 5TIDC611134 Disc Caddy Hitch Tab
16 1 1 5TIDC611135 Rear Frame and Axle Attachment (Frame & Spindle Only)
17 3 1 TIFC711207 Red Reector Decal
18 2 1 5TIDC611119 Weight Retaining Bar w/ R-Pin
19 1 1 5TIDC611133 Disc Caddy Hitch Adjustment Beam
4
6
8
5
7
3
11
PARTS
9
12
13
15
16
17
1
10
18
2
14
18
2
9
19

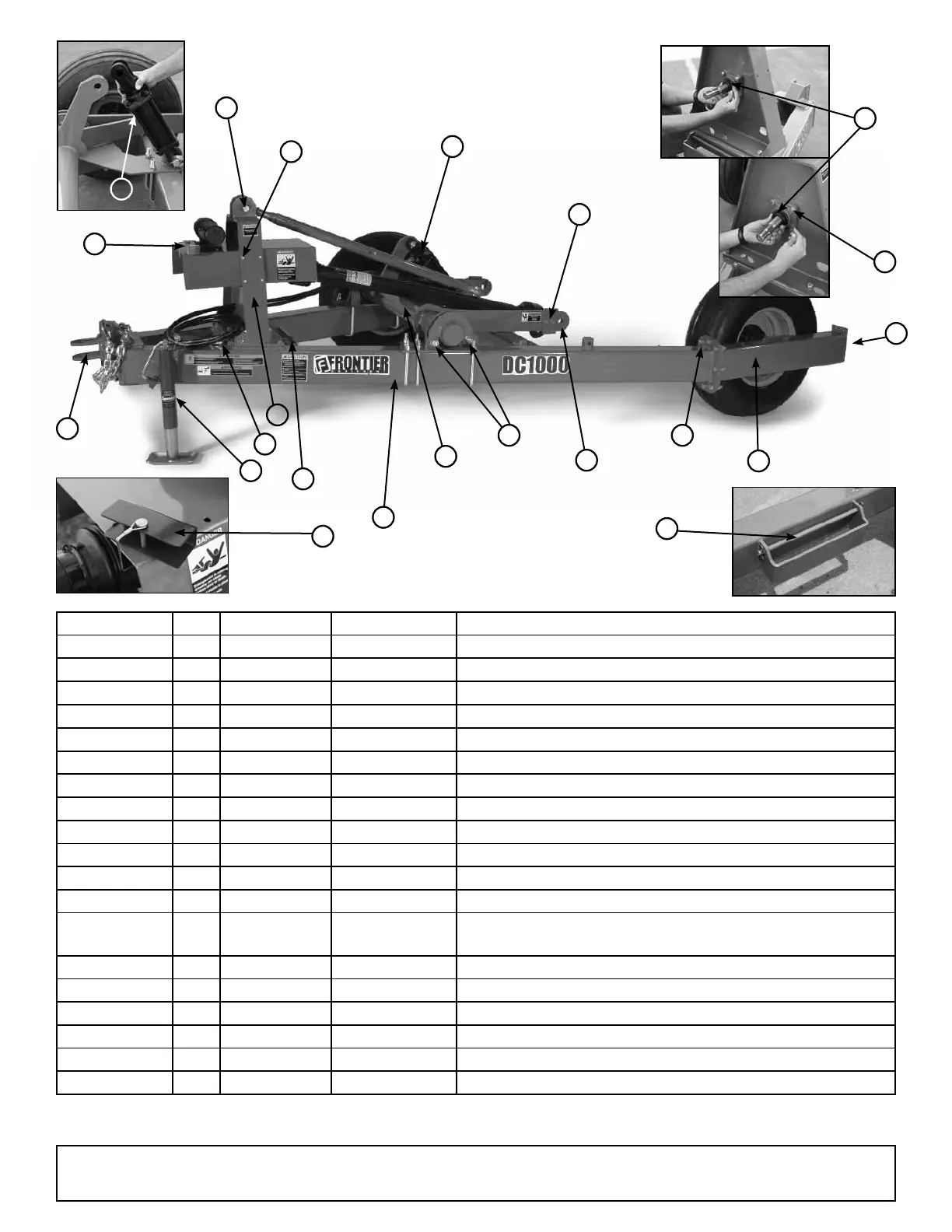

Parts Overall View
Single Tower Style
To Next Page
