Frontier DH1276 - Optional Equipment 15

* M/S - Model Specific Optional Equipment 15
Optional Equipment
Ref.#Part # Description Qty.
Heavy Scraper Kit

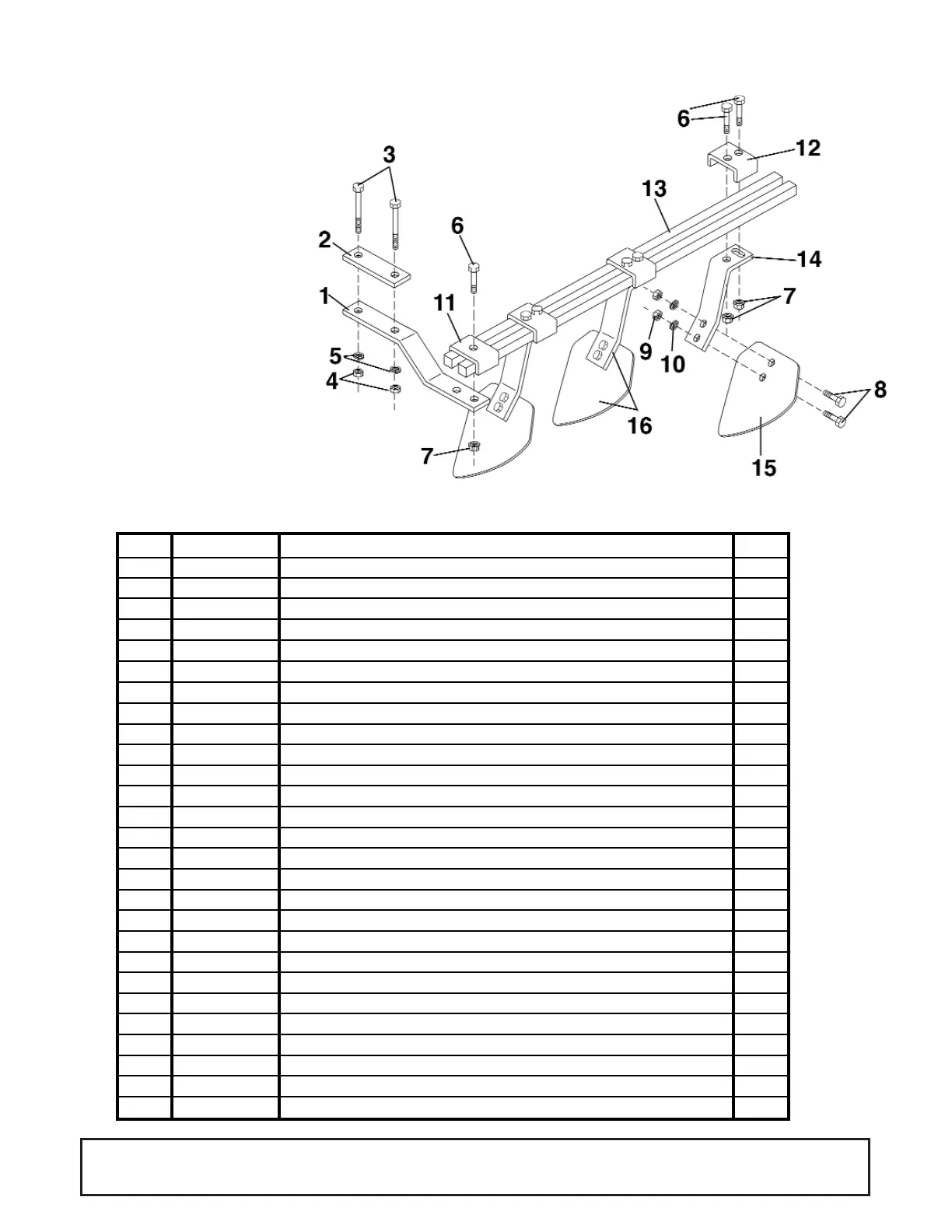

Figure 2
DH1276 TLSK919H
DH1280-7.5 TLSK720H
DH1280-9/7.5 TLSK9718H
DH1296-9 TLSK920H
DH1296-7.5 TLSK724H
1 TL12892 SCRAPER MOUNT BRACKET (3X3) MODEL DH12 8
TL12891 SCRAPER MOUNT BRACKET (4X3) MODEL DH13 8
2 TL12090 SCRAPER BAR TOP PLATE (3X3) MODEL DH12 8
TL12894 SCRAPER BAR TOP PLATE (4X3) MODEL DH13 8
3TLT-745 HEX BOLT, 5/8" X 5" GR. 2 16
4TLT-22 HEX NUT, 5/8" 16
5TLT-24 LOCK WASHER, 5/8" 16
6 TL11082 HEX BOLT,
1
/2"X2
1
/2" GR. 2 *MS
7 TL9226 FLANGE LOCK NUT,
1
/2" *MS
8TLT-733 HEX BOLT,
1
/2"X1
1
/2" GR. 2 *MS
9TLT-26 HEX NUT,
1
/2" *MS
10 TLT-25 LOCK WASHER,
1
/2" *MS
11 TLT-803 SCRAPER BAR CLAMP, "U" CLAMP – 1 HOLE 8
12 TL9356 2-HOLE CLAMP *MS
13 TL12337 HEAVY SCRAPER BAR, 27" MODEL DH1276 4
MODEL DH1280T971820 (front) 2
TL14981 HEAVY SCRAPER BAR, 30" MODEL DH1376 4
TLT-261 HEAVY SCRAPER BAR, 33" MODEL DH1280T72020 4
MODEL DH1280T971820 (rear) 2
MODEL DH1380 4
TL12338 HEAVY SCRAPER BAR, 37" MODEL DH1296T92020 4
MODEL DH1396 T92020 4
TL11738 HEAVY SCRAPER BAR, 40" MODEL DH1296T72420 4
TLT-262 HEAVY SCRAPER BAR, 41" MODEL DH1396T72420 4
14 TL10151 SCRAPER ARM *MS
15 TL11081 UNIVERSAL SCRAPER BLADE *MS
16 TL11027 or ARM & BLADE ASSEMBLY
FOR RIGHT FRONT OR LEFT REAR *MS
TL11028 ARM & BLADE ASSEMBLY
FOR LEFT FRONT OR RIGHT REAR *MS
