17 Optional Equipment * M/S - Model Specific
Optional Equipment
Heavy Scraper Kit

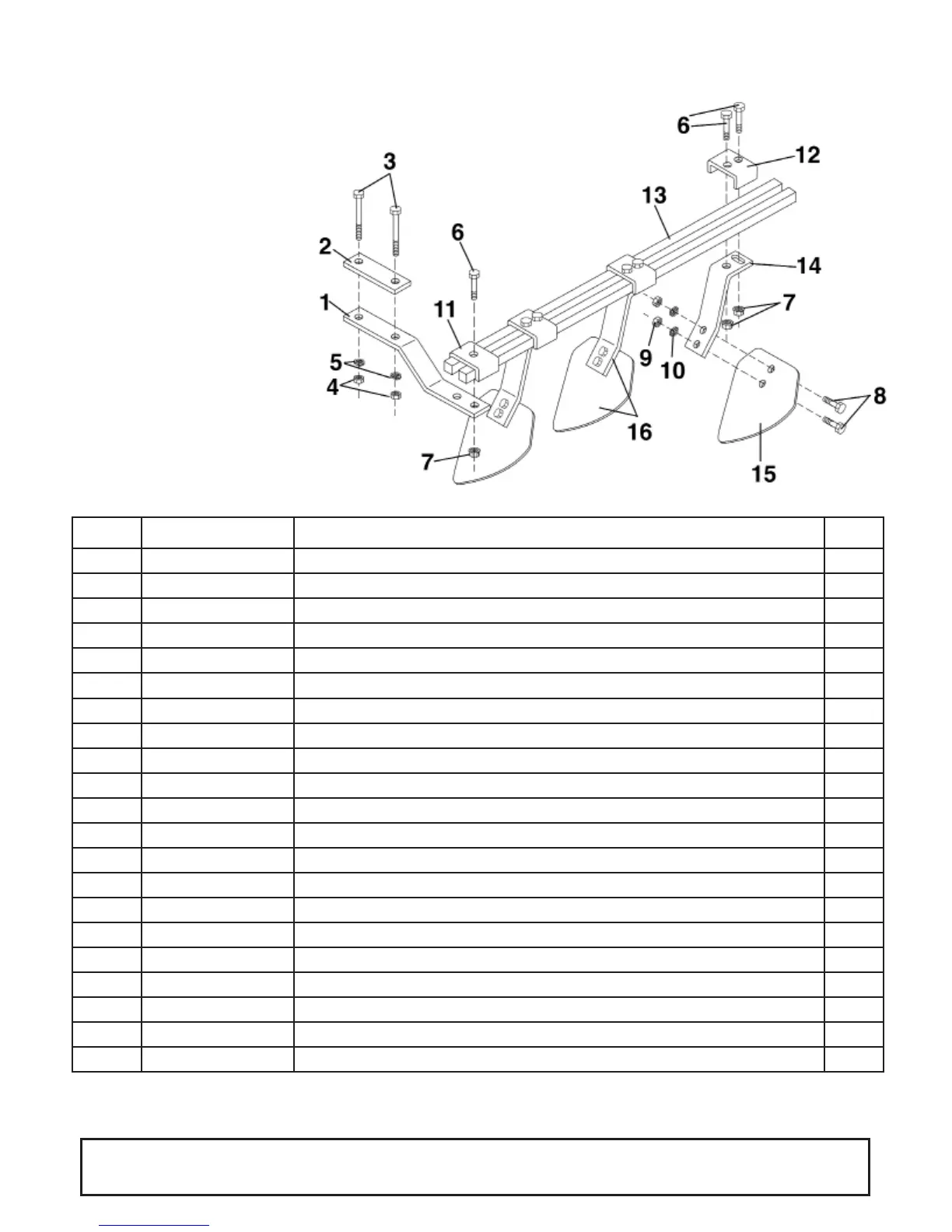

Figure 4
DH3474 5TL916SK
DH3480 5TL918SK
DH3490 5TL920SK
DH3499 5TL922SK
DH3409 5TL924SK
Ref.# Part # Description Qty.
1 5TL10266 SCRAPER MOUNT BRACKET (5X3) MODEL DH34 *MS
2 5TL10265 SCRAPER BAR TOP PLATE (5X3) MODEL DH34 *MS
3 5TLT745 HEX BOLT, 5/8" X 5" GR. 2 *MS
4 5TLT22 HEX NUT, 5/8" *MS
5 5TLT24 LOCKWASHER, 5/8" *MS
6 5TL11082 HEX BOLT, 1/2" X 2 1/2" GR. 2 *MS
7 5TL9226 FLANGE LOCK NUT, 1/2" *MS
8 5TLT733 HEX BOLT, 1/2" X 1 1/2" GR. 2 *MS
9 5TLT26 HEX NUT, 1/2" *MS
10 5TLT25 LOCKWASHER, 1/2" *MS
11 5TLT803 SCRAPER BAR CLAMP, "U" CLAMP- 1 HOLE *MS
12 5TL9356 2- HOLE CLAMP *MS
13 5TLT2644 HEAVY SCRAPER BAR, 63" (DH3474) 2
5TL11712 HEAVY SCRAPER BAR, 72" (DH3480) 2
5TLT2645 HEAVY SCRAPER BAR, 81" (DH3490) 2
5TLT2647 HEAVY SCRAPER BAR, 90" (DH3499) 2
5TLT2649 HEAVY SCRAPER BAR, 99" (DH3409) 2
14 5TL10151 SCRAPER ARM *MS
15 5TL11081 UNIVERSAL SCRAPER BLADE *MS
16 5TL11027 or ARM & BLADE ASSEMBLY (FRONT) *MS
5TL11028 ARM & BLADE ASSEMBLY (REAR) *MS
