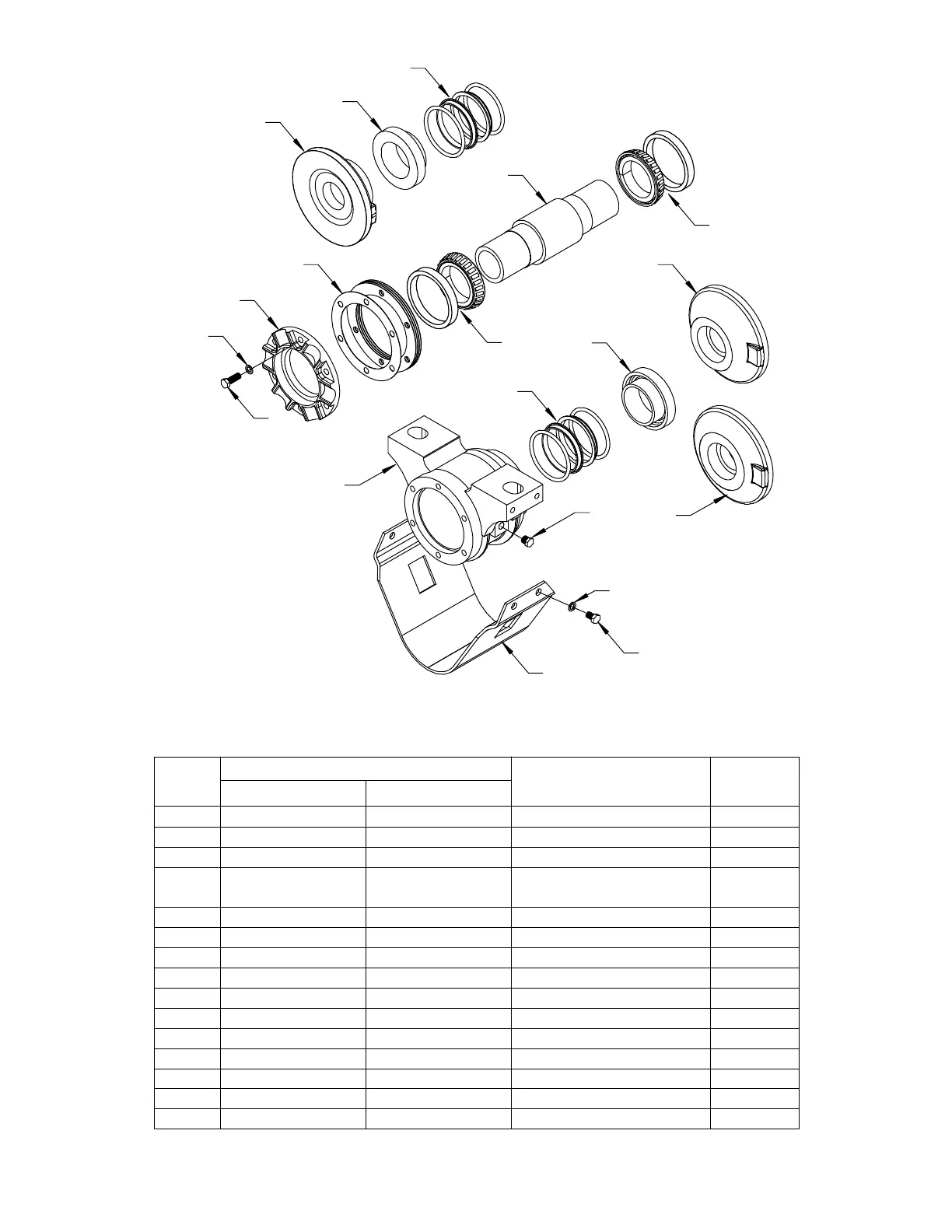

Frontier DH5410C User Manual

1
2b
6
6
3
8
5
5
7
4
4
12
13
10
11
9
11
14
2a
REF NO
PART NUMBER
DESCRIPTION
NO REQ'D
1
2a
3
4
5
6
7
8
9
10
11
12
13
14
5KB502040167
5KB502011553
5KB503030687
5KB503030537
5KB503010482
5KB503030029
5KB502040119
5KB502040204
5KB502010208
5KB502011685
5KB050150B5
5KBLW050
5KB511016372
5KB050075B
Concave Flange
Convex Flange
0.10 mm Gasket (Shim)
0.40 mm Gasket (Shim)
Bearing, Cup and Cone
Duo-Cone Seal
Seal Retainer
Bearing Axial
End Cap
Bearing Housing
1/2" X 1-1/2" UNC Bolt
1/2" Lock Washer
Wear Plate
1/2" X 3/4" UNC Bolt
1
1
2
2
2
1
1
1
6
10
1
4
2
5KB501040230 - Oil-Bath Bearing Assembly (Model DH54xxC)
5KB501047190 - Oil-Bath Bearing Assembly (Model DH55xxC)
Check Plug
2b Convex Flange 1
5KB502040167
5KB503030687
5KB503030537
5KB503010482
5KB503030029
5KB502040119
5KB502040204
5KB502010208
5KB502011685
5KB050150B5
5KBLW050
5KB511016372
5KB050075B
5KB502040168
5KB501040230 (13") 5KB501047190 (14")
5KB503010856 5KB503010856
41
