Specifications
STANDARD EQUIPMENT AND FEATURES
□ Oil-Bath Bearings with back-to-back tapered roller bearings in a ductile cast housing sealed with
metal industrial cone seals. Two bearings per disk gang assembly and four disk gang assemblies
per machine.
□ Replaceable bearing wear plates.
□ Adjustable disk blade scrapers.
□ 2-1/2” diameter alloy gang axles threaded at each end.
□ Heavy duty fabricated steel spacer spools.
□ Separate transport levelling and field levelling mechanisms simplify adjustment.
□ Hydraulic control group includes 20” stroke welded 5” diameter hydraulic cylinder with 2” rod,
hose holder, hoses with fittings and quick disconnects to reach tractor couplers.
□ Flex / Swivel tongue hook-up to minimize torsional stress in extreme working environments.
□ 385/65R225 Industrial Truck tires on 10-bolt wheels and hubs.
□ Major fasteners minimum Grade 8 plated.
□ Two fabricated steel gang axle wrenches.
□ Hitch jack, safety chain and transport stay.
□ Safety decals, mounted SMV sign and Light Kit
* Drawbar Horsepower requirements vary with soil conditions, topography, weight added to the disk and tractor type (e.g.
rubber track, rubber wheel, straight frame, articulated).
Note: The manufacturer reserves the right to make improvements and modifications which may, without notice, change these
specifications.
48

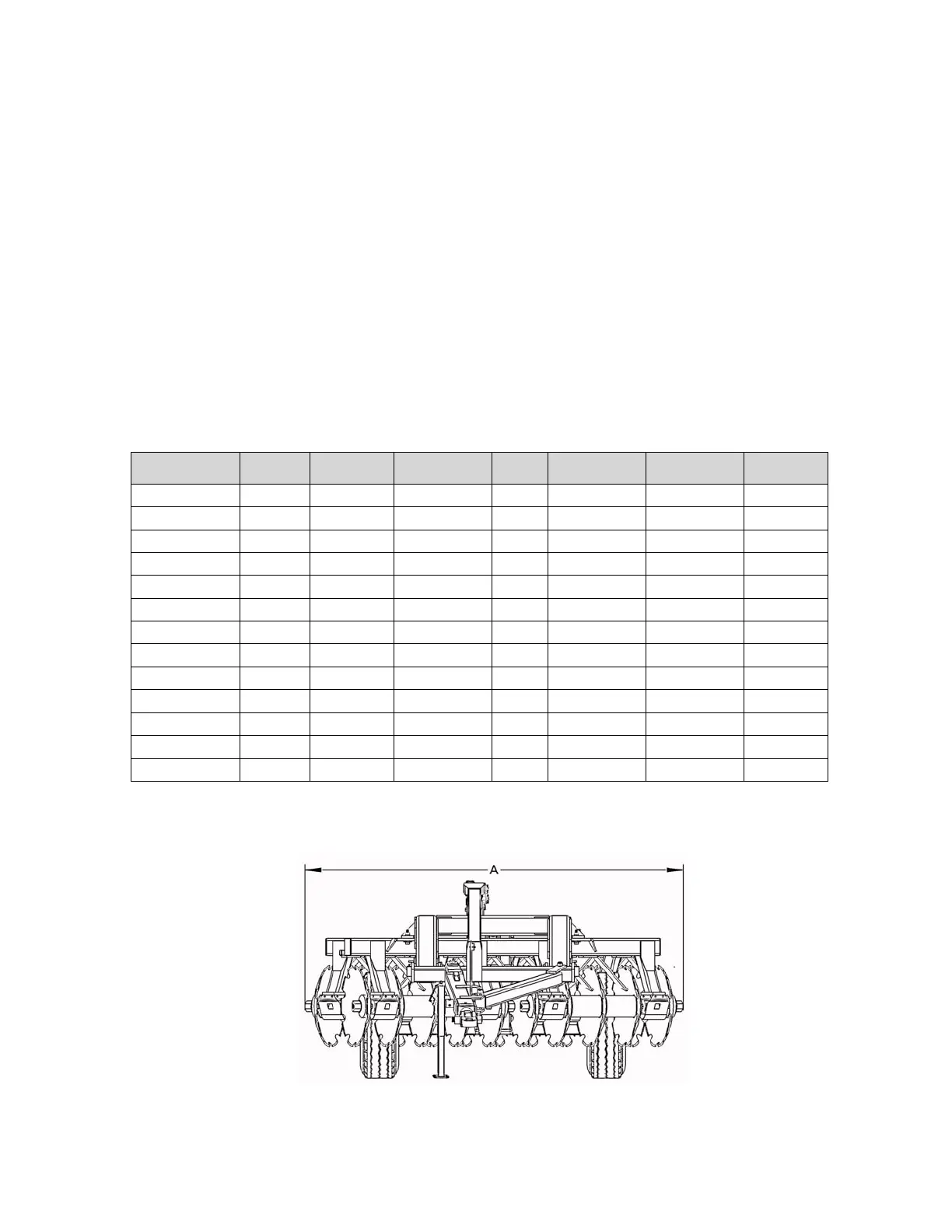

MODEL
Cut
Width
Trans Width
(A)
Blade Size
No of
Blades
Blade Spacing Weight - lbs D.B.H.P.*
DH5410C 10’ 10’ 10” ½” X 30” 18 13” 10500 175+
DH5411C 11’ 11’ 9” ½” X 30” 20 13” 10875 200+
DH5412C 12’ 12’ 8” ½” X 30” 22 13” 11755 225+
DH5413C 13’ 13’ 7” ½” X 30” 24 13” 12650 275+
DH5414C 14’ 14’ 6” ½” X 30” 26 13” 13100 300+
DH5510C 10 11’ 8” ½” X 32” 18 14” 11500 200+
DH5511C 11’ 12’ 8” ½” X 32” 20 14” 12000 225+
DH5513C 12’6” 13’ 11” ½” X 32” 22 14” 12500 250+
DH5514C 13’9” 14’ 10” ½” X 32” 24 14” 13300 300+
DH5610C 10’ 12’ 6” ½” X 36” 16 17” 13900 225+
DH5612C 11’6” 13’ 10” ½” X 36” 18 17” 14500 275+
DH5613C 13’ 15’ 2” ½” X 36” 20 17” 15200 325+
DH5614C 14’6” 16’ 7” ½” X 36” 22 17” 15900 350+
