disksorS‐tinesstayinthefreeposition,theunitsho uldbelowered.

IfthedisksorS‐tinesarenotmovingthroughthefullrangeofmotion,makeupordown

adjustmentsasrequired.

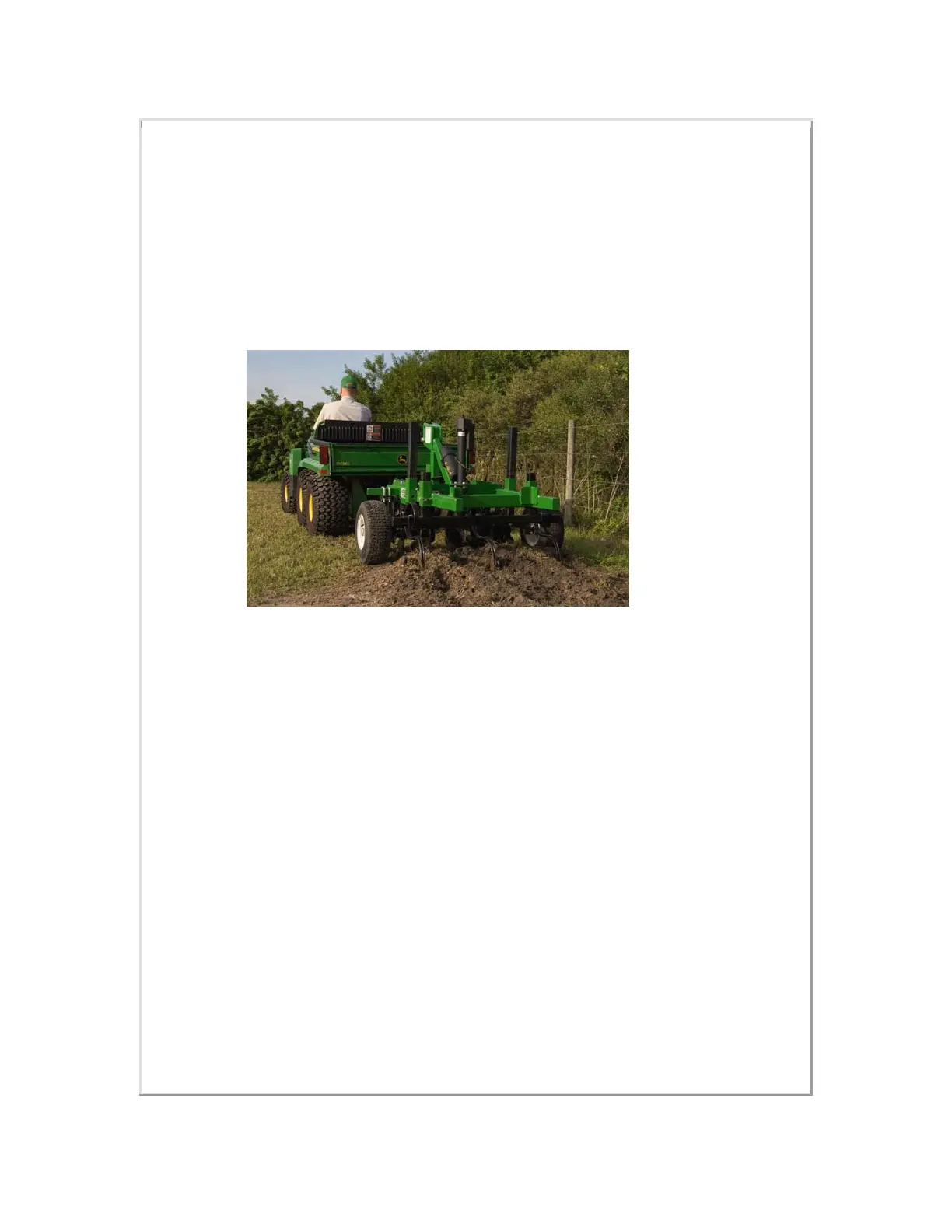

CheckingtheDisksandS‐TinesduringOperationonaUtilityVehicle

NOTE:Makeupordownadjustmentsbynomorethan6.4mm(1/4in.)eachtime,until

properresultsareachieved.

MF1204Pull‐TypeMachine

1.Adjustheightofwheelswithelectricmotorthatcomeswithmachine.

2.Placesingle‐pointhitchincenterholeasastartingpoint.

3.TowMulchFinishertoalevelsiteandtestdepthofmachine

.

4.RaiseorlowerwheelstoplacedisksandS‐tinepointsatdesireddepth.Machineframe

shouldberelativelylevelfront‐to‐rear.

5.Fordeepertillage,adjustsingle‐pointhitchtolowesthole.Forshallowertillageor

transport,adjustittothetophole.


