25-1
2
3
25-4
25-2
25-3
5
4
20
22
24
10
6
7
8
11
Ref.Drive Page
Ref. Auger
Housing Page
9
25-2
16
17
18
14
13
15
12
26
1
28
24

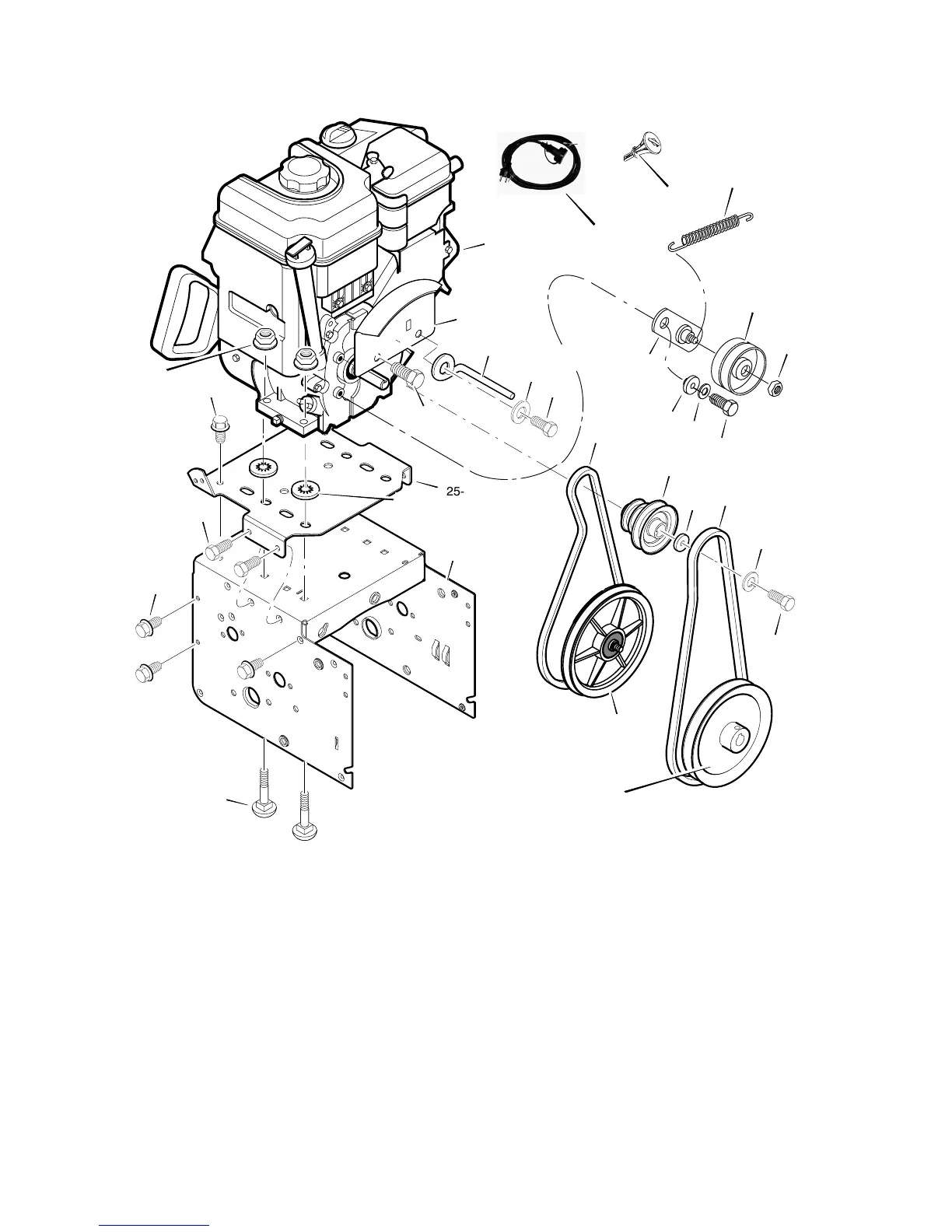

Key No. Part No. Description Key No. Part No. Description
1 MT6219 CORD, STARTER
2 - - - - - ENGINE
3 MT002x97 BOLT, CARRIAGE
4 MT028x76 RETAINER, PUSH
5 MT710026 NUT
6 MT1501109 PULLEY, ENGINE
7 MT710247 WASHER
8 MT71063 WASHER
9 MT71015 SCREW
10 MT579932 BELT, DRIVE V 4L
11 MT585416 BELT, AUGER V 3L
12 MT1501112 YZ BRACKET ASSEMBLY, IDLER
13 MT1501065 BUSHING, IDLER BRACKET
14 MT71060 WASHER, SPLIT
15 MT710097 SCREW 5/16-24 X .75
16 MT53704 SPRING, IDLER TRACTION DRIVE
17 MT50793 PULLEY, IDLER
18 MT590 NUT, JAM 3/8-16
20 MT1501201 GUIDE, ROD BELT
22 MT71060 WASHER
24 MT710097 SCREW
25 - - - - - - FRAME ASSEMBLY
25-1 MT1501062E511 PLATE, ENGINE
25-2 MT310169 SCREW
25-3 MT25x020 SCREW
25-4 MT1501049E511 MOTOR BOX
26 MT1501214 KEY, BRIGGS ENGINE
28 MT1501994 Z SHIELD, BRIGGS ENGINE
-- F-0410104L OWNER’S MANUAL
