FrontLine RPG10 User Manual

1800 lbs
1800 lbs
1800 lbs
1800 lbs
RAW30
RAW40
MIT061S
RPW061CA
RPW061R
RPW061S
Polyester Webbing
(Black) 1" width
Polyester Webbing
(Black) 1" width
Technora Webbing
(Black) 0.8" width
Technora Webbing
(Black) 0.8" width
30 ft
(9.14 m)
40 ft
(12.19m)
6 ft
(1.83m)
6 ft
(1.83m)
54 inches
(1372 mm)
54 inches
(1372 mm)
24 inches
(609 mm)
24 inches
(609 mm)
B
B
A
A
Lifeline
Length
Maximum
Arresting
Force
Maximum
Arrest
Distance
Model Number
Lifeline Material
and Size
Comply
ANSI Z359.14
Class
LIST OF RETRIEVAL TYPE RETRACTABLE FALL ARREST SRL's
RPG80RE
7X19 Galvanized Steel
cable (3/16" dia)
54 inches
(1372 mm)
1800 lbs
B
80 ft
(24.34 m)
RPG10003W
7X19 Galvanized Steel
cable (3/16" dia)
100 ft
(30 m)
54 inches
(1372 mm)
1800 lbs
B
RPG603W
7X19 Galvanized Steel
cable (3/16" dia)
60 ft
(18 m)
54 inches
(1372 mm)
1800 lbs
B
RPG30RE
7X19 Galvanized Steel
cable (3/16" dia)
30 ft
(9 m)
54 inches
(1372 mm)
1800 lbs
B
FRONTLINE introduces Armor range of SRL's specially meant for the toughest & harsh environments. The heavy duty sealed design, corrosion
resistant material used in the SRL keeps the critical working components free of dirt, grease, water & chemicals.
Best suited for OIL & GAS Industries & offshore. Sealed Design meets IP68 level of IEC 60529 for ingress protection against Dust and water.
1. INTRODUCTION TO RETRIEVAL TYPE FALL ARRESTER LIFELINE: FRONTLINE introduces the Retrieval Fall Arrester SRL in Polymer
casing which is coupled with hoisting winch to enable easy retrieval of a victim of a Fall. The SRL allows the fall to arrest and also allows
easy hoist of the victim with help of its hoist function.
The Locking Pin on the side of the casing at the base of the handle allows this dual system to work in independent Fall Arrest & Winch
modes.
It can be easily mounted on the leg of FRONTLINE Megapod (Ref. TAN07, TAN10) using universal mounting bracket for Retrieval SRL's.

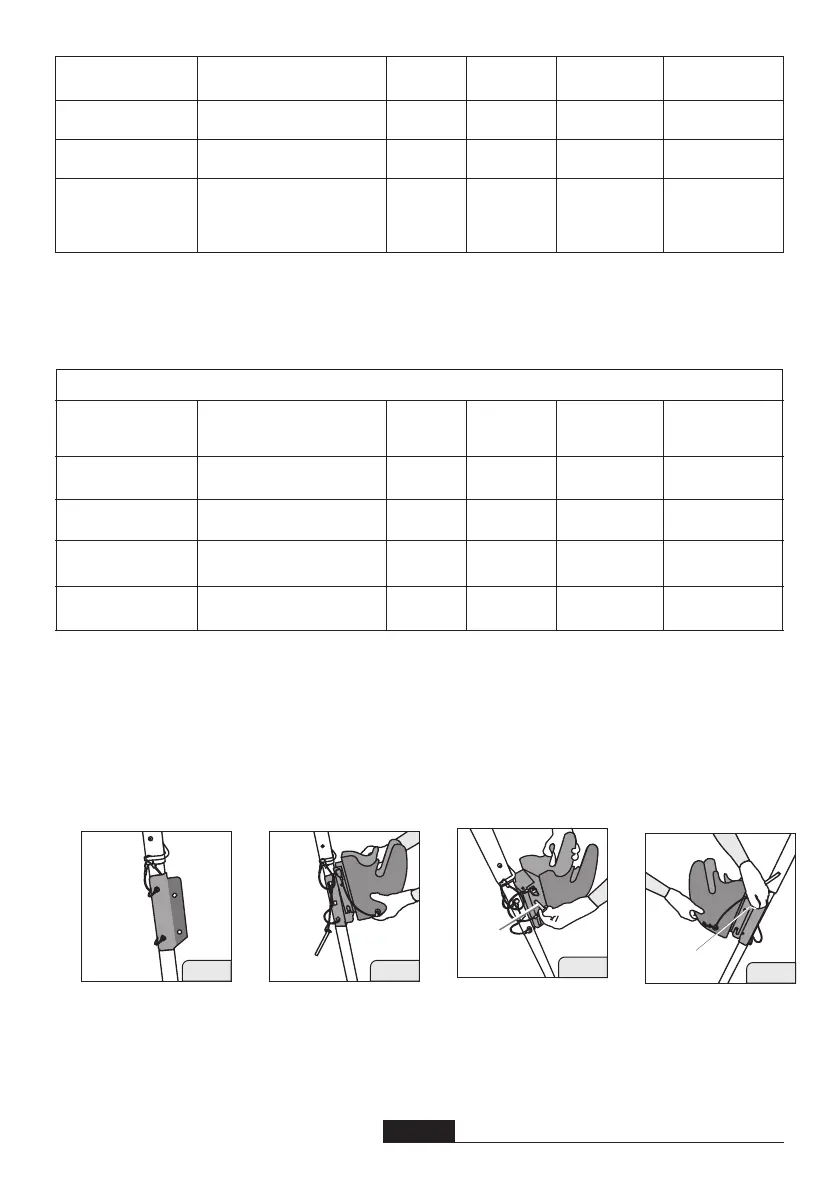

2. INSTALLATION: Follow step-1 to step-4 install this equipment:-
3
fig.1
fig.2
fig.3
fig.4
Pre-installed
mounting
bracket
Retrieval
Mounting
bracket
(TACBU)
Solid Pin
Cotter Pin
