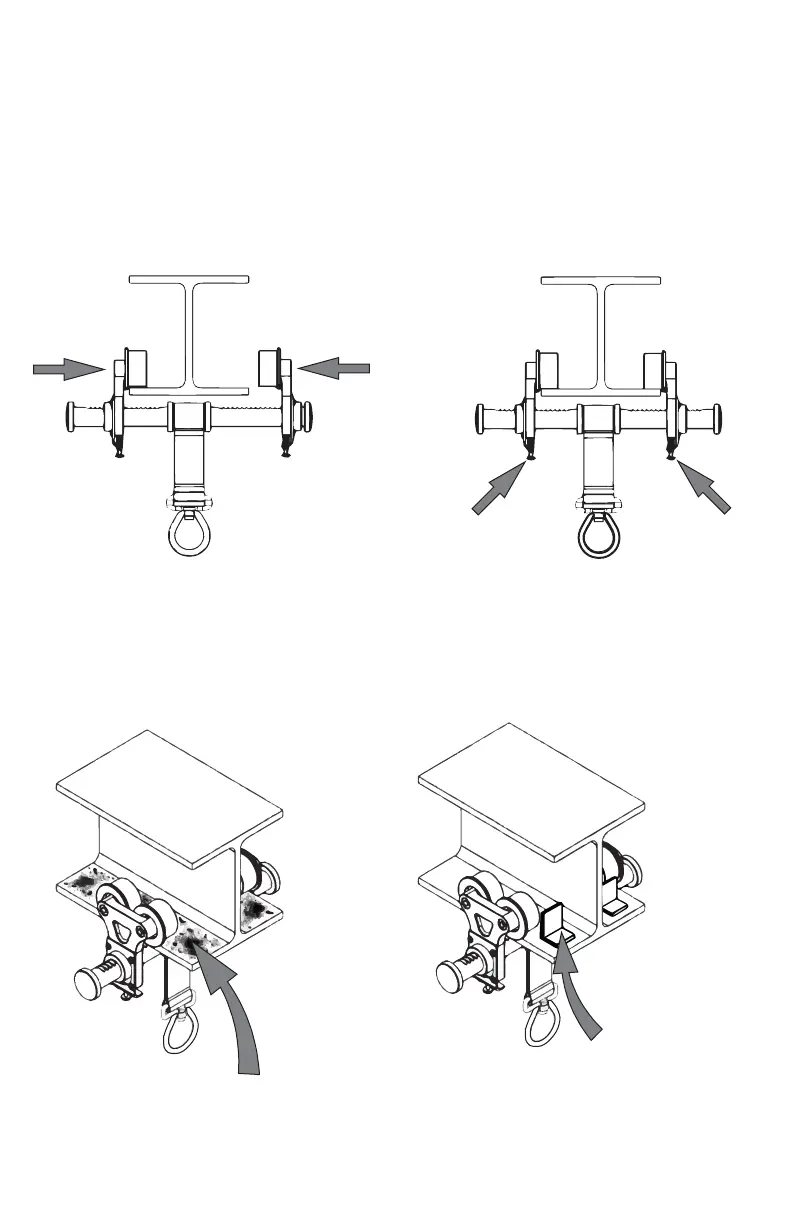

4. Slide the adjustable rollers so that both sets of rollers are fully resting on the
beam ange.
5. Release the toggle plate and pull back on the adjustable rollers to ensure the
ratchet teeth are fully seated in the nearest ratchet notches.
6. Tug, rock, and twist the anchorage connector in all directions to ensure that it
can not come o of the ange.
7. Screw tight the secondary safety locking screws on the bottom of the toggle
plate to ensure the rollers can not move o the edge of the ange.
8. The rollers must ride on a clear, clean surface. Remove any dirt and grit if
necessary.
9. Ensure that Beam Trolley can not slide o end of beam it is attached to.
Install stoppers if necessary.
*Always re-adjust according to Installation steps 1-9 when moving to a new or
dierent sized beam.
*Remove any dirt and
grit if necessary.
*Weld or bolt in stoppers
if necessary to ensure that
Beam Trolley can not slide
o the end.
