ACCEPTABLE LOADING
30° MAX
30° MAX

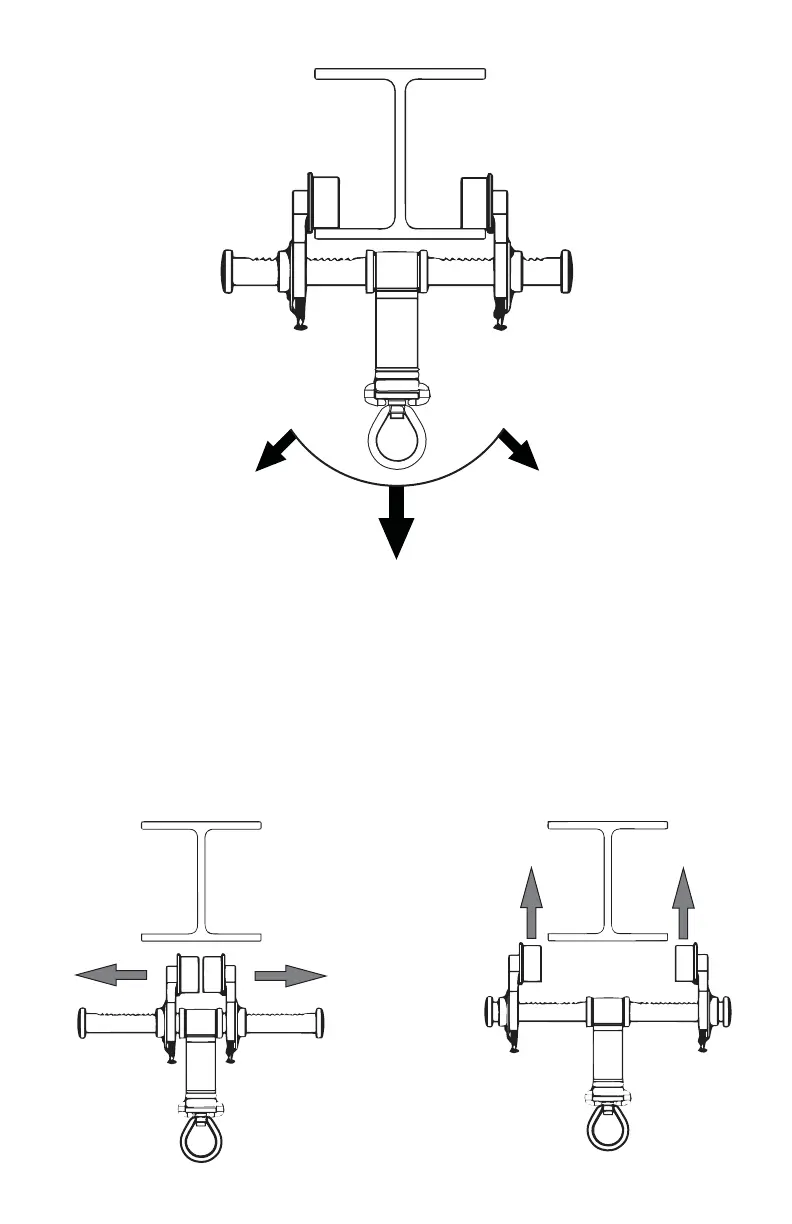

LOADING CONDITIONS DIAGRAM
Installation:
1. Locate a structural steel beam ange capable of withstanding a 5,000-lbf (22kN).
static load or meeting OSHA 1926.502 requirements for a safety factor of two.
Mounting location must be approved by an engineer or qualied person.
2. Push up on the toggle plate to allow the adjustable rollers to move.
3. Keeping the unit perpendicular to the beam, t the rollers over the edges of the
beam ange.
To Next Page
