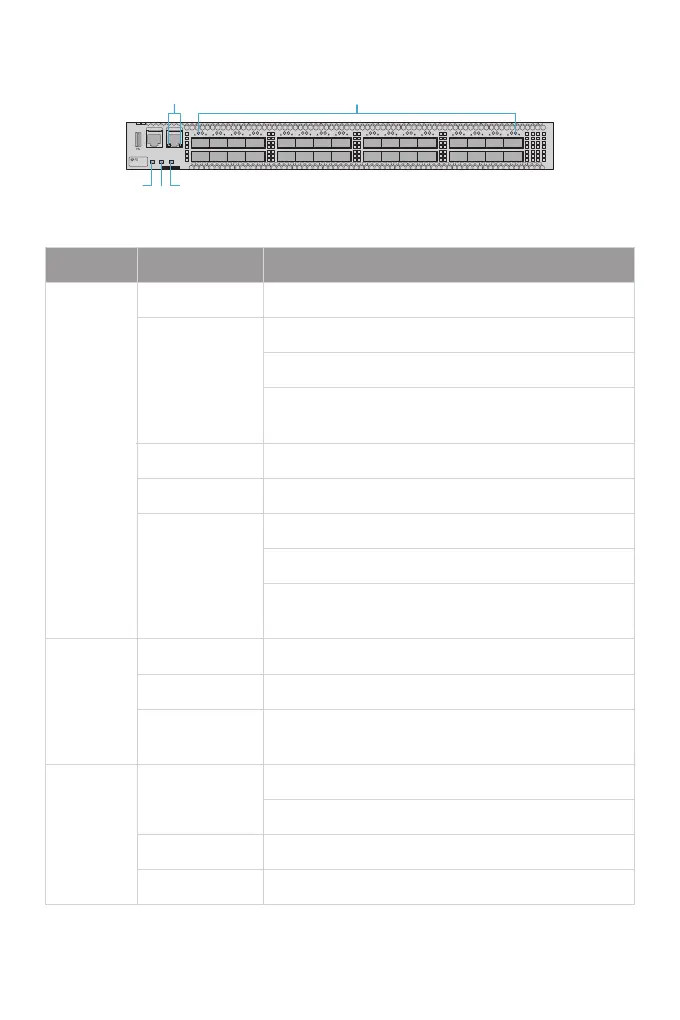

FS N8560 Series User Manual

N8560-32C
LEDs Status Description
SYS
O
Blinking Green
Solid Red
Solid Green
The systemis powered o.
1. One of the power supply modules or fan modules fails.
2. There are less than4 fans.
3. The internal or partial temperature exceeds the warning
working temperature, and the switching service resets.
The systemis initializing.
The system is operational.
Solid Yellow
Solid Red
1. The temperature exceeds the threshold.
2. One of the fans is not in the position.
3. One of the dual power supplies is not connected with AC
power cord.
The power supply module is in an abnormal state.
PSU
Solid Green
Solid Yellow
The power supply module is operational.
One of the dual power supplies is not connected with AC
power cord.
FAN
Solid Green
Solid Red
Solid Yellow
The fan is operational.
1. The fan is in an abnormal state.
2. There are less than 4 fans.
Only 4 fans are in the position.
SYS
QSFP28Link/ACT
FAN
PSU
MGMTCONSOLE
1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F 17F 18F 19F 20F 21F 22F 23F 24F 25F 26F 27F 28F 29F 30F 31F 32F
SYS PSU FAN
Link ACT
ASSET TAG
N8560-32C

FS N8560 Series Specifications

General

Brand	FS
Model	N8560 Series
Category	Switch
Language	English
