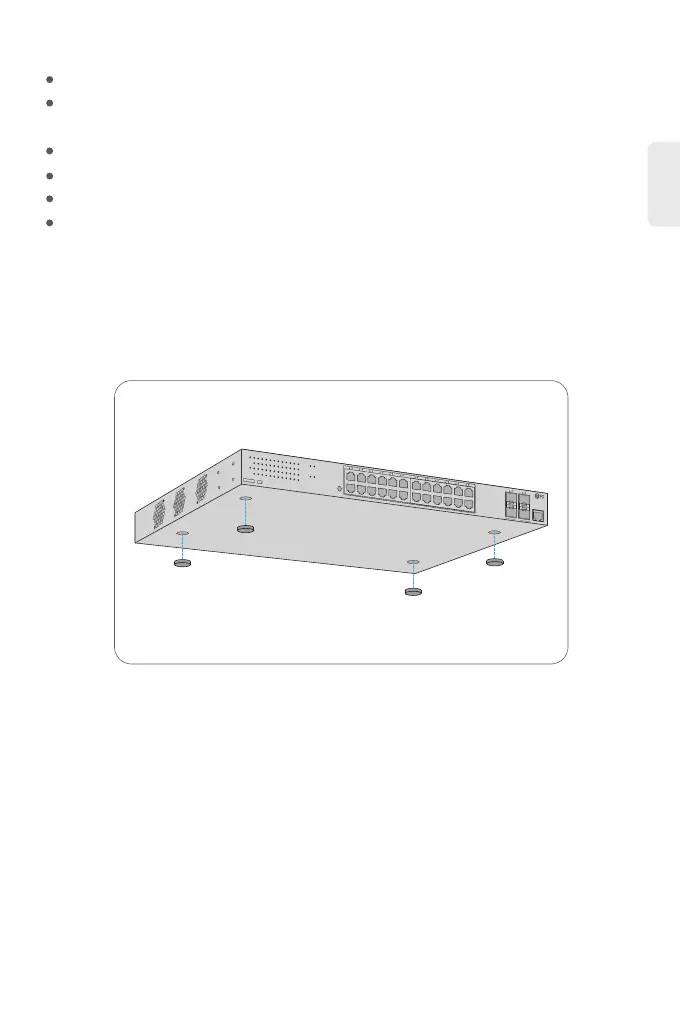

1. Attach four rubber pads to the bottom.
2. Gently place the switch on a desk.
Mounting the Switch
Site Environment:
Do not operate it in an area that exceeds an ambient temperature of 50°C.
The installation site must be well ventilated. Ensure that there is adequate air flow around
the switch.
Be sure that the switch is level and stable to avoid any hazardous conditions.
Do not install the equipment in a dusty environment.
The installation site must be free from leaking or dripping water, heavy dew, and humidity.
Ensure rack and working platforms are well earthed.
Desk Mounting
RESET
Link/Act
Link/Act
PoE
PoE
