FS S2805S Series User Manual

EN
Rack Mounting

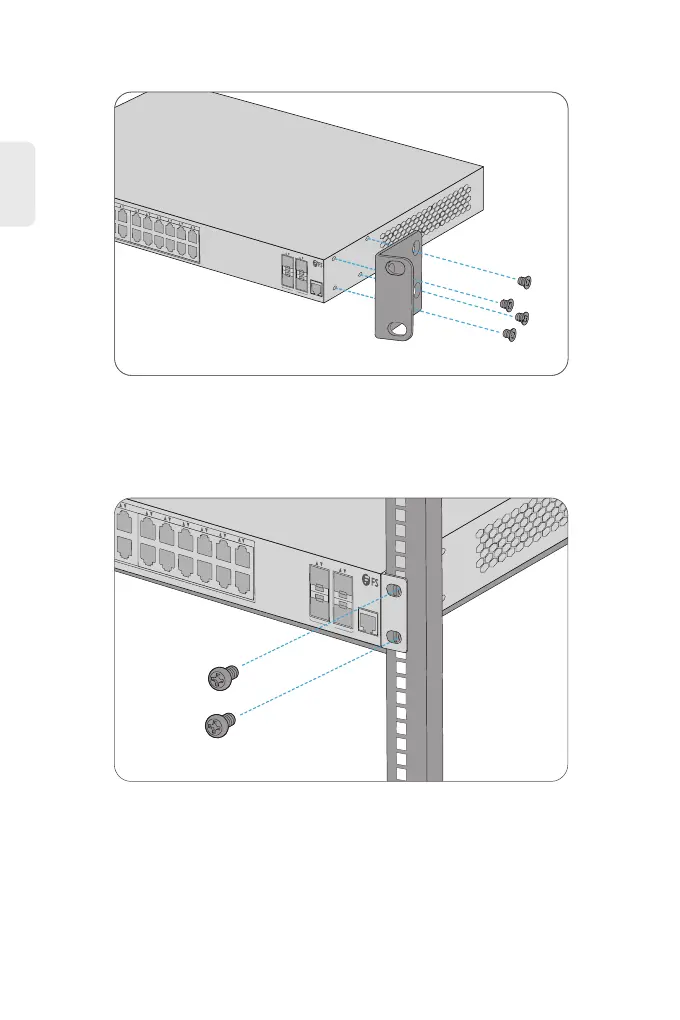

1. Fix the mounting brackets to the two sides of the switch with supplied M3 screws.
2. Attach the switch to the rack with four M6 screws and cage nuts.
