Solid Green The system works properly.
Solid Yellow
1. The temperature reaches the warning threshold.
2.Only 3 fans are in the position.
3.One of the dual powers is not connected with the AC
power cord.
LEDs Status Description
O
Solid Red
The system is powered o.
Blinking Green Initialization is in progress.
1. One of the modules of the system fails.
2. There are less than3 fans.
3. The internal or partial temperature exceeds the
temperature limit,and the switching service resets.

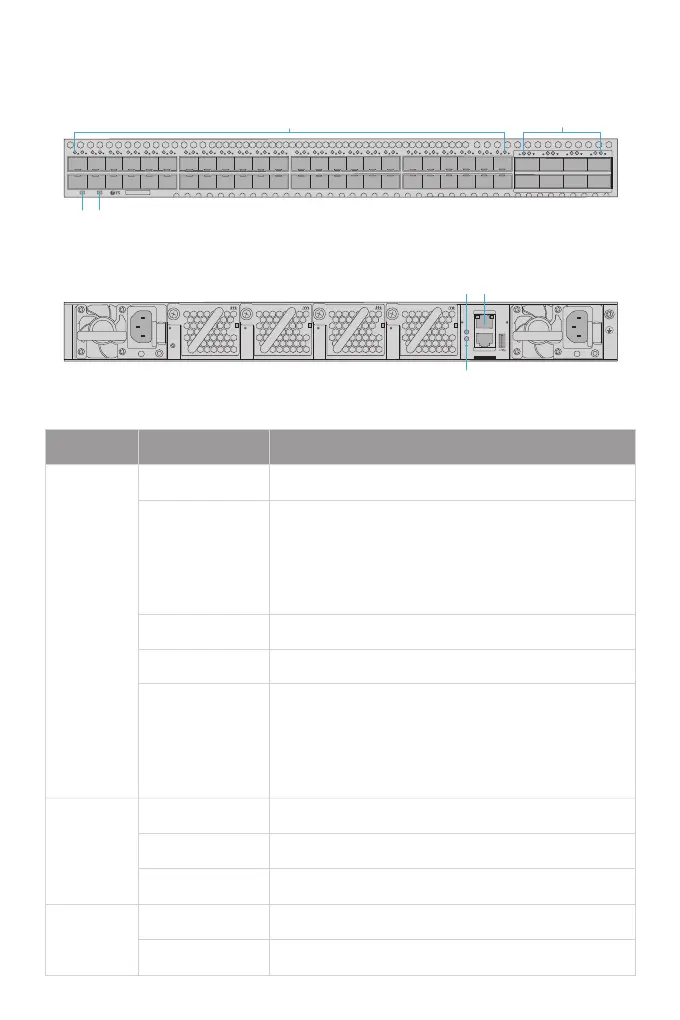

STATUS
S5860-48SC
S5860-48SC
1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F 17F 18F 19F 20F 21F 22F 23F 24F 25F 26F 27F 28F 29F 30F 31F 32F 33F 34F 35F 36F 37F 38F 39F 40F 41F 42F 43F 44F 45F 46F 47F 48F
100G
49F 50F 51F 52F 53F 54F 55F 56F
Status ID
SFP+ QSFP28
Status Status Status
Status
FUNC
ID
Link ACT
Status
PWR1
PWR2
1 2 3
4
MGMT
CONSOLE
AFM-S48SC-FB AFM-S48SC-FB AFM-S48SC-FB AFM-S48SC-FB
STATUS ID
STATUS
ID MGMT
MGMT
O The MGMT port is NOT connected.
Green The MGMT port is connected at 10/100/1000 Mbps.
Blinking Yellow The MGMT port is transmitting or receiving data.
O
ID
The locator is controlled by CPLD by default.
Solid Blue The locator is controlled by O&M personnel remotely.
