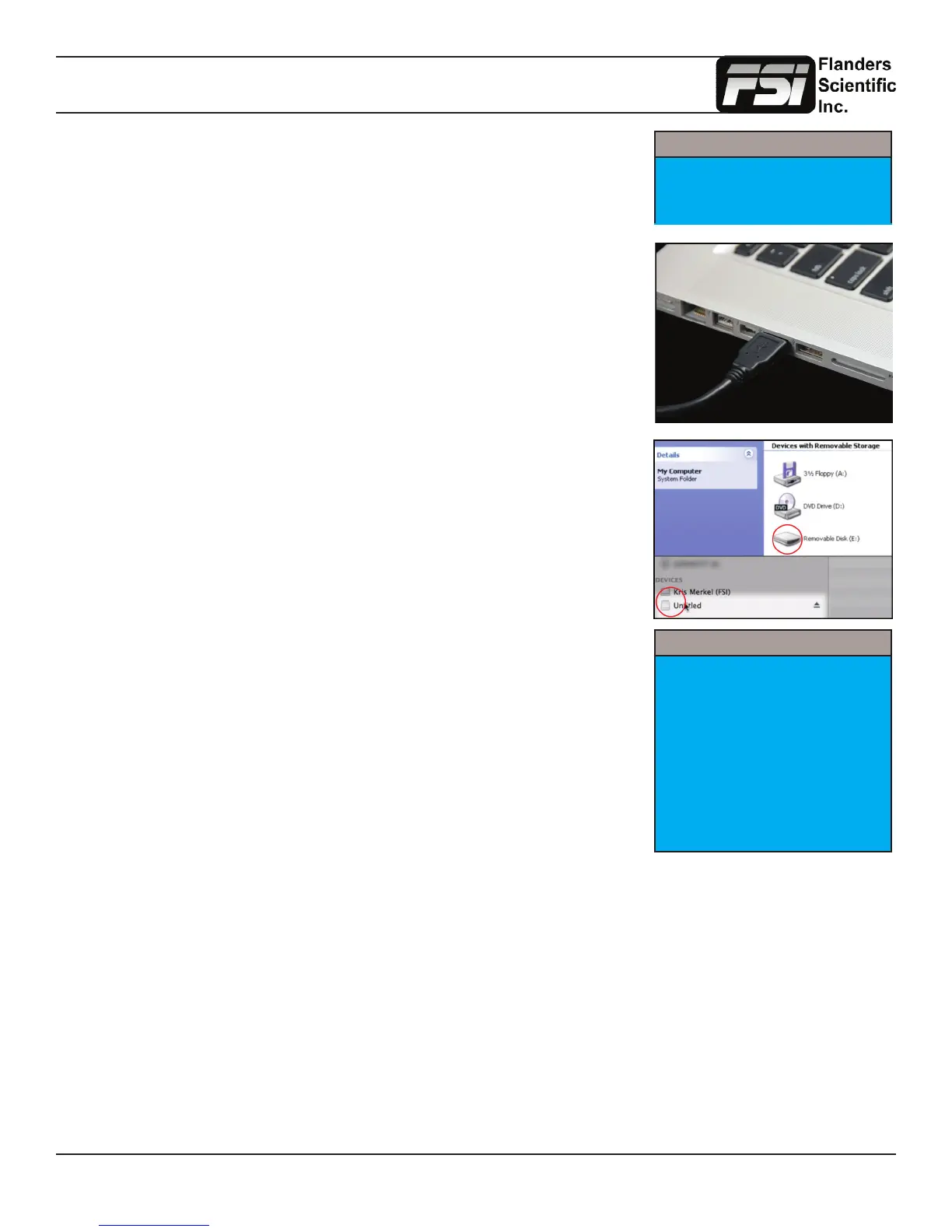

Verify that the monitor’s update mode is turned on via the System Menu:
System -> UDisk Mode -> On
Connect the FSI update cable that came with your monitor (USB to RJ45) to an
available USB port on your computer.
After a short time, the computer should recognize the FSI monitor as a mass storage
device, viewable in Mac’s Finder or PC’s My Computer.
Drag and drop the ditXX.dat le(s) you created to the monitor. All 16 DIT LUTs can be
transfered at one time.
Color Management Menu
Select Menu \ Color Management \ Update LUT to save the LUT(s).
Once saved the DIT LUTs can be turned on/off by assigning DIT 3D LUT to a funciton
key.
The active 3D LUT that is enabled by the function key can be selected with the DIT 3D
LUT Channel Selection on the Color Management Menu.
As of rmware version 1.0.00_1960 you can also simply use the up and down arrow
keys while the DIT LUT funciton is active to toggle between 3D DIT LUTs you have
loaded to the monitor.
NOTE: When a DIT LUT is active it will impact the Scope and Measurement feature
values accordingly to reect your DIT LUT’s impact on the signal. This is in contrast
to the simpler Log mode selections found on the Video menu, which will not change
scope or measurement values even when active.
Color Management
Red Bias 50
Green Bias 50
Blue Bias 50
Color Space Rec 709
Video Clipping Off
Lut Bypass None
Update LUT ----
DIT 1D LUT Channel 1
DIT 3D LUT Channel 1
System
LED Light On
UDisk Mode On
DHCP On
