FSR Compass S2 - MIC Input; Audio Output Connections

L
+
-
+
-
R
SH

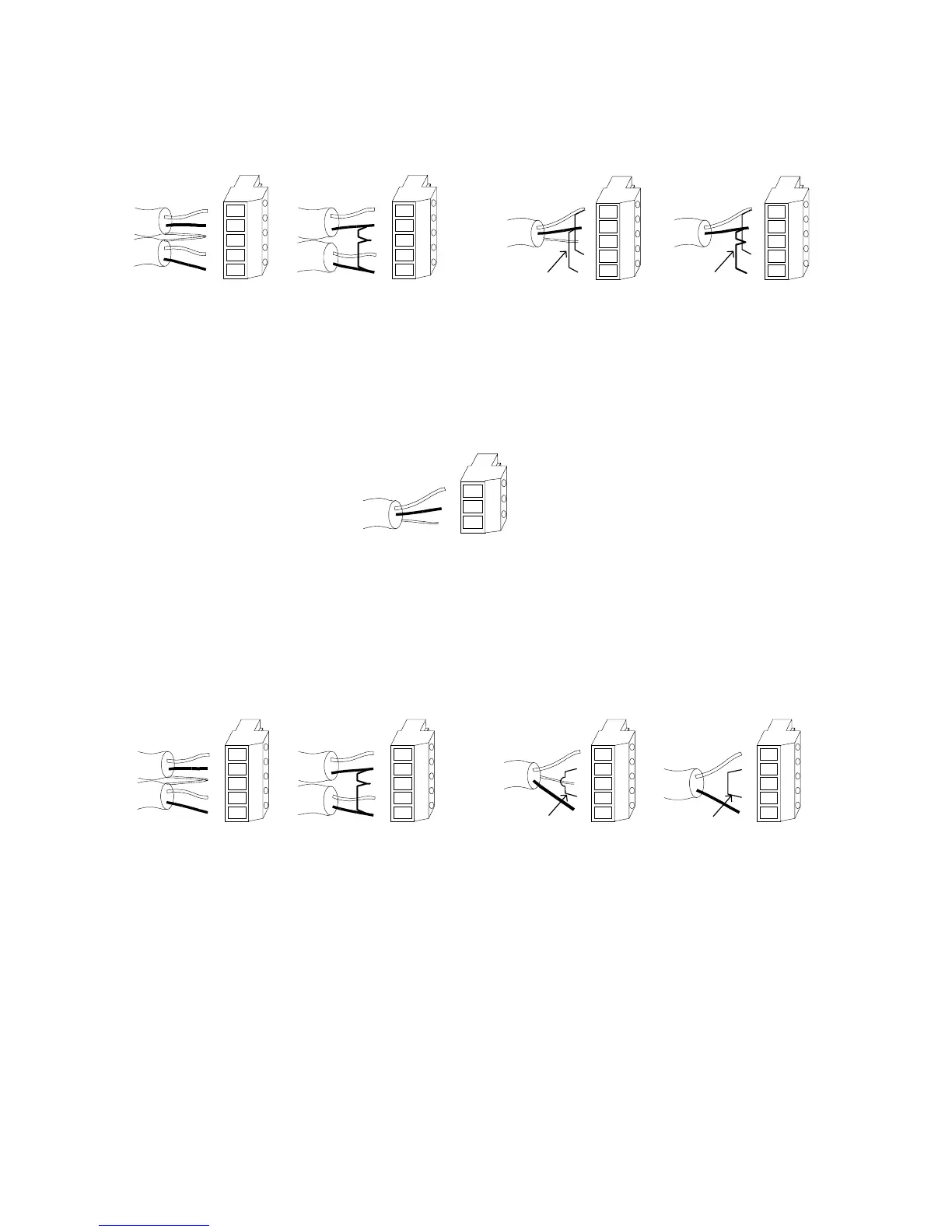

Stereo Input Connector Wiring
L
+
-
+
-
R
SH
Balanced Wiring Unbalanced Wiring
Jumper
L
+
-
+
-
R
SH
Mono Input Connector Wiring
L
+
-
+
-
R
SH
Balanced Wiring Unbalanced Wiring
Jumpers
Input Connector Wiring
Jumpers
MIC Input
The MIC Input is a non-switched input designed to accept input from a microphone. The MIC Input may be mixed with
audio from the selected A/V source as well as the Line Input. Mating connectors are provided with the unit to facilitate
connection of the MIC Input. Connector wiring is shown below:
MIC Input Connector Wiring
+
-
SH
Audio Output Connections
Main and Preview stereo audio outputs are provided. Mating connectors are provided with the unit to facilitate
connection of output devices. Wiring of the connectors is illustrated below:
L
+
-
+
-
R
SH
Strereo Output Connector Wiring
L
+
-
+
-
R
SH
Balanced Wiring Unbalanced Wiring
Jumper
L
+
-
+
-
R
SH
Mono Output Connector Wiring
L
+
-
+
-
R
SH
Balanced Wiring Unbalanced Wiring
Jumper
Jumper
Output Connector Wiring
Compass S
2
9
