6.1 LITTLE BRUTE REWORK KIT; PARTS LIST AND DIAGRAM
All Little Brute Puller Units with serial numbers equal to or higher than the serial numbers in Table 6.0-1 have a
cartridge trigger assembly, as shown in Figure 6.1-1. This trigger configuration can be readily identified by the
brass pushbutton (the previous trigger assembly is identified by an aluminum pushbutton - see Section 6.3).
A diagram of the Little Brute Puller Unit is shown in Figure 6.1-1, with parts for the Rework Kit corresponding
to Table 6.1-1.
Table 6.1-1
Parts List for Little Brute Rework Kit
Piece Number
Quantity
Description
Part Number
Included in Kit
1
1
Adapter, LB Air Seal (seal and fitting)
2339-001
LB-CT-RK
2
4
Screw, SHC (8-32UNCX 3/8)
1026-002
LB-CT-RK
3
1
Pushbutton, Brass
1187-623
LB-CT-RK and FTI-CT-RK
4
1
Retaining Ring, Internal
1187-624
LB-CT-RK and FTI-CT-RK
5
1
Sleeve, Puller Handle Trigger
3196-001
LB-CT-RK and FTI-CT-RK
6
1
Adapter, LB Hydraulic
2039-001
LB-CT-RK
7
1
Valve, Cartridge Trigger
1187-622
LB-CT-RK and FTI-CT-RK
8
1
O-Ring
1046-012
LB-CT-RK
See Section 6.2
1
Kit, LB Seal (LB-SK)
8000-484
LB-CT-RK

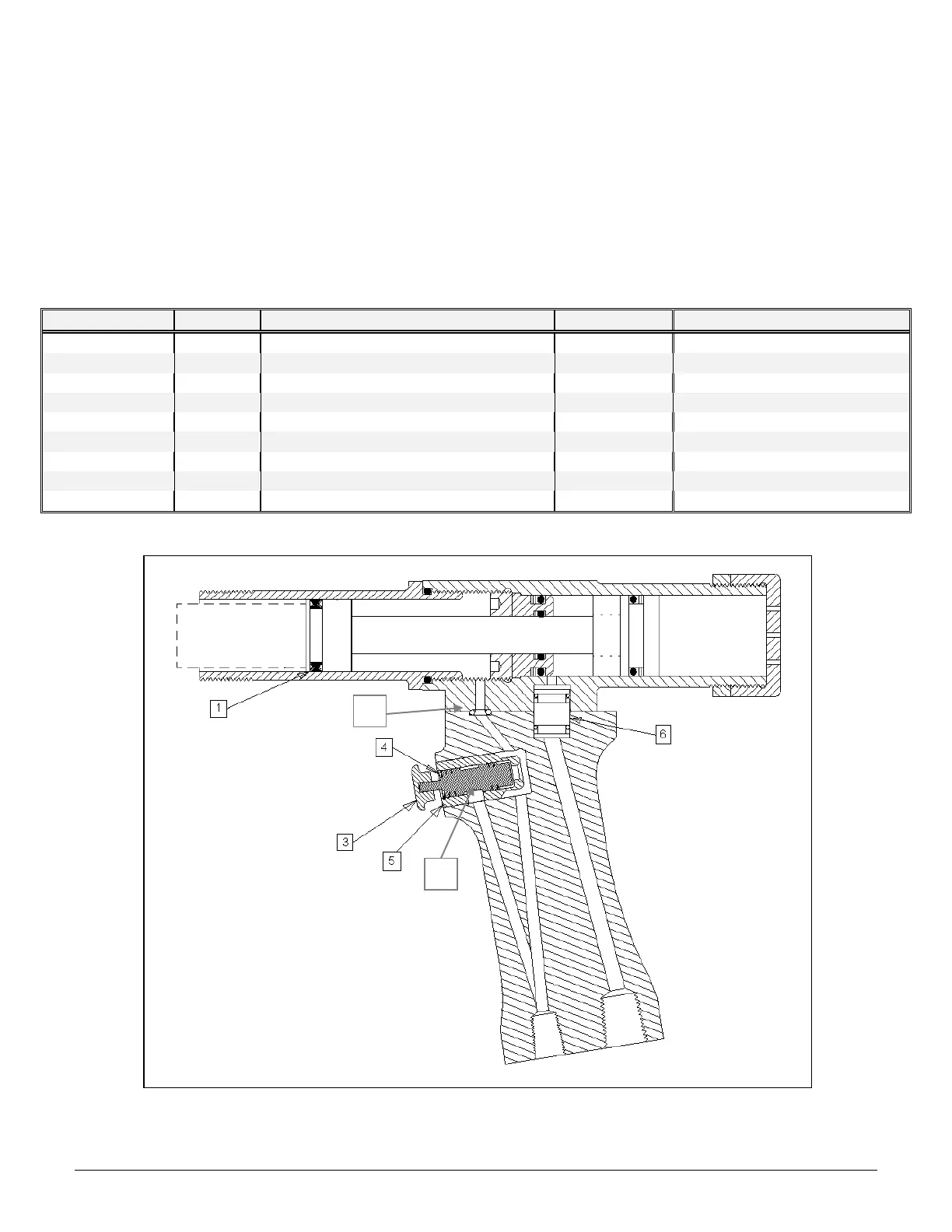

Figure 6.1-1
Diagram of Little Brute Rework Kit Parts (LB-CT-RK)
7
8
