6.2 LITTLE BRUTE SEAL KIT; PARTS LIST AND DIAGRAM
All Little Brute Puller Units with serial numbers less than the serial numbers on Table 6.0-1 will use Piece
Number 2 to replace the seal in the trigger assembly (see Section 6.3). A diagram of the Little Brute Puller Unit
is shown in Figure 6.2-1, with parts for the seal kit corresponding to Table 6.2-1.
Table 6.2-1
Little Brute Seal Kit (LB-SK)
Piece Number
Description
Part Number
Quantity
1
Valve, Cartridge Trigger
1187-622
1
See Section 6.3, pc. 2
Seal, LB Handle
2040-001
1
2
Ring, Backup
1046-044
2
3
O-Ring
1046-045
2
4
O-Ring
1046-012
1
5
O-Ring
1046-016
1
6
O-Ring
1046-002
2
7
Ring, Backup
1046-003
2
8
O-Ring
1046-014
1
9
Ring, Backup
1046-015
1
10
Seal, Omni
1046-017
1
11
O-Ring
1046-112
1

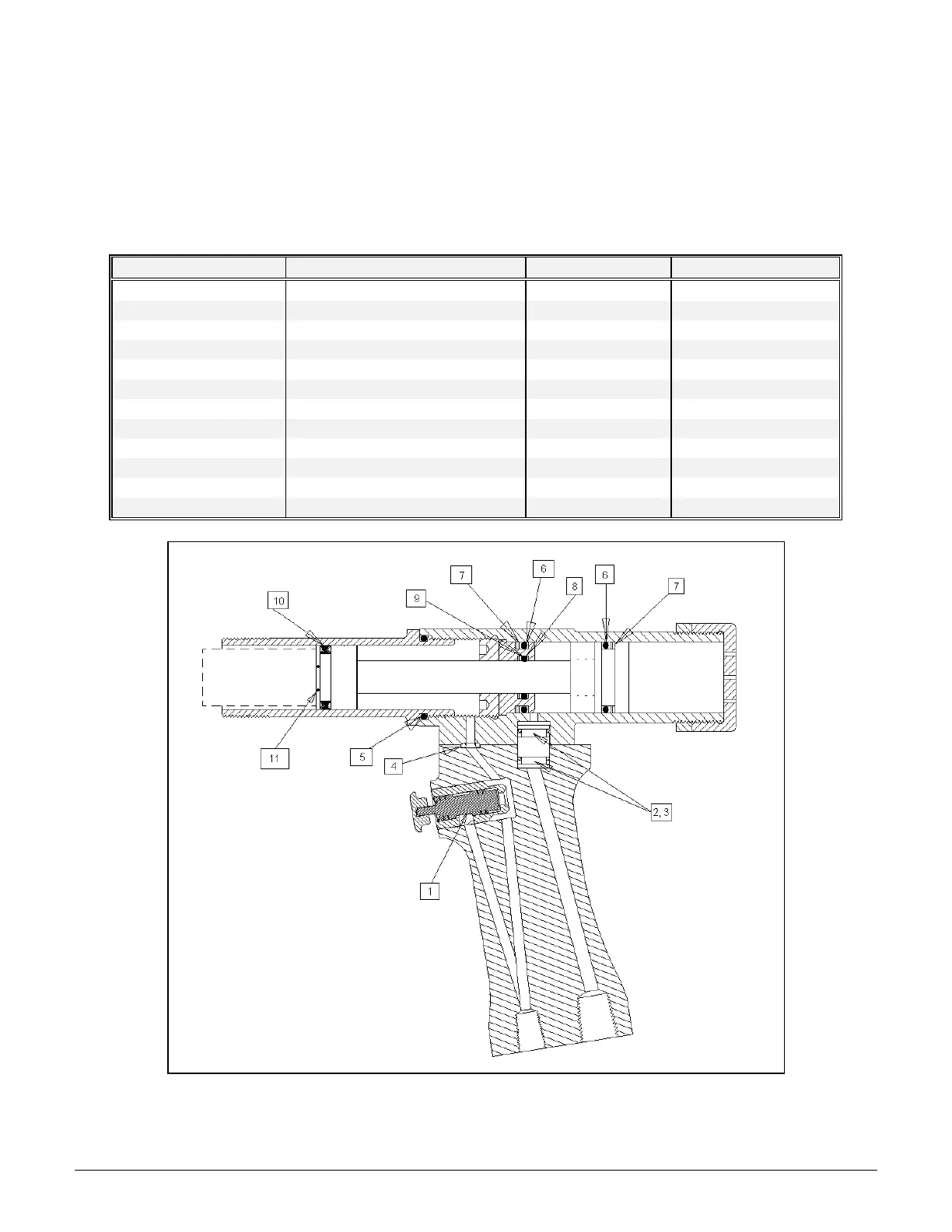

Figure 6.2-1
Diagram of Little Brute Assembly (LB-SK)
