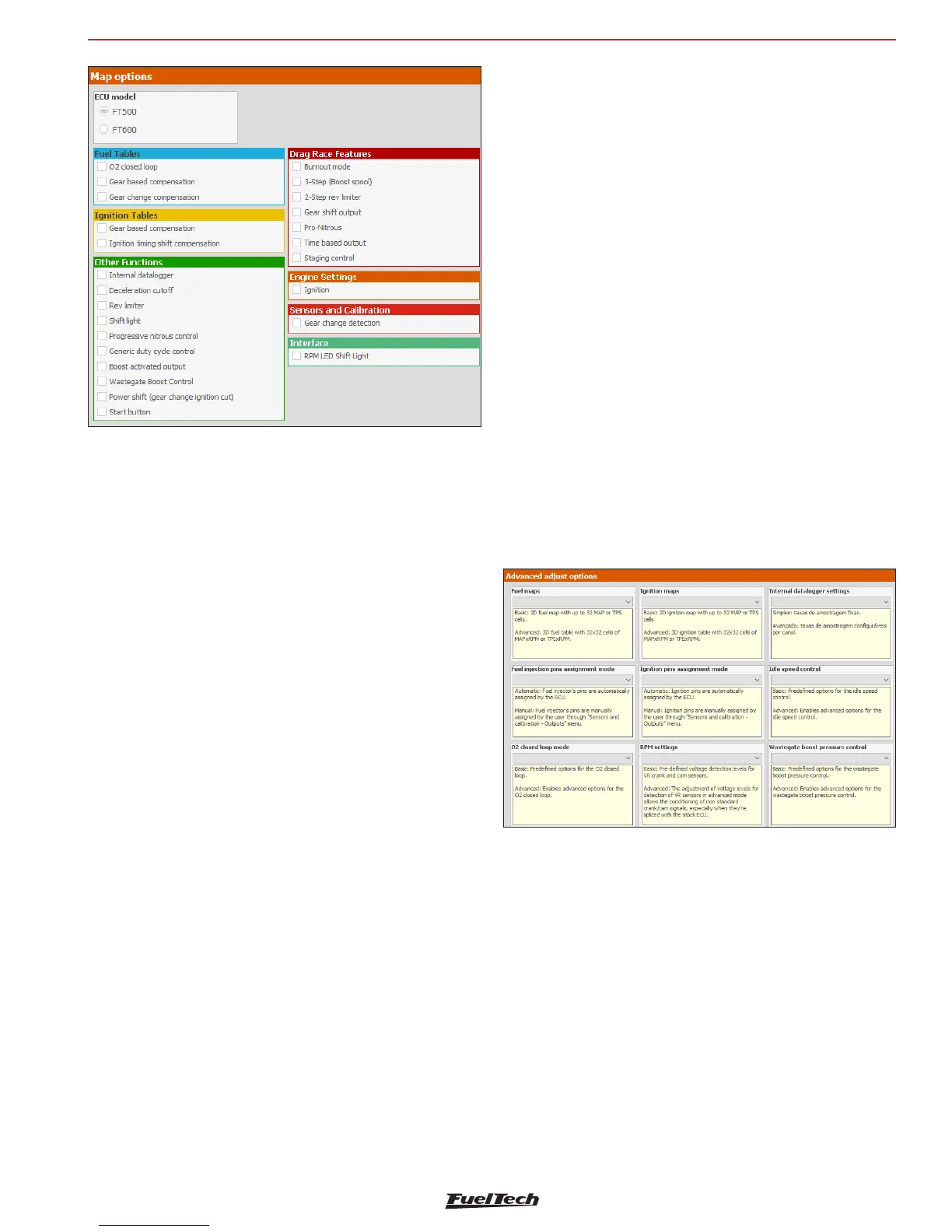

7.11 Advanced map options
There are some options that are only available through FTManager. To
access them, go to “Engine Settings” Menu:
Injection
Fuel maps
• Basic - fuel maps are in a 2D table that relates MAP x injection
time or TPS x injection time.
• Advanced - 3D MAP x RPM or TPS x RPM fuel table with 32x32
cells.
Fuel injection pins assignment mode
• Automatic - fuel injector’s pins are automatically assigned by the
ECU.
• Manual - fuel injector’s pins are manually assigned by the user
through “Sensors and Calibration - Outputs” menu.
O2 closed loop mode
• Basic - predefined for the O2 closed loop.
• Advanced - release advanced options such as PID control and
loop time.
Ignition
Ignition maps
• Basic - ignition maps are in a 2D table that relates MAP x timing
or TPS x timing.
• Advanced - 3D MAP x RPM or TPS x RPM timing table with
32x32 cells.
Ignition pins assignment mode
• Automatic - ignition pins are automatically assigned by the ECU.
• Manual - ignition pins are manually assigned by the user through
“Sensors and Calibration - Outputs” menu.
RPM settings
• Basic - Pre-defined voltage detection levels for VR crank and cam
sensors.
• Advanced - The adjustment of voltage levels for detection of
VR sensors in advanced mode allows the conditioning of non
standard crank/cam signals, especially when they’re spliced with
the stock ECU
Other Function
Internal Datalogger
• Basic: fixed sampling rates.
• Advanced: configured sampling rates per channel.
Idle speed control
• basic - predefined options for controlling idle. Meet 99% of the
vehicles.
• advanced - releases advanced options such as PID control, target
approach RPM, deadband, approach RPM, etc.
Wastegate boost pressure control
• Basic - Predefined options for the wastegate boost pressure
control.
• Advanced - Enables advanced options for the wastegate boost
pressure control.
