FT500 SFI / FT500LITE SFI
40
Sensors and actuators

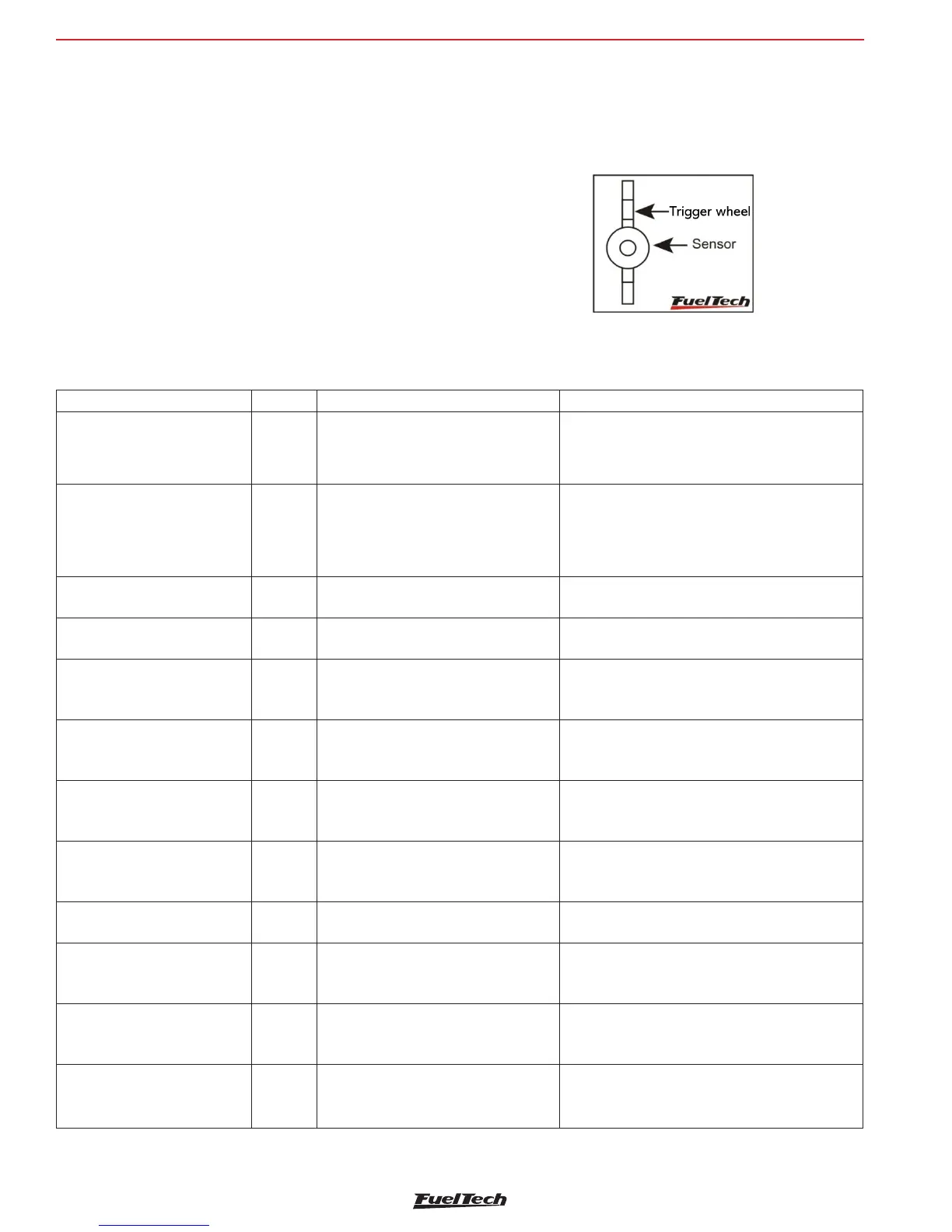

The crank Wheel should be aligned with the sensor
For 36-1 trigger wheels, the minimum diameter recommended is
100mm (4”). Trigger wheels with smaller diameters can be fabricated,
but reading errors may occur and the engine may not work.
Crankshaft trigger sensor
When controlling the ignition with a trigger wheel, it is necessary to
have a sensor that reads the signal from its teeth and informs the
engine position to the injection. There are two types of crankshaft
trigger sensors:
VR sensor: this is the type that is most commonly used in cars
nowadays, especially with 60-2 and 36-1 trigger wheels. One of
its main characteristics is that it does not receive 12V or 5V; it only
generates an electromagnetic signal based on induction. It might have
2 or 3 wires (the third wire is an electromagnetic shield).
Crank trigger sensors table
Sensor Type Cars where it’s usually found Pin connection
Bosch 3 wires VR
Chevrolet Corsa 8V MPFI, Omega 2.2,
4.1 and 2.0 (alcohol), S10 2.2,Silverado,
Astra, Kadett MPFI, Vectra, Calibra, VW Golf,
Passat, Alfa 164 3.0
Pin 1: red wire (2 core shielded cable)
Pin 2: white wire (2 core shielded cable)
Pin 3: shield (2 core shielded cable)’
Bosch 3 wires VR
Chevrolet Omega 2.0 Gasolina and
3.0, Corsa 16V/GSi, Tigra, Fiat Marea
5 Cilindros, Citroën ZX 2.0, Xantia 2.0,
Peugeot 306 2.0 16V, Peugeot 405MI
Fiat Linea 1.9 16V
Pin 1: white wire (2 core shielded cable)
Pin 2: red wire (2 core shielded cable)
Pin 3: shield (2 core shielded cable)
Ford 2 wires
Fiat 2 wires
VR
Ford Zetec, Ranger V6
Fiat Punto/Fiat 500 1.4 Turbo
Pin 1: red wire (2 core shielded cable)
Pin 2: white wire (2 core shielded cable)
Siemens 2 wires VR Renault Clio, Scènic
Pin A: red wire (2 core shielded cable)
Pin B: white wire (2 core shielded cable)
Magneti Marelli
(P/N Fiat 464.457.31)
(P/N Marelli 4820171010)
VR
Fiat Palio, Uno, Strada, Siena 1.0 – 1.5
8V MPI
Pin +: red wire (2 core shielded cable)
Pin – : white wire (2 core shielded cable)
Pin S : shield (2 core shielded cable)
Delphi 3 wires (3 teeth wheel) Hall GM S10 4.3 V6
Pin A: 5V (FT green/red wire)
Pin B: battery negative
Pin C: red wire (2 core shielded cable)
Fiat engine E-TorQ 1.8 16V Hall
Fiat engine E-TorQ
1.8 16V
Pin 1: battery negative
Pin 2: red wire (2 core shielded cable)
Pin 3: 5V (FT green/red wire)
VW TotalFlex/Gol Gti Hyundai
Tucson 2.0 16V
Hall
all VW AP TotalFlex
Hyundai Tucson 2.0 16V
Pin 1: 5V (FT green/red wire)
Pin 2: red wire (2 core shielded cable)
Pin 3: battery negative
Denso (Suzuki Bickes) VR Suzuki Hayabusa e Suzuki SRAD
Pin 1: red wire (2 core shielded cable)
Pin 2: white wire (2 core shielded cable)
Mitsubishi 1.6 16V (2 teeth) Hall Mitsubishi Colt e Lancer
Pin 1 - black: battery negative
Pin 2 - brown: red wire (2 core shielded cable)
Pin 3 - red: 5V (FT green/red wire)
VW/Audi 20V3 wires Bosch –
0261210148
VR
Audi A3 1.8 20V
VW Golf 1.8 20V/Golf 1.6, 2.0/Bora
2.0– EA111
Pin 1: shield (2 core shielded cable)
Pin 2: white wire (2 core shielded cable)
Pin 3: red wire (2 core shielded cable)
Denso 3 wires Hall Honda Civic Si
Pin 1: 5V (FT green/red wire)
Pin 2: shield (2 core shielded cable)
Pin 3: red wire (2 core shielded cable)
Hall Effect sensor: it is usually found on 2, 3 and 4-tooth trigger
wheels and some 36-1 and 60-2 types. It receives a 5V or 12V
feed and emits a square wave signal. It invariably has 3 pins: voltage,
negative and signal.
