Consumables
Info: Ensure machine is idle before opening the Front Cover.
1-2: Lift up lever marked 'A’ and pull down release handle.
3: Gently remove the cartridge as indicated on the screen. Place used cartridge in the
bag supplied in the package.
Place new Drum Cartridge (with protective shield) in the cartridge slot resting on the
release handle. Load cartridge in direction of the arrow.
Peel off the seal from the top of the cartridge shield.
Hold the Drum Cartridge firmly and slide cartridge into the machine using the light
orange tab.
Remove protective shield.

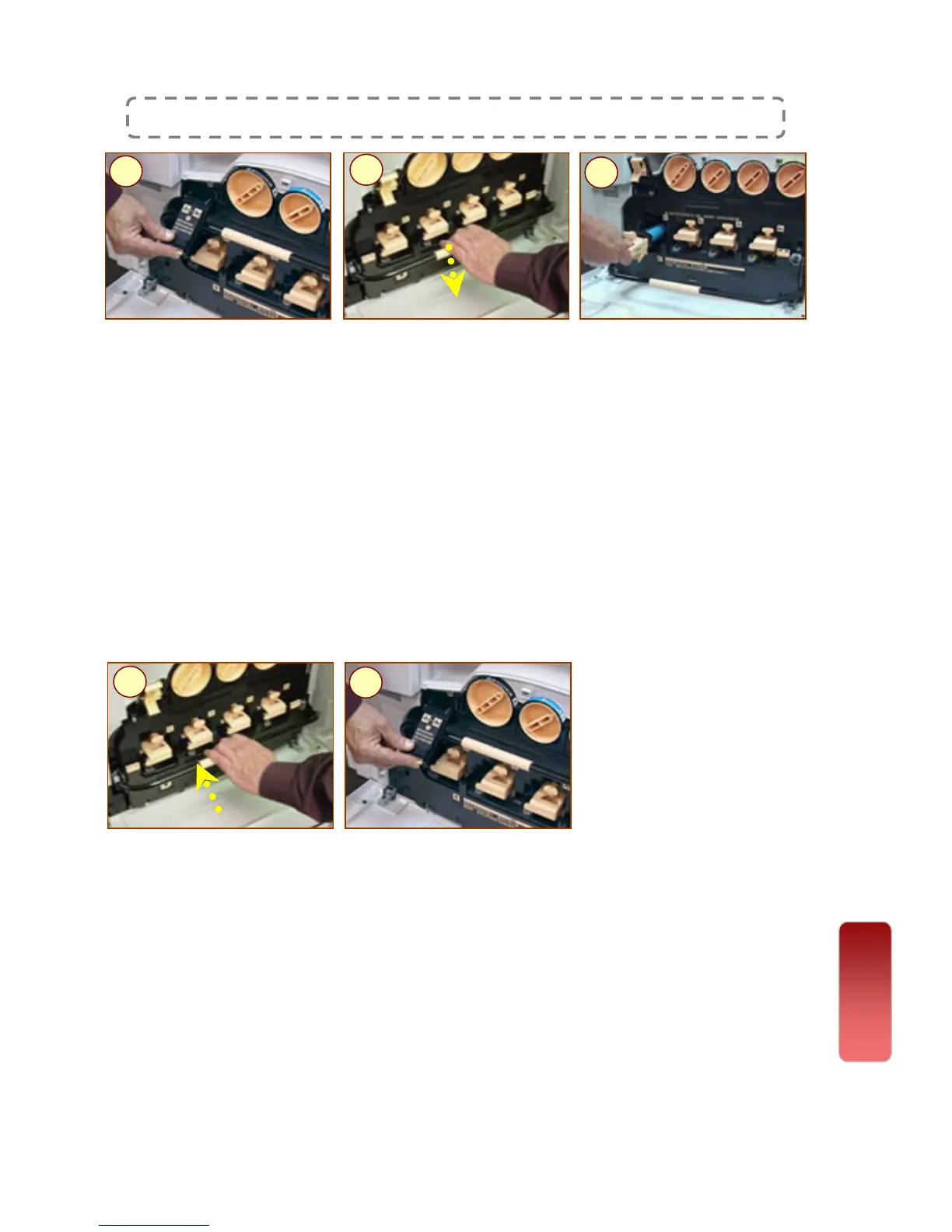

Replacing Drum Cartridge
1
2
3
4
5
4: Lift up the release handle in the middle to lock the Drum Cartridge.
5: Push the lever marked 'A' handle latch down until it locks. Close the Front Door.
WARNING! Do not expose the Drum Cartridge to the direct sunlight or strong
indoor fluorescent lighting. Do not touch or scratch the surface of the Drum.
Replacing Consumables
