2 Product Overview
44
Product Overview
2

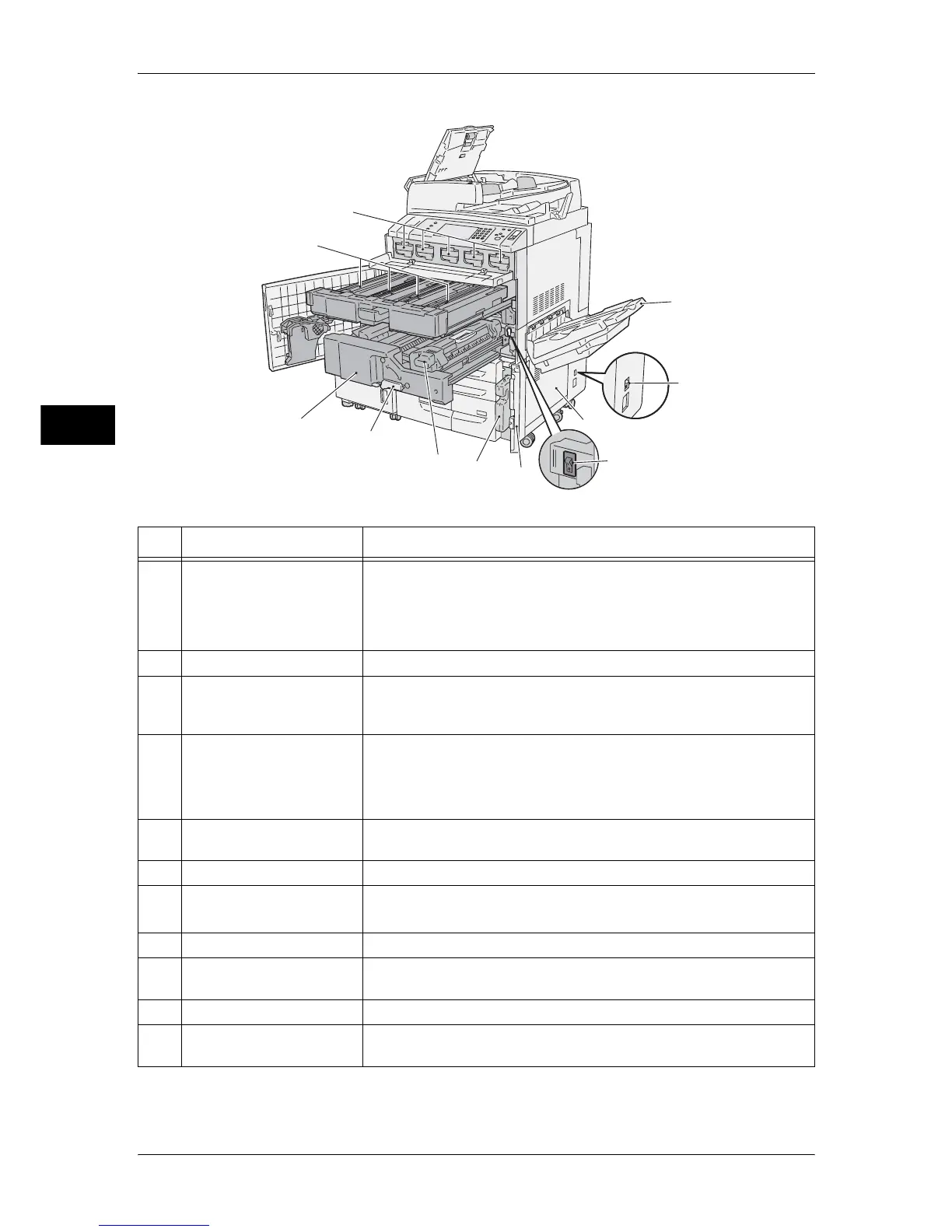

îš„Inside and right views of the machine
No. Component Function
1 Output tray Receives output paper.
Two types of trays are available: a normal output tray and an optional
offset stacking tray.
When the optional offset stacking tray is attached and A4 or smaller size
paper is to be output, do not use the extension flap.
2 Ground fault interrupter Automatically turns the machine off when a current leakage is detected.
3 Lower-right cover Open this cover to clear paper jams.
When a finisher is attached, open the front cover of the finisher first, and
then open this lower-right cover.
4 Main power switch Switches the main power of the machine on and off. Always follow the
instructions of the system administrator.
Important • Always switch the power off before switching the main power off.
For details, refer to "Power Source" (P.50)
5 Waste toner bottle cover Open this cover to access the insides of the machine to replace the
waste toner bottle.
6 Waste toner bottle Used to collect waste toner.
7 Fusing unit Fuses toner on paper.
Important • Do not touch this unit as it is extremely hot.
8 Lever Used to draw out the transfer unit.
9 Transfer unit Transfers toner images on the drum to paper. Open this cover to access
the insides of the machine to clear paper jams.
10 Drum cartridges Contain photoconductors. R1, R2, R3, and R4 are installed from the left.
11 Toner cartridges Contain Black (K1 and K2), Cyan (C), Magenta (M), and Yellow (Y)
toner (image forming powder).
1
2
5
3
6
7
8
9
11
10
4
To Next Page
