Machine Components
45
Product Overview
2

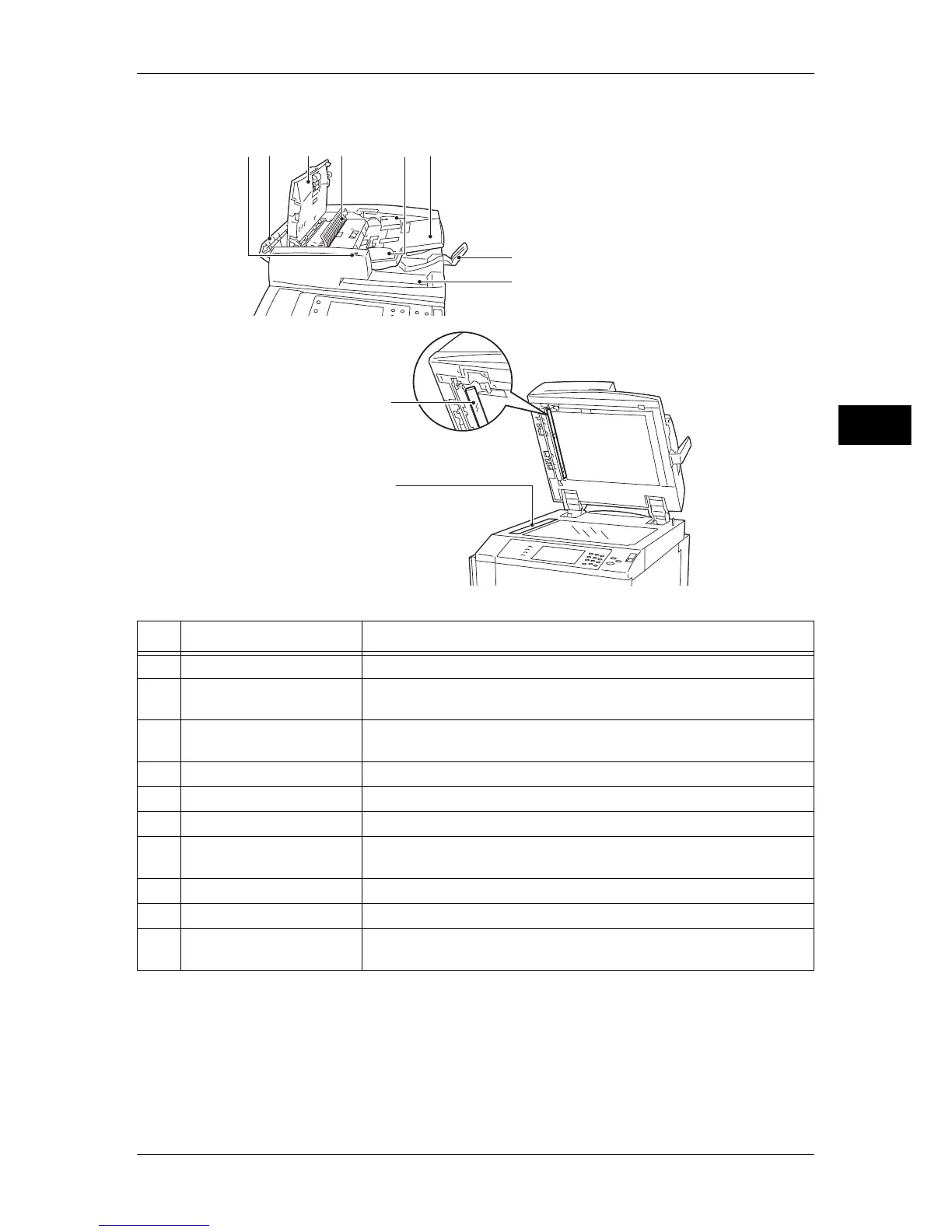

Duplex automatic document feeder
Note • In this guide, the duplex automatic document feeder is referred to as the “document feeder”
or “DADF”.
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Left cover The left cover slightly opens when the top cover is opened. Open this
cover widely to clear paper jams.
3 Top cover Open this cover to access the insides of the machine to clear paper
jams.
4 Inner cover Open this cover to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document feeder tray Load documents here.
7 Document stopper Used when copying or scanning large size documents such as A3.
Open the stopper rightward when using it.
8 Document output tray Scanned documents are delivered here.
9 Optical glass Scans the backside of a loaded document.
10 Constant velocity transport
glass
Scans a loaded document.
8
7
12 3 5 6
4
10
9

Fuji Xerox ApeosPort-IV C5570 Specifications

General

Print Resolution	1200 x 2400 dpi
Scan Resolution	600 x 600 dpi
Functions	Print, Copy, Scan, Fax
Duplex Printing	Yes
Fax Transmission Speed	33.6 kbps
Operating System Compatibility	Windows, Mac OS, Linux
Print Speed	55 ppm (color and monochrome)
Monthly Duty Cycle	300, 000 pages
Connectivity	Ethernet, USB
Paper Size	A3, A4, A5, B4, B5
Memory	2 GB
Hard Disk Drive	160 GB
Copy Speed	55 cpm (black/white and color)
