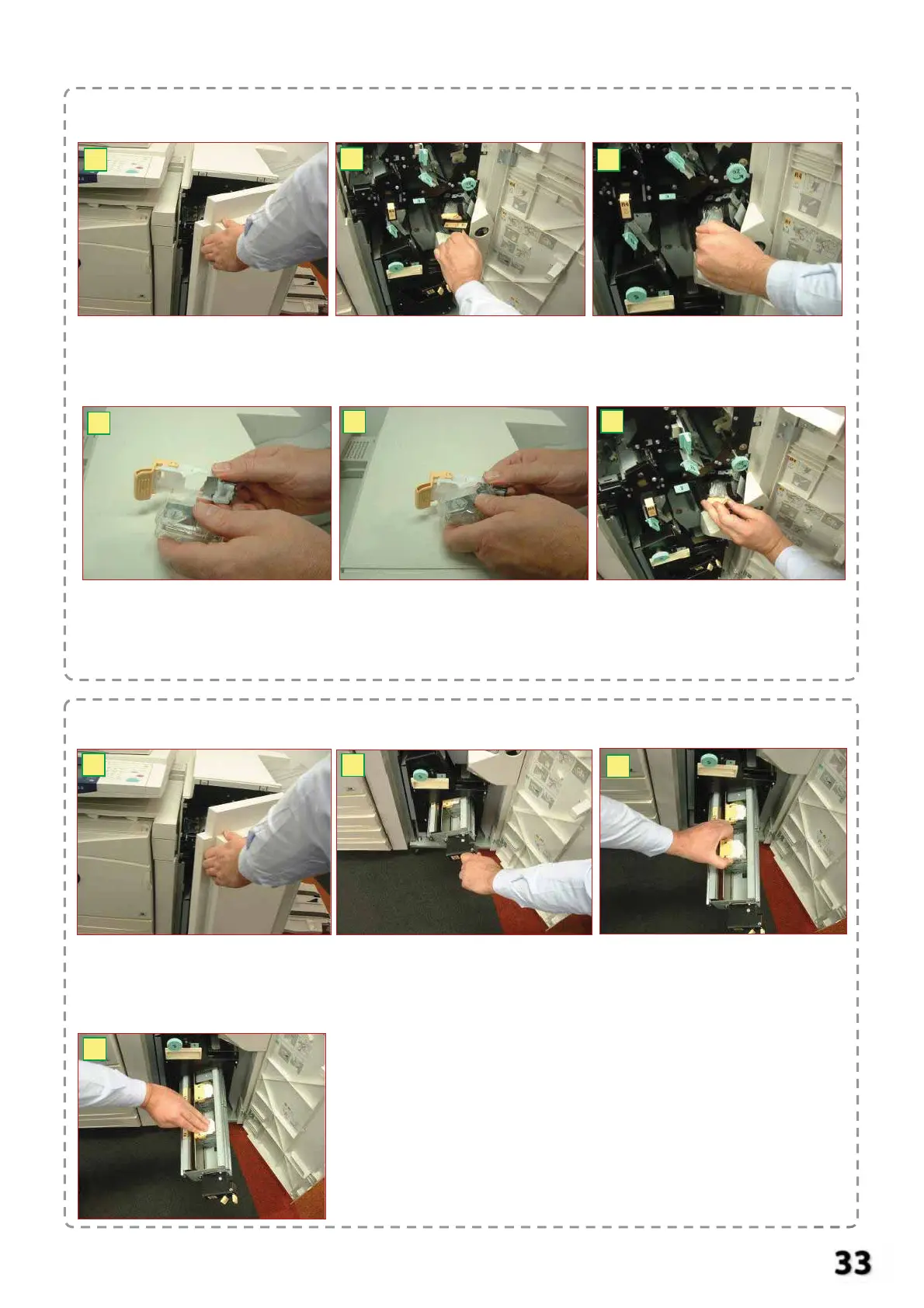

Replacing Consumables
Replacing R1 Finisher Staple Cartridge
6: Insert the cartridge into
the machine. Close the
Finisher Front Door.
Replacing R2 & R3 Booklet Staple Cartridges
1: Ensure machine is idle
before opening the A1
Finisher Door.
2: Rotate the Stapling Unit
to the right.
3: Pull out staple cartridge
handle to remove the
used cartridge.
4: Unpack and install the
new cartridge.
5: The cartridge will click
into place when it is
installed correctly.
4: Unpack and install the new cartridge. The cartridge will
click into place when it is installed correctly.
Return the Stapling Unit to its original position. Close the
Finisher Front Door.
1: Open the Finisher Door.
2: Pinch the two Booklet
Maker access handles, and
pull out the Stapling Unit.
3: Squeeze the Staple
Cartridge handles and pull
to remove the used
cartridge.
For used cartridges disposal/collection, please call us @ 1-300-88-1163.
