Maintenance
3

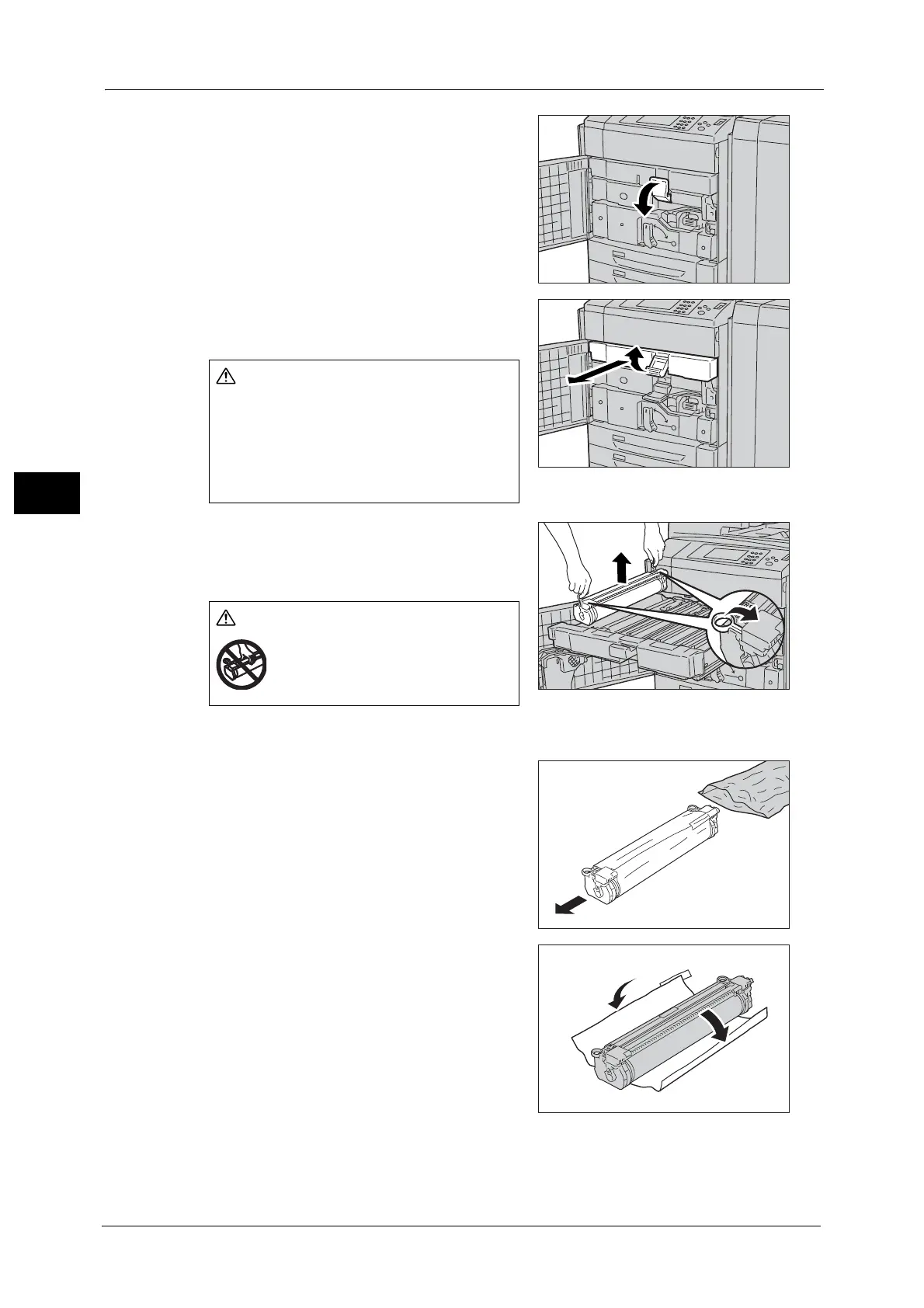

3 Pull down the handle [R1-R4].
4 Grip the handle of the unit and pull out the
unit.
5 Remove the drum cartridge upward while
holding rings provided at the both ends of the
drum cartridge.
6 Place the replaced drum cartridge into the empty container.
7 Open a bag including the new drum cartridge
and take it out.
Important • Do not touch or scratch the surface of the
drum when you take it out from the bag.
8 Unwrap a sheet covering the drum cartridge
and place it under the drum cartridge.
Make sure to pull out the unit slowly.
When the unit is being pulled out with
force, the unit may possibly hit your
knees or other parts of your body
causing injuries.
Be sure to insert your fingers
into the rings when lifting the
drum cartridge up.
