Fuji Xerox ApeosPort-VI C4471

Machine Components
43
Product Overview
2

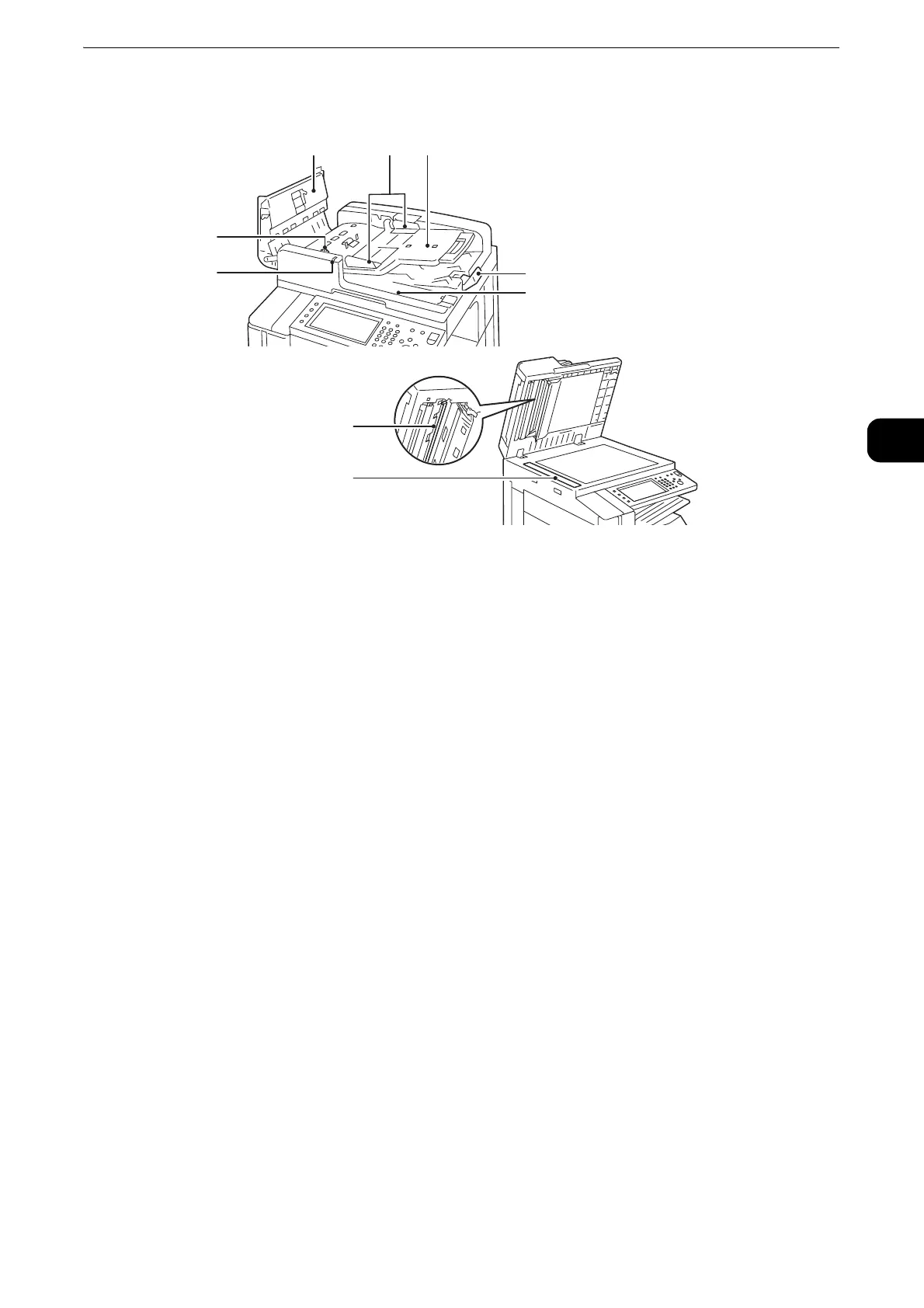

 Duplex Automatic Document Feeder B1-PC
1 Confirmation indicator
Lights up when a document is loaded correctly.
2Lever
Turn this lever to clear paper jams.
3Left cover
Open this cover to clear paper jams.
4Document guides
Use these guides to align the edges of documents.
5 Document feeder tray
Load documents here.
6 Document stopper
Prevents outputs from falling off.
7 Document output tray
Scanned documents are delivered here.
8 Side 2 constant velocity transport glass
Scans Side 2 of the loaded document.
9 Side 1 constant velocity transport glass
Scans Side 1 of the loaded document.
Note
z
In this guide, "document feeder" means both the Duplex Automatic Document Feeder B1-PC and the Duplex
Automatic Document Feeder C1-PC unless expressly restricted to one of them.
1
2
3 4 5
6
7
8
9
