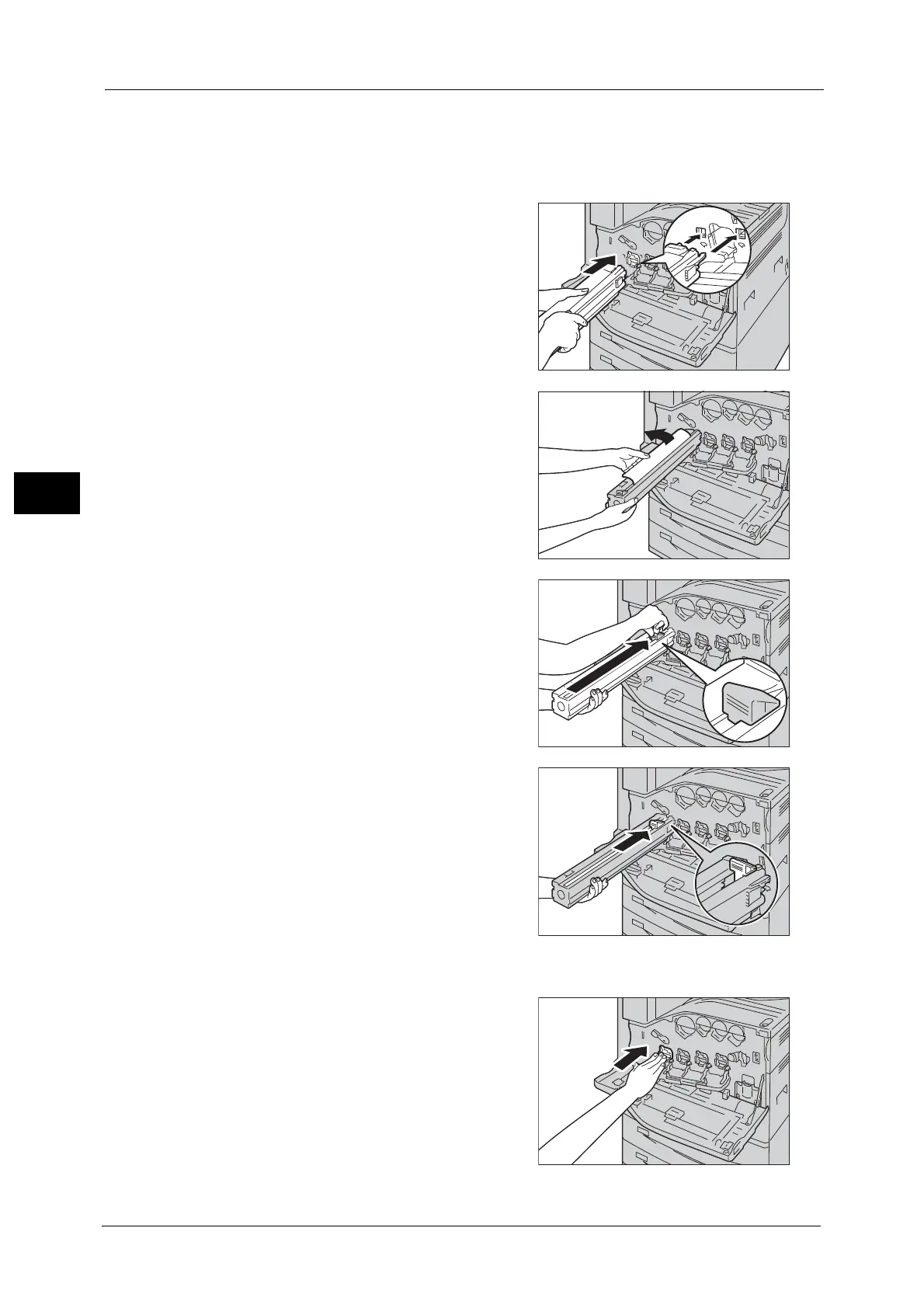

6 Take the new drum cartridge out of the box, and insert the used drum cartridge into the
supplied plastic bag and place it into the box.
Important • Do not place the new drum cartridge in an upright position.
• Return the old drum cartridge to our Customer Support Center.
7 Insert the front two points of the new drum
cartridge with protective cover in the holes on
the machine.
Note • Insert the two points as shown in the
illustration on the right.
8 Pull out the black paper while holding the
protective cover with one hand. While doing so,
keep the two points inserted in the holes.
9 Grasp the tab on top of the cartridge and slide
it toward the machine while holding the
protective cover with one hand.
10 Slide the tab until it stops.
11 Carefully remove the protective cover.
12 Push the drum cartridge straight in the housing
until it stops.
Note • Place the protective cover into the box.
