2 Product Overview
38
Product Overview
2

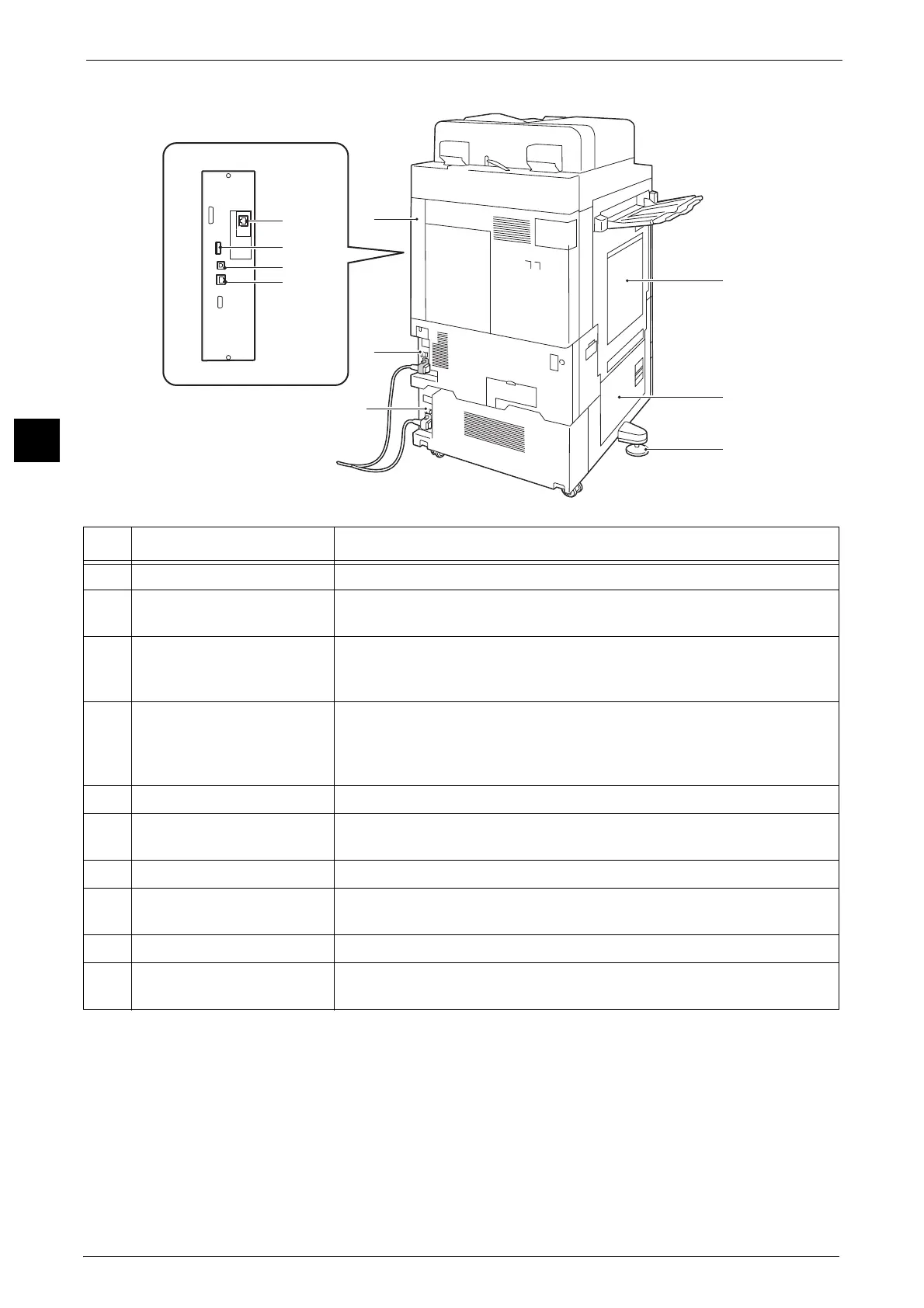

Left side and rear views of the machine
No. Component Function
1 Upper left cover Open this cover by pressing the release lever to clear paper jams.
2 Bottom left cover Open this cover to clear paper jams. When Tray 6 is installed, open this cover
after moving Tray 6 to the left.
3 Adjusting foot Prevents the machine from toppling over. Move the machine to its
installation site and then rotate this adjuster in clockwise direction until it
touches a floor.
4 RESET button
(ApeosPort-VI C7771/C6671,
DocuCentre-VI C7771/
C6671 only)
Automatically switches the machine off when a current leakage is detected.
5 RESET button Automatically switches the machine off when a current leakage is detected.
6 Rear right cover Make sure that this cover is attached. Open this cover when connecting an
interface cable.
7 Ethernet interface connector Connects to a network cable.
8 USB 3.0 interface connector
(optional)
Connects to the cable of the Memory Card Reader or a USB memory device.
9 USB 2.0 interface connector Connects to the cable of the Memory Card Reader or a USB memory device.
10 Secondary Ethernet
connector (optional)
Connects to a network cable. Can be used as Gigabit Ethernet interface
connector.
This view varies depending on
the model you use.
