Replacing Consumables
183
Maintenance
11

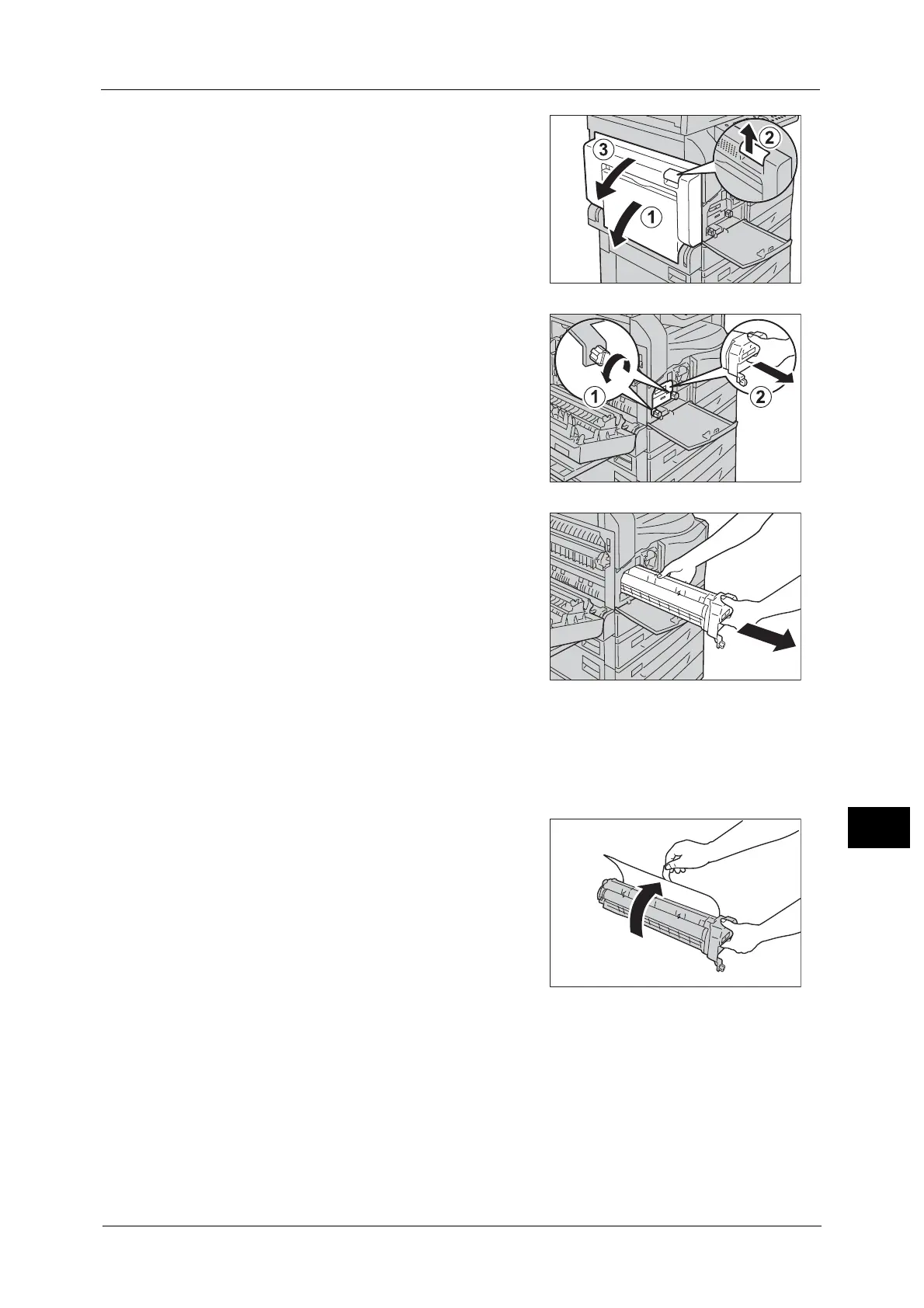

2 Open Tray 5 (1), and then while lifting up the
release lever (2), gently open the left cover (3).
3 Loosen the two screws counterclockwise (1), and
slowly slide out the drum cartridge (2).
4 Hold the bottom of the drum cartridge as shown
in the illustration, and gently pull out the drum
cartridge from the machine.
5 Take the new drum cartridge out of the box, and insert the used drum cartridge into the
supplied plastic bag and place it into the box.
Important • Do not place the new drum cartridge in an upright position.
• Return the used drum cartridge to your local Fuji Xerox representative.
6 Peel the protective sheet off the new drum
cartridge.
To Next Page
