2

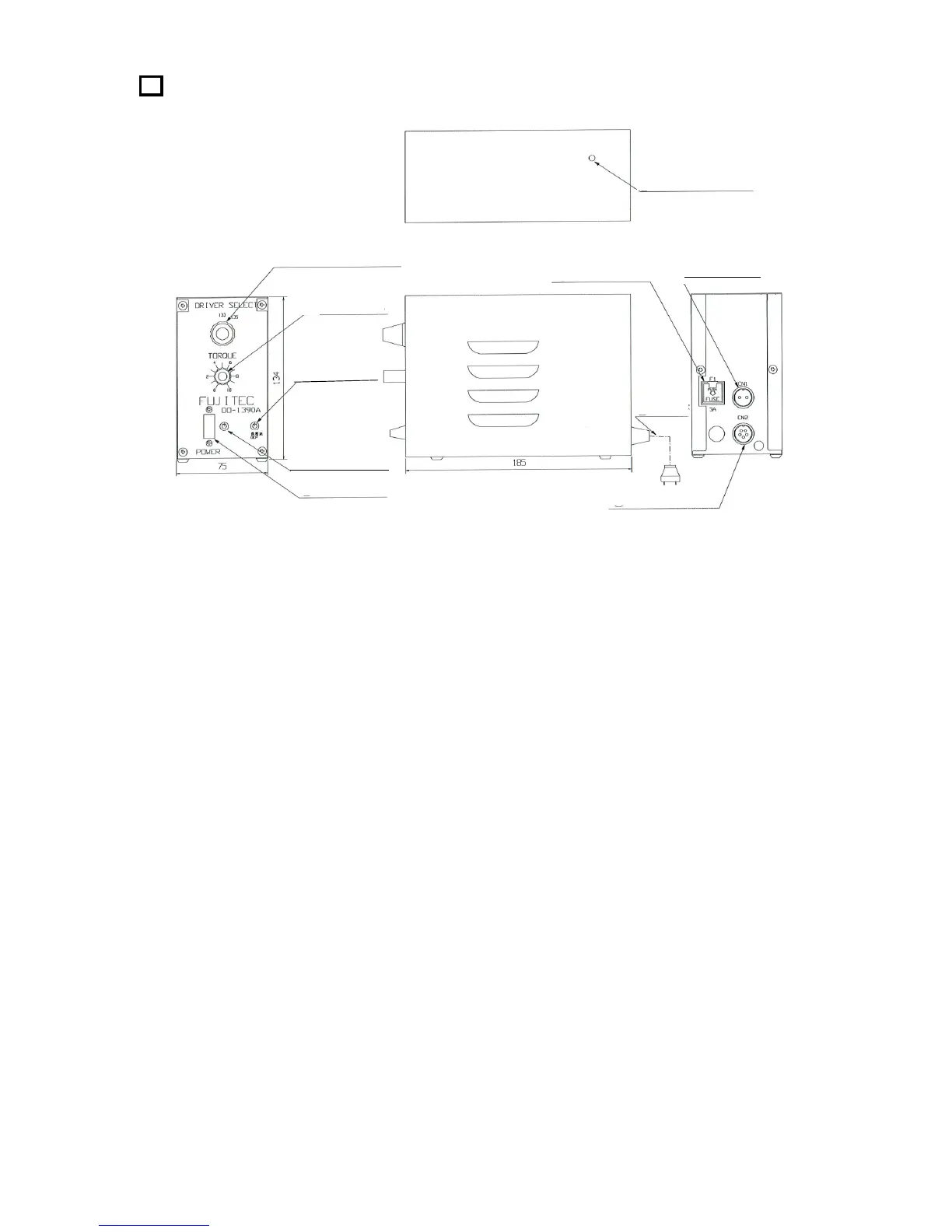

Controller（DO-13390A）For MO-1330･1350
①Screwdriver select switch
Set to screwdriver model No.
②Torque volume
Used to change torque.
③Power switch（POWER）
Used to ON/OFF power of control unit.
④Power indicator
Light while power control unit is ON.
⑤Overcurrent indicator lamp（OCP）
⑥Metal outlet（2P）
Used to connect to screwdriver.
Panel side ：PLT-162-R Harness side ： PLT-162-P
⑦Fuse holder （3A）
Used to protect and replace fuse.
⑧Metal outlet（5P）
Connecter to input/output signals.
Panel side ：PLT-165-R Harness side ： PLT-165-P
⑨Power cord
Plugged into AC100V power source.
⑩Adjustment at motor lock time
Can it tighten and the following maintenance officer be adjusted.
⑩Adjustment
at motor lock
⑥ Metal outlet
⑦Fuse holder
⑨
Power
⑧Metal outlet
③Power switch
④Power indicator
⑤
Overcurrent
indicator
①Screw driver select switch
②Torque
volume
－3－
