１．Parts Identification

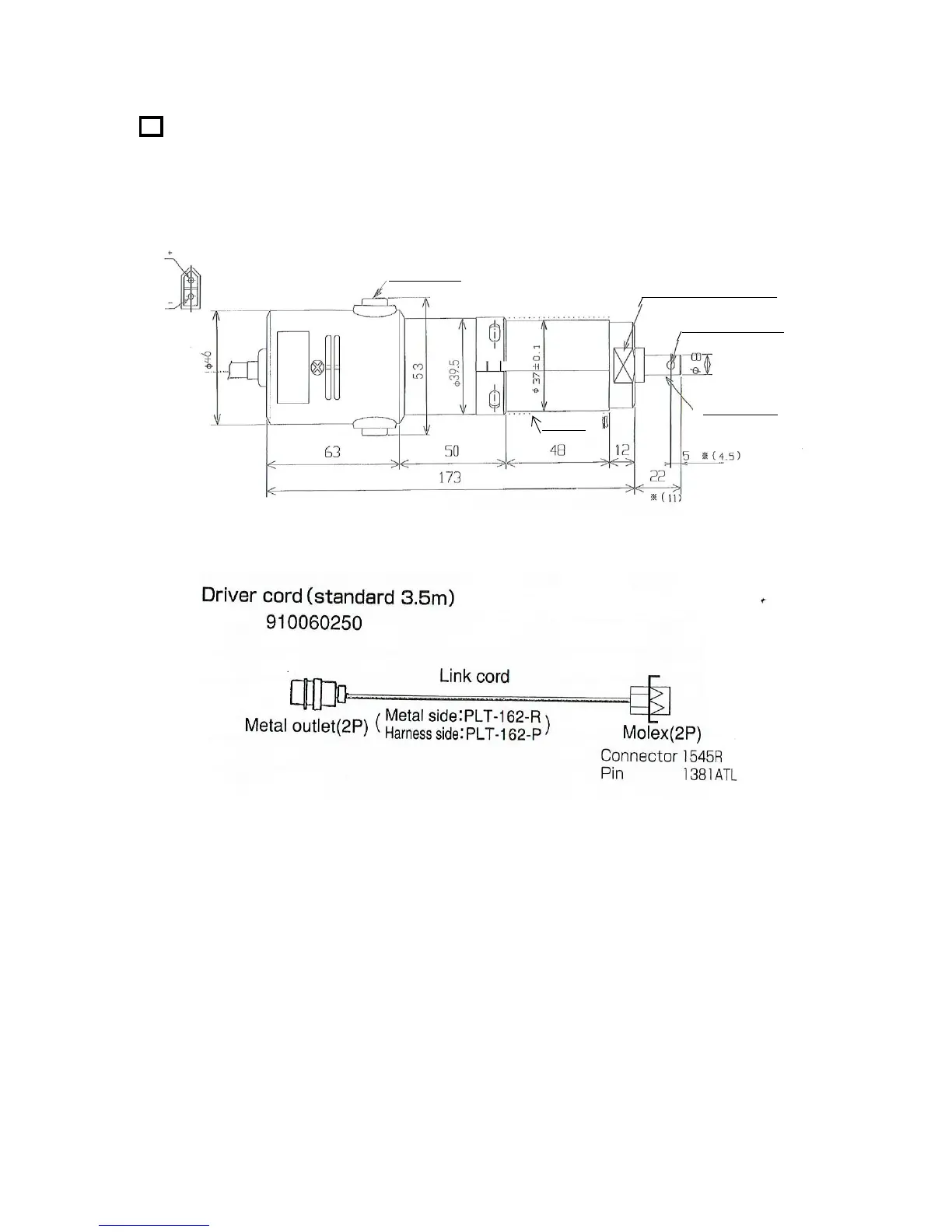

1 Screwdriver unit（MO-1330､MO-1350A）
Note）※（ ）The size is applied to special type MO-1330.
①Screwdriver cord ９１００６０２５０（optional）
Transmits input / output signals.
driver side ： surgical knife connecter 1545R / surgical knife pin 1381TR
controller side ： metal outlet 2P PLT-162-R (panel side ： PLT-162-P)
②Brush cap
Fixes and protects brush. If turned clockwise,brush cap tightens; if turned counterclockwise, it loosens.
③Holder
Please tighten one-page driver's center of the gripper with 5～8 N.m.
④Output shaft
Transmits screwdriver rotationn to bit.
①
（CONNECTOR FOR DRIVER）
CONNECTOR（OSU） １５４５Ｐ
PIN （OSU） １３８０ＴＬ
Terminal
Spanner ( opposete 32mm )
② Brush Cap
④Output shaft
③Holder
※Output axis φ6
Specification
φ3.5H7 ※（φ3H7）
①
