Fujitec MO-1330 - Controller（Do-1390 A); Controller（Do-1390 A-2)

3

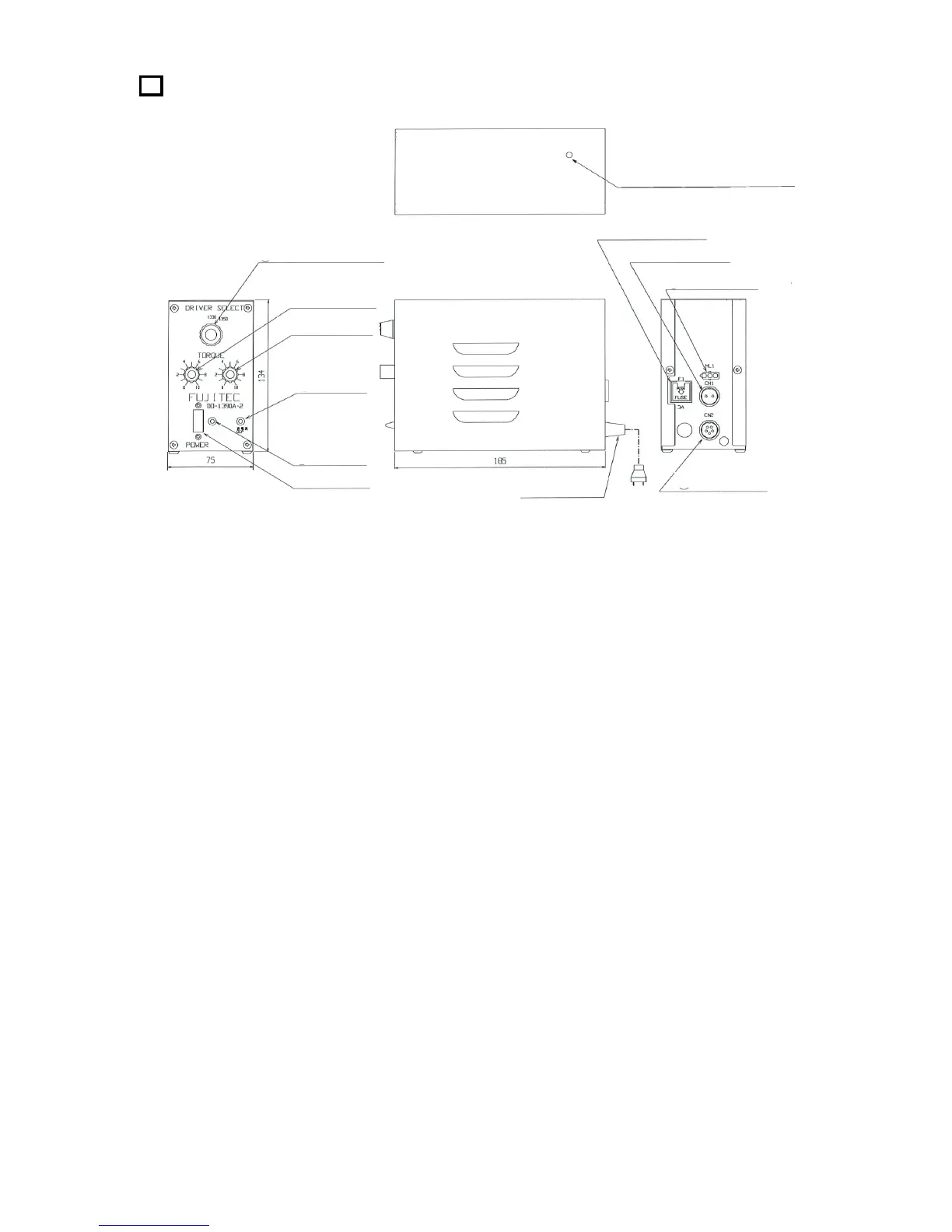

Controller（DO-1390A-2） For MO-1330・1350
①Screwdriver select switch
Set to screwdriver model No.
②Torque volume 1
Use to change torque.
③Torque volume ２
Use to change torque.
④Power switch（POWER）
Use to turn ON / OFF power of control unit.
⑤Power indicator
Light while power of control unit is ON.
⑥Overcurrent indicator lamp（OCP）
⑦Torpue change switch connector（3P）
Torque 1 and torque 2 can be switched.
⑧Metal outlet（2P）
Connected to input/output signals.
Panel side ： PLT-162-R Harness side ： PLT-162-P
⑨Fuse holder（3A）
Used to protect and replace fuse.
⑩Metal outlet（5P）
Connected to input/output signals.
Panel side ： PLT-165-R Harness side ： PLT-165-P
⑪Power cord
Plugged into AC100V power source.
⑫Adjustment at motor lock time
Can it tighten and the following maintenance officer be adjusted.
⑫Adjustment at motor lock
⑨Fuse holder
⑧ Metal outlet(2p)
⑦Torque switch
⑩Metal outlet
⑪Power cord
①Screwdriver select switch
②Torque volume1
⑥Overcurrent
indicator lamp
③Torque volume2
④Power switch
⑤Power
indicator
－4－
