2．Precautions for Use
① Do not drop screwdriver unit and control unit or hit them against other substances.
② Keep the screwdriver free form water and oil.
③ Do not operate screwdriver select switch while screwdriver is working.
④ Never short-circuit screwdriver output terminal.
⑤ Be sure to perform daily inspection and maintenance. If any trouble should occur, please repair the unit
⑥ No modification is allowed.To ensure safe use, never provide screwdriver unit and controller with any
modification.
3．Preparation before Use
Installation requirements
Do not install the unit near Heating element.
Do not subject it to direct sunrays.

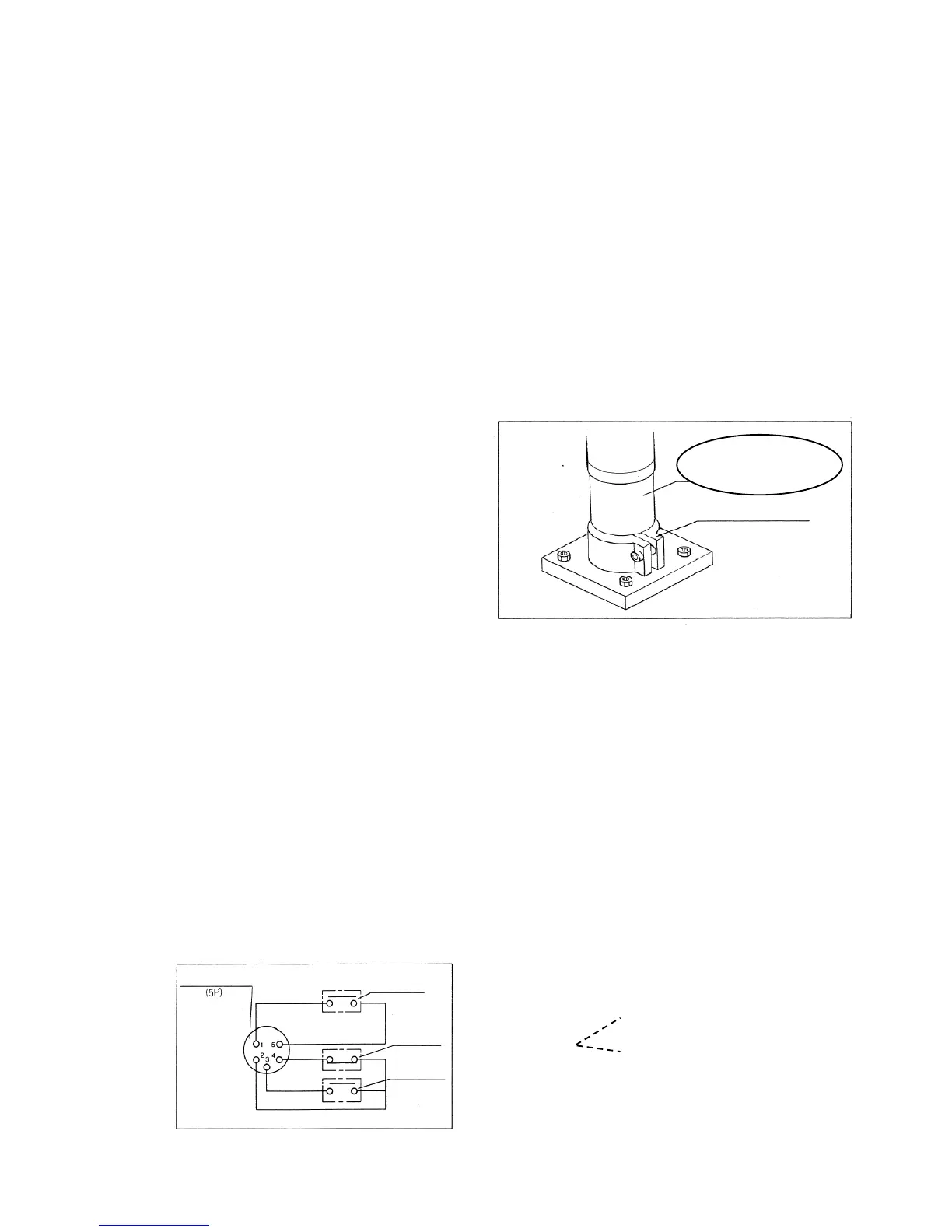

② Fixing screwdriver unit
Fixing screwdriver unit to screwdriver holder
※Use split type screwdriver holder.
Check that power switch on controller is OFF.
② Plug power cord on the back of controller into AC100V power supply outlet.
③ Plug screwdriver cord into metal outlet (2P) on the back of controller.
【Caution】Be sure to use exclusive controller.
※DO-1390A,DO-1390A-2 ： 2P metal outlet (For MO-1330・1350)
④ Connect input signal (start signal ) to input/output terminal (metal outlet ,5P )
on the back of controller. Input signal must be no-voltage contact signal.
【Caution】If several-units are used at a time each input signal must be provided through respective contact.
⑤ Complete signal can be obtained through input/output terminal.
Load capacity for complate signal must be kept below AC100V 0.1A.
⑥Ｉnput/output signal connection diagram
Input signal terminal (1-5)
Output signal terminal (2-3)
Input signal terminal (2-4)
Metal outlet (5P)
Panel side : PLT-165-R
Harness side : PLT-165-P
Please tighten one-page
driver's center of the gripper
with 5～8 N.m
