Fujitsu Siemens Computers D1520 User Manual

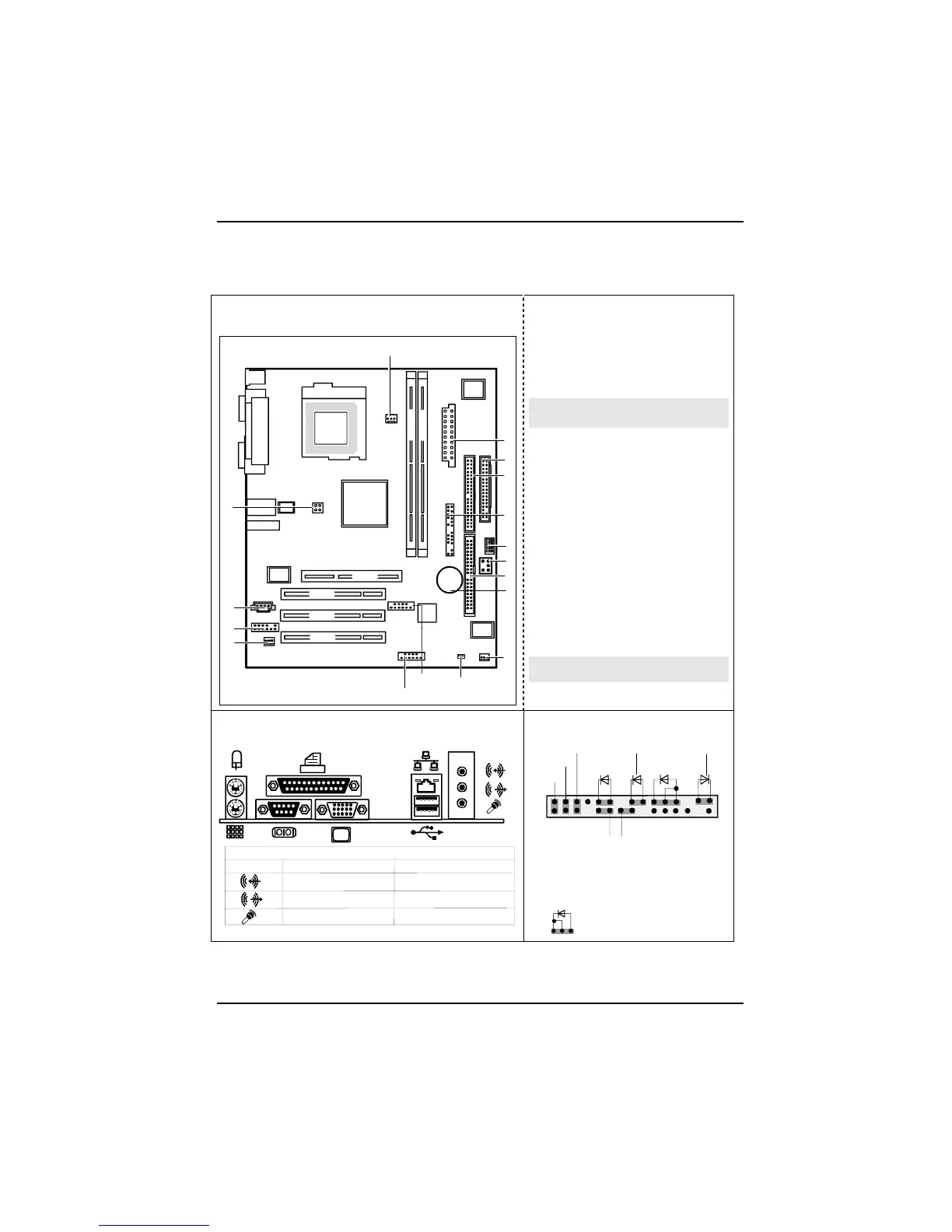

Übersicht/Overview Mainboard D1520
Interne Anschlüsse und Steckplätze / Internal
connectors and slots
DIMM 2
AGP
DIMM 1
PCI 1
PCI 2
PCI 3
14
15
1
2
3
4
5
10
9
13
12
11
17
16
6
8
CPU
Pentium 4
7
1 = Stromversorgung / Power
Supply
2 = Diskettenlaufwerk / Floppy disk
drive
3 = IDE-Laufwerke 3/4 / IDE-drives
3/4
4 = Bedienfeld / Front panel
5 = Schalter / Switch
6 = Steckbrücken / Jumper
7 = IDE-Laufwerke 1/2 / IDE-drives
1/2
8 = Batterie / Battery
9 = Lüfter 2 / Fan 2
10 = Power On LED II
11 = USB C/D
12 = USB E/F
13 = S/PDIF Anschluss / S/PDIF
connector
14 = Audio-Bedienfeld / Audio front
panel
15 = CD-Audio in
16 = Stromversorgung Prozessor /
Processor power supply
17 = Lüfter 1 / Fan 1
Optionale Komponenten / Optional
components
Externe Anschlüsse / External connectors
LAN
AUDIO
Center / Low
Front
Surround
Mic In
Line Out
Line In
Umschaltbar durch Treiber / Switchable via driver
Standard 6-channel
Bedienfeld / Front panel
1) Cable is not included in the delivery scope.
2) The same interface
3) 2pin or 3pin connector possible
1
2
HD-LED
1)
Power On/Off
SCSI LED Input
2)1)
1)
Sleep
Reset
1)
Power On
LED
1) 3)
Sleep LED
Message LED
1)
PowerOn LED II
3)
1)
1
3
A26361-D1520-Z120-1-6319 Umschlag/Cover
