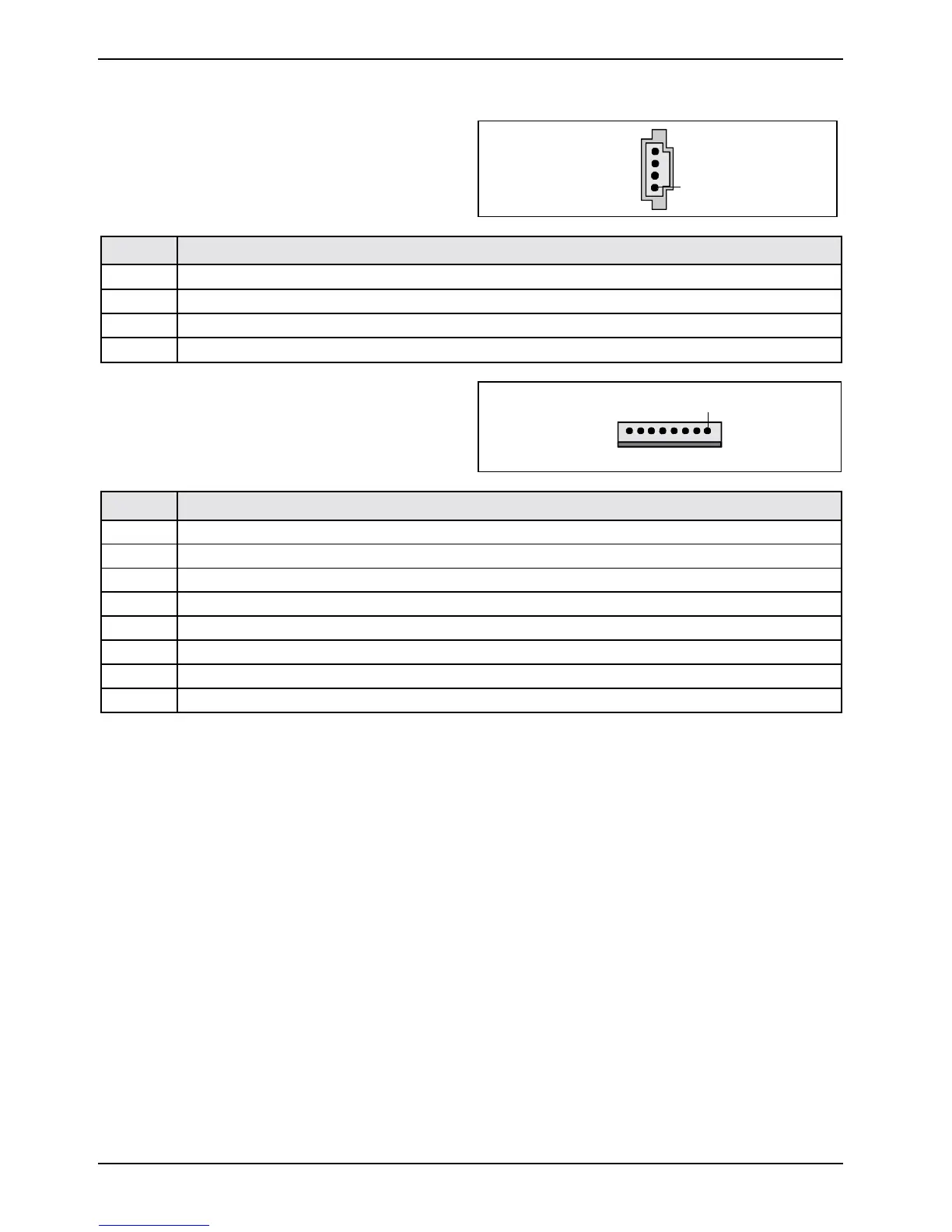

Interfaces and connectors
10 - English A26361-D1534-Z120-2-7419
CD-ROM audio
1
Pin Signal
1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input
Power control (system monitoring)
1
Pin Signal
1 AC Outlet (high asserted)
2 PS FAN Control (PS FAN C max. 3 mA)
3 Reserved
4 PS FAN Sense
5SMB CLK
6SMB DATA
7 VCC EEPROM (+3.3 V)
8GND
