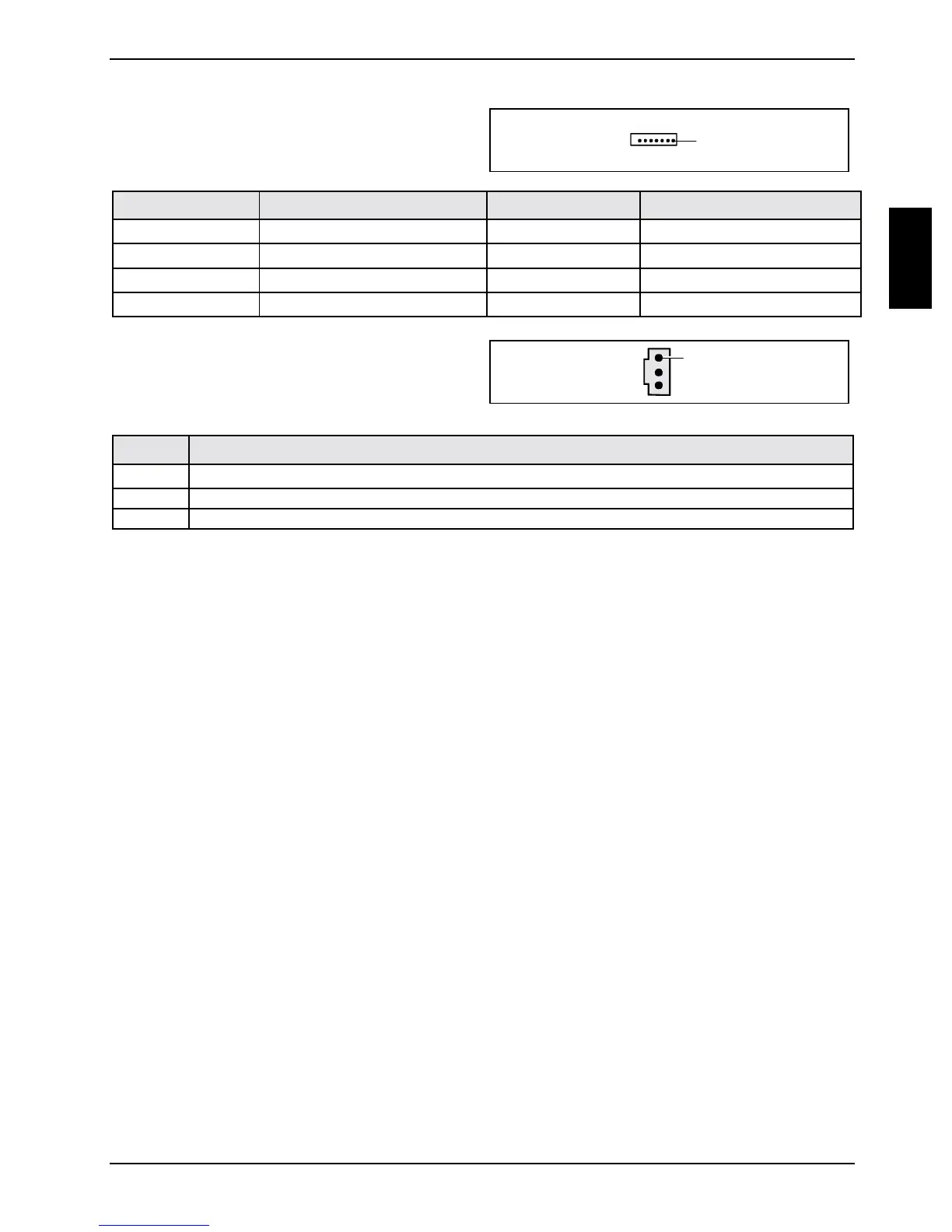

Interfaces and connectors
A26361-D1534-Z120-2-7419 English - 11
Serial ATA (internal)
1
Pin Signal Pin Signal
1 GND 2 Transmit data positive
3 Transmit data negative 4 GND
5 Receive data negative 6 Receive data positive
7GND 8 Key
Audio S/PDIF (3-pin)
1
Pin Signal
1GND
2 SPDIF out
3GND
