Fujitsu Siemens Computers SCENICVIEW P17-2 User Manual

SCENICVIEW P17-2 / P19-2 / P19-2P / P20-2 / P20-2S
A26361-K983-Z120-1-7619, edition 6 27

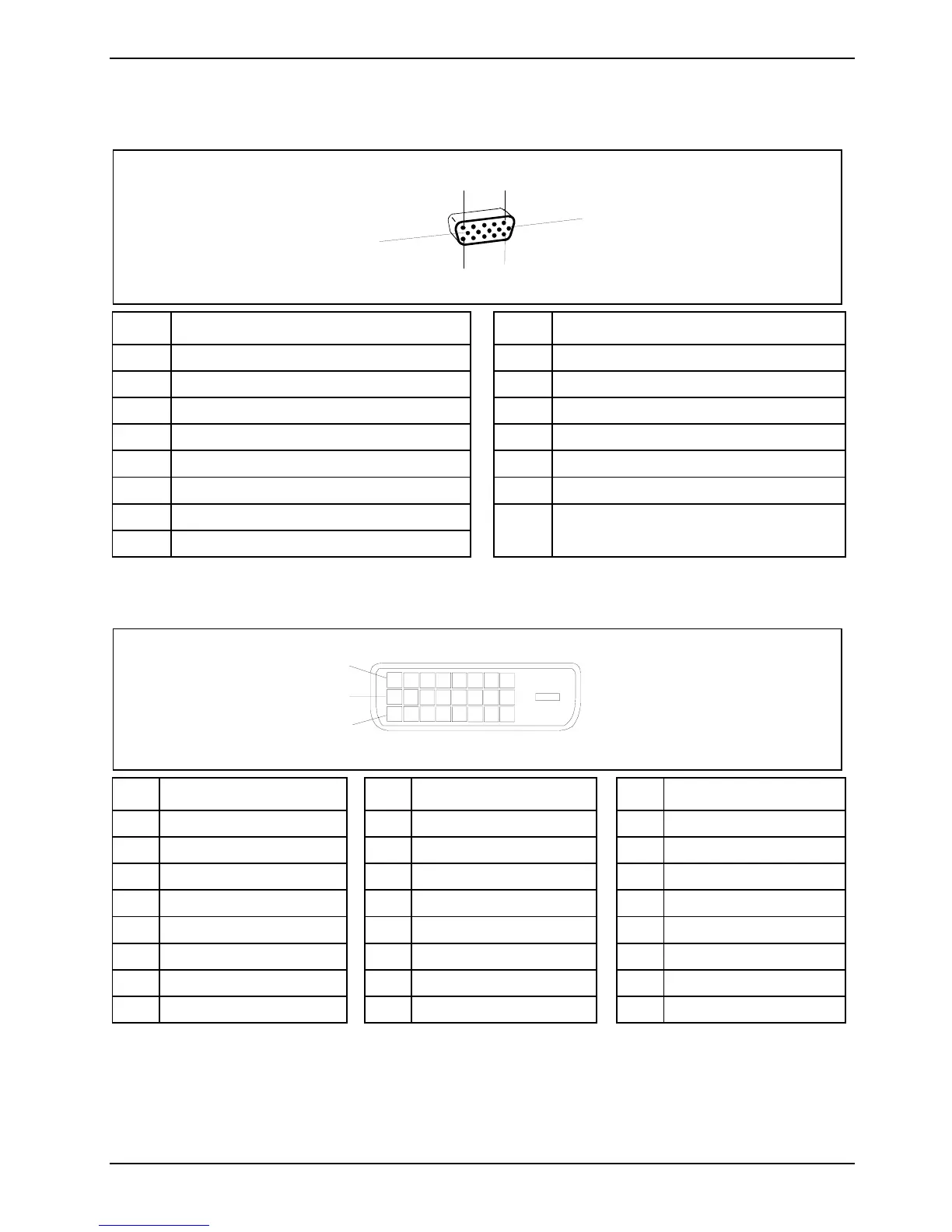

Pin assignment D-SUB
1
5
6
10
11
15
Pin Meaning Pin Meaning
1 Video input red 9 +5 V (DDC)
2 Video input green 10 Sync. earth
3 Video input blue 11 Earth
4 Earth 12 DDC-Data
5 Earth 13 H. sync
6 Red video earth 14 V. sync
7 Green video earth 15 DDC Clock
8 Blue video earth
Monitor port DVI-D
1
9
17
Pin Meaning Pin Meaning Pin Meaning
1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data0-
2 TMDS Data2+ 10 TMDS Data1+ 18 TMDS Data0+
3 TMDS Data 2/4 Shield 11 TMDS Data 1/3 Shield 19 TMDS Data 0/5 Shield
4 not connected 12 not connected 20 not connected
5 not connected 13 not connected 21 not connected
6 DDC Clock 14 +5V Power 22 TMDS Clock Shield
7 DDC Data 15 Earth 23 TMDS Clock+
8 Analogue Vertical Sync 16 Hot Plug Detect 24 TMDS Clock-
