¢ Models: AOUH30LUAS1 and AOUH36LUAS1

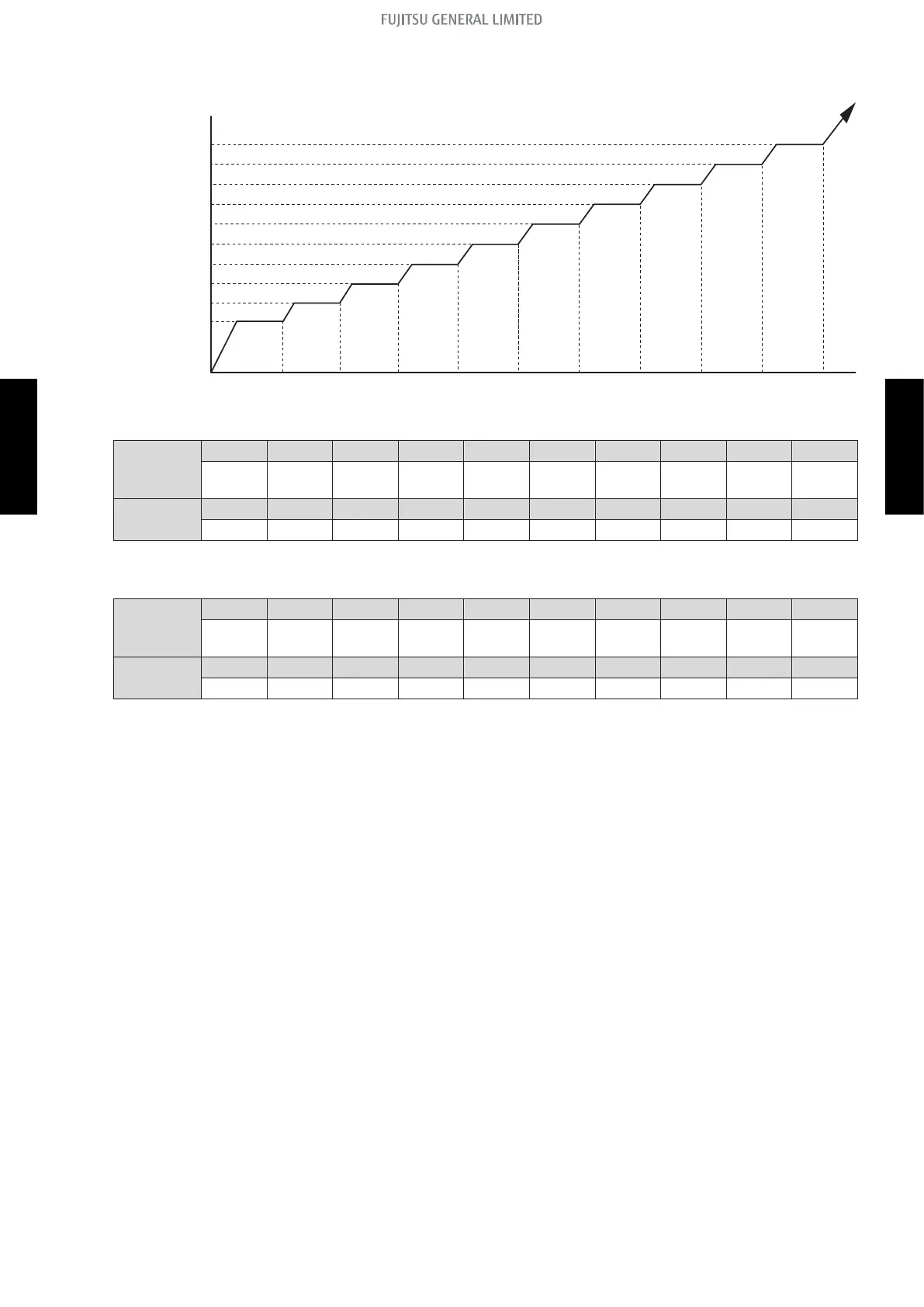

Rotation number of compressor soon after starting is controlled as below.
Time 1
Time 2 Time 3
Time 4
Time 5
Time 6
Time 7
Time 8
Rotation numbery I
Rotation number II
Rotation number III
Rotation number IV
Rotation number V
Rotation number VI
Rotation number VII
Rotation number VIII
Rotation number IX
Rotation number X
Time 9
Time 10
• Normal operation
Rotation
number
(rps)
I II III IV V VI VII VIII I↓ ↓
41 46 51 57 60 72 81 91 100 110
Time (sec)
1 2 3 4 5 6 7 8 9 10
60 120 180 240 360 420 480 540 600 660
• Special operation
Rotation
number
(rps)
I II III IV V VI VII VIII I↓ ↓
41 46 51 57 60 72 81 91 100 110
Time (sec)
1 2 3 4 5 6 7 8 9 10
120 185 245 305 605 665 725 785 845 1,000
NOTES:
• Normal operation:
– Cooling and dry mode
• Below 3 hours from the compressor stop and the compressor thermistor ≥ 59 °F (15 °C)
• After defrost operation
– Other than when the compressor starts for the first time since the breaker turns on
• Special operation:
– Other than the normal operation condition
– →hen the compressor starts for the first time since the breaker turns on
1-4. Rotation number of compressor at normal start-up - (04-7) - 1. Rotation number control of compressor
